SWI Citroen/Fiat/Opel/Peugeot VP1/VP2/Daiichi Multilead (42sfa019)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

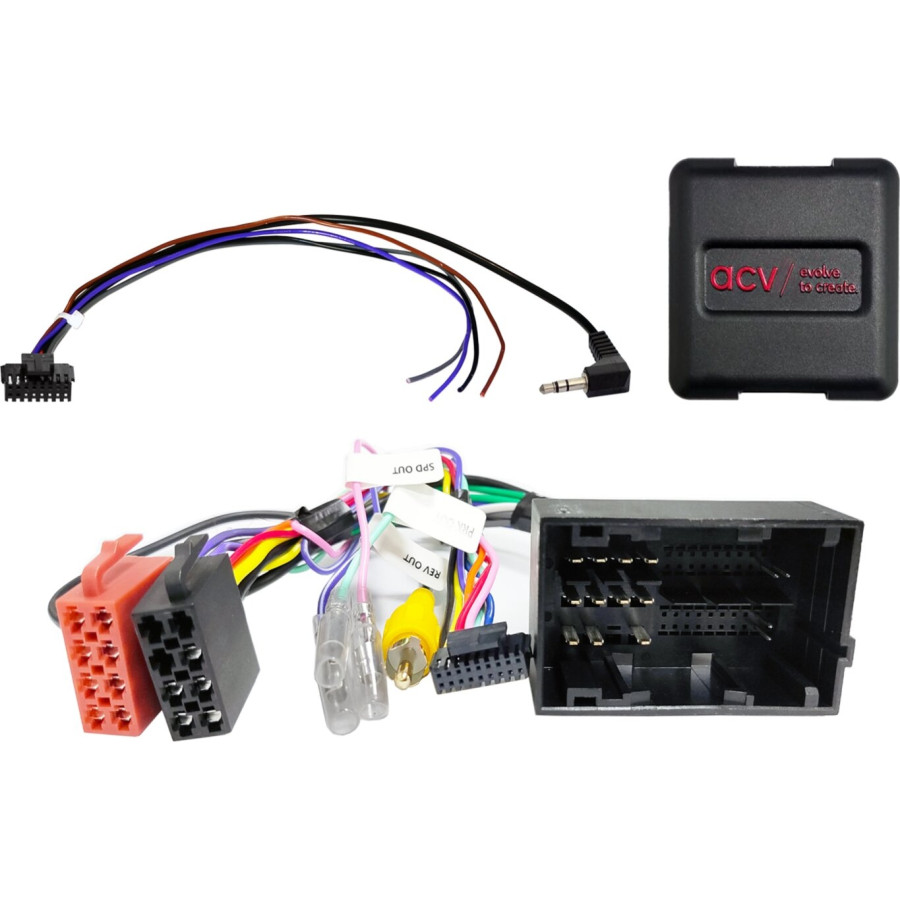

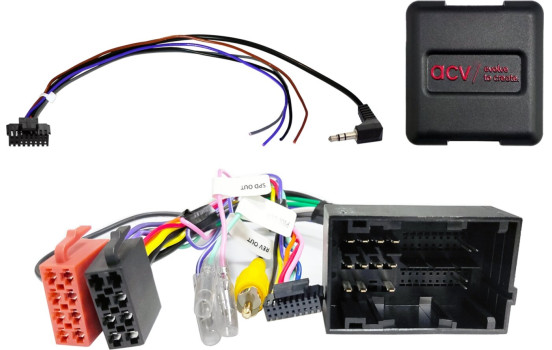

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 52-pin Fiat plug
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM rear view camera > Cinch(m) yellow rear view camera input

Vehicles with Continental 250VP1 / 250VP2 OEM device
Vehicles with UConnect OEM device
Vehicles with Daiichi OEM device*

Steering wheel remote control buttons:
2 x 4 radio functions Front steering wheel

DIP switch settings for the aftermarket device manufacturer (see BDA)

Vehicles with trip meter error display after installation > Position dip switch under printed circuit board:
Adjust dip switch position without voltage

Dip switch 1 on / Dip switch 2 off / open or close white cable bridge
Dip switch 1 off / Dip switch 2 on / open or close white cable bridge

DIP switch 6 on > 250VP1 OEM HU
DIP switch 6 on > 250VP2 OEM HU
Open White Cable Bridge > Blue&Me OEM Function

Dip switch 1 off / Dip switch 2 off / Open white jumper > Daiichi OEM device

After CAN bus switching, set a quiet state

Vehicles with persistent error display and other software package not compatible

Vehicle settings on-board computer not supported**
High beam assistant not supported
Driver assistance systems not supported
Date/time setting not supported**

Suitable for the following vehicles:

Lemon
Citroen Jumper (250) 05/2014 - 10/2022*
Citroen Jumper (250) 10/2022 - 06/2024*
Citroën e-Jumper (259 10/2021 - 06/2024*
Citroën Relay (250) 2006- 2024*

Fiat
Fiat 500 (ZAF 312) 07/2016 - 2023
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat Doblo (ZAF 263) 01/2015 - 06/2022
Fiat Ducato (ZFA 250) 05/2014 - 11/2021*

Opel
Opel Movano Cargo C (Y) 10/2021 - 01/2024*
Opel Movano Cargo C (Y) 10/2021 - 01/2024*

Peugeot
Peugeot Boxer (Y) 09/2014 - 12/2019*
Peugeot Boxer (Y) 08/2018 - 2024*
Peugeot e-Boxer (Y) 10/2021 - 2024*

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with Daiichi OEM device Wiring harness black wires > Remove adapter wiring harness from driver side radio slot
*Vehicles with direct wired OEM Daiichi device colored cables not compatible > Item: 42a-1094-018
**Info adapter on-board computer vehicle settings:
Info adapter Citroen/Fiat/Opel/Peugeot 52Pin Fiat VP1/VP2 > Item: 43uft01
