SWI Mercedes Benz Vito 2015->Audio 15 Quadlock Fakra

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

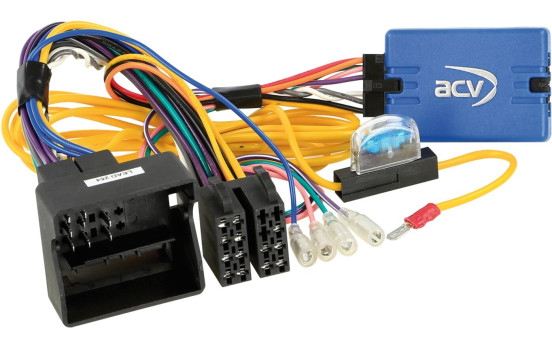

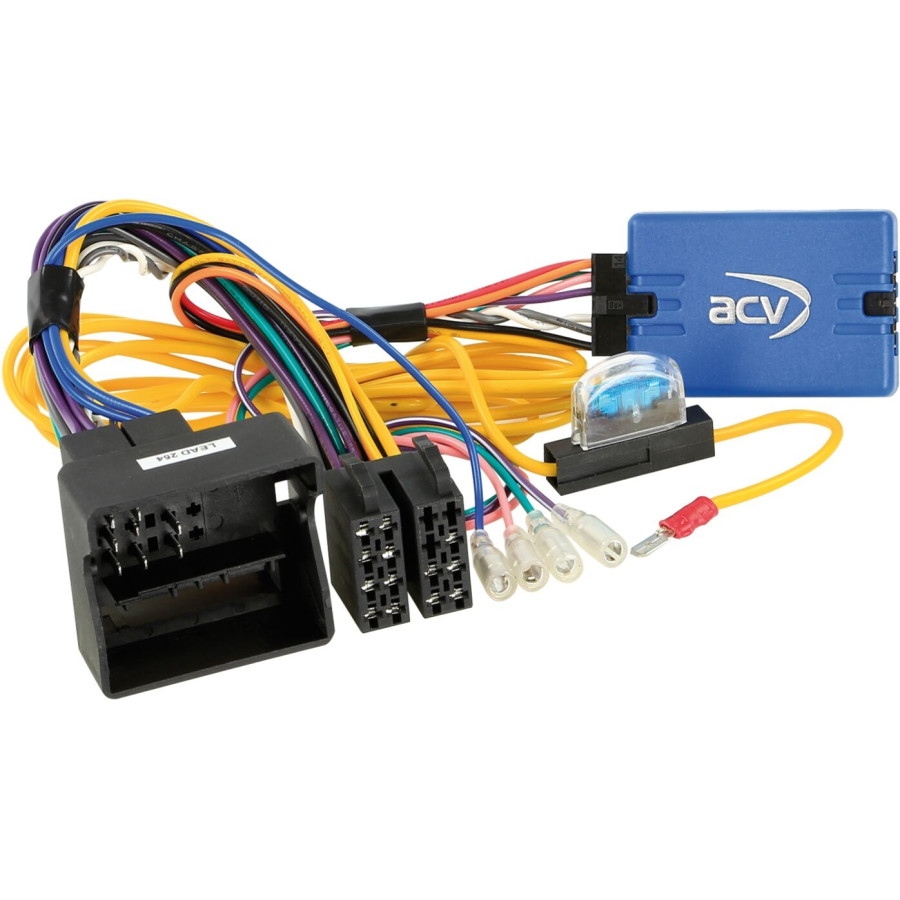

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Notes:

NB:

CAN bus

Connection: 40-pin Quadlock Mercedes plug
Connection: +12V continuous current yellow clamp 30 battery fused

Vehicles with OEM unit Audio 15 / Audio 40 / Audio 45
Vehicles with OEM unit Audio 10 only sound function supported
Vehicles with Pioneer OEM device > Pioneer Wiring Harness Removal
Vehicles with Garmin OEM device > OEM rear view camera not adjustable

Vehicles with OEM camera:
Rear view camera adapter Fakra(m)>Cinch(m) OEM camera > Article: 771000-2011

Vehicles with E-Call:
E-Call maintenance Mercedes Sprinter/V-Class > Article: 1424-27-0

Reverse gear signal not supported:
Reversing signal > +12V driver side A-pillar 1.5mm white/blue

Suitable for the following vehicles:

Mercedes Vito (W447) 10/2014 - 02/2019
Mercedes Vito (W447) 05/2019 - 2023

The following signals are available:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
pink: speed signal
green: ground GND handbrake signal

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote controlConnection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine jack: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidleadLFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktleadLFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahuleadLFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvcleadLFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultileadLFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Mercedes Benz Vito 2015-2021 (447)

---

Guarantee

2 years
