Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.1192.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.1192.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 610.1192.52 Zimmermann, Image 2

Product number: 0847045

Manufacturer number: 610.1192.52

EAN: 4250238752493

€ 84,15

Incl. VAT
View product specifications
Not available
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

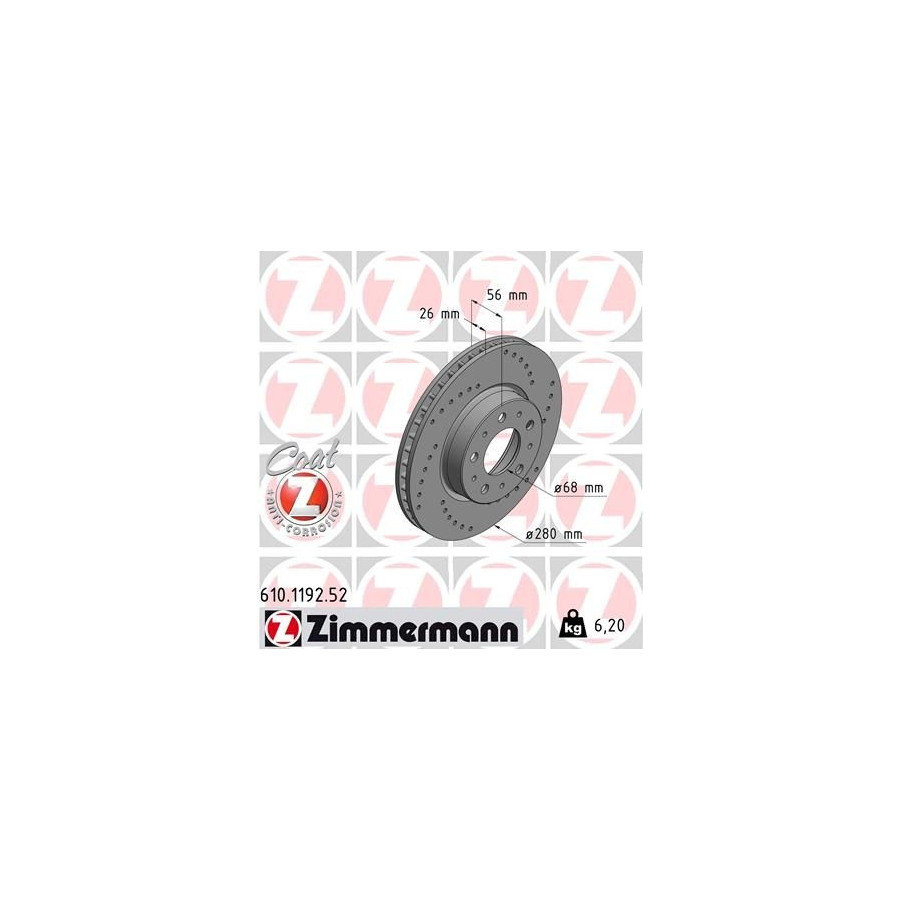

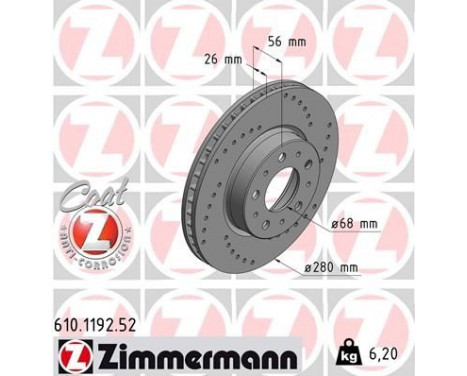

    Outer diameter [mm]280
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Brake Disc TypePerforated
    Centering Diameter [mm]68
    Hole Arrangement / Number10/5
    Inspection TagKBA 60872
    Guarantee2 years
    Height [mm]56
    Brake disc thickness (mm)26
    Minimum thickness (mm)24
    Weight [kg]6,2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 16094
    € 47,28
    AP 24282 E
    BLUE PRINT ADF124332
    € 32,11
    BORG & BECK BBD4940
    BOSCH 0 986 478 298
    € 44,10
    BRECO BS 8013
    BREMBO 09.5315.14
    € 43,17
    BREMSI CD6255V
    DON PCD15032
    EUROBRAKE 5815204831
    FEBI BILSTEIN 15089
    € 31,69
    FERODO DDF255
    € 51,11
    GIRLING 6016971
    HELLA 8DD 355 102-541
    HELLA PAGID 8DD 355 102-541
    JURID 561512JC
    MAXGEAR 19-2598SPORT
    MAXGEAR 19-2598
    MAXTECH 883412
    Manufacturer Manufacturer number Price
    MEYLE 515 521 5002
    € 43,01
    MINTEX MDC736
    NK 204831
    OPEN PARTS BDA1611.20
    OPEN PARTS BDR1611.20
    OPTIMAL BS-3040
    OPTIMAL BS-3040C
    ROTINGER RT 2475-GL T9
    ROTINGER RT 2475
    ROTINGER RT 2475-GL T5
    ROTINGER RT 2475-GL T3
    ROTINGER RT 2475-GL T6
    ROTINGER RT 2475-GL
    SWAG 55 91 5089
    TEXTAR 92055400
    TRW DF1697
    € 41,25
    ZIMMERMANN 610.1192.20
    € 52,74
    ZIMMERMANN 610.1192.52 (this product)

  • Applicability

    VOLVO
    780
    780 (782) | 04.1986-07.1990 2.9 - 2849ccm, 147pk, 108kw - B 280 F
    940
    940 (944) | 08.1990-03.1995 2.0 - 1986ccm, 112pk, 82kw - B 200 F
    940 (944) | 08.1990-03.1995 2.0 - 1986ccm, 139pk, 102kw - B 204 FT
    940 (944) | 08.1990-03.1995 2.0 Turbo - 1986ccm, 155pk, 114kw - B 200 FT
    940 (944) | 08.1990-03.1995 2.3 - 2316ccm, 131pk, 96kw - B 230 FB, B 230 G
    940 (944) | 08.1990-03.1995 2.3 - 2316ccm, 116pk, 85kw - B 230 FD
    940 (944) | 08.1990-03.1995 2.3 - 2316ccm, 156pk, 114kw - B 234 F, B 234 G
    940 (944) | 08.1990-03.1995 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    940 (944) | 08.1990-03.1995 2.3 Turbo - 2316ccm, 190pk, 140kw - B 230 FT+
    940 (944) | 08.1990-03.1995 2.4 D - 2383ccm, 82pk, 60kw - D 24
    940 (944) | 08.1990-03.1995 2.4 TD Intercooler - 2383ccm, 122pk, 90kw - D 24 TIC
    940 (944) | 08.1990-03.1995 2.4 Turbo Diesel - 2383ccm, 109pk, 80kw - D 24 T
    940 Kombi
    940 Kombi (945) | 08.1990-07.1995 2.0 - 1986ccm, 112pk, 82kw - B 200 F
    940 Kombi (945) | 08.1990-07.1995 2.0 Turbo - 1986ccm, 155pk, 114kw - B 200 FT
    940 Kombi (945) | 08.1990-07.1995 2.3 - 2316ccm, 131pk, 96kw - B 230 FB
    940 Kombi (945) | 08.1990-07.1995 2.3 - 2316ccm, 116pk, 85kw - B 230 FD
    940 Kombi (945) | 08.1990-07.1995 2.3 - 2316ccm, 155pk, 114kw - B 234 F
    940 Kombi (945) | 08.1990-07.1995 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    940 Kombi (945) | 08.1990-07.1995 2.3 Turbo - 2316ccm, 190pk, 140kw - B 230 FT+
    940 Kombi (945) | 08.1990-07.1995 2.4 D - 2383ccm, 82pk, 60kw - D 24
    940 Kombi (945) | 08.1990-07.1995 2.4 TD Intercooler - 2383ccm, 122pk, 90kw - D 24 TIC
    940 Kombi (945) | 08.1990-07.1995 2.4 Turbo Diesel - 2383ccm, 109pk, 80kw - D 24 T
    940 Mk
    940 Mk II (944) | 08.1994-12.1998 2.0 Turbo - 1986ccm, 155pk, 114kw - B 200 FT
    940 Mk II (944) | 08.1994-12.1998 2.3 - 2316ccm, 131pk, 96kw - B 230 FB
    940 Mk II (944) | 08.1994-12.1998 2.3 - 2316ccm, 116pk, 85kw - B 230 FD
    940 Mk II (944) | 08.1994-12.1998 2.3 ti - 2316ccm, 135pk, 99kw - B 230 FK
    940 Mk II (944) | 08.1994-12.1998 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    940 Mk II (944) | 08.1994-12.1998 2.4 TD Interc. - 2383ccm, 122pk, 90kw - D 24 TIC
    940 Mk II Estate (945) | 08.1994-10.1998 2.0 Turbo - 1986ccm, 155pk, 114kw - B 200 FT
    940 Mk II Estate (945) | 08.1994-10.1998 2.3 - 2316ccm, 131pk, 96kw - B 230 FB
    940 Mk II Estate (945) | 08.1994-10.1998 2.3 - 2316ccm, 116pk, 85kw - B 230 FD
    940 Mk II Estate (945) | 08.1994-10.1998 2.3 ti - 2316ccm, 135pk, 99kw - B 230 FK
    940 Mk II Estate (945) | 08.1994-10.1998 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    940 Mk II Estate (945) | 08.1994-10.1998 2.3 Turbo - 2316ccm, 171pk, 126kw - B 230 FT
    940 Mk II Estate (945) | 08.1994-10.1998 2.4 TD Interc. - 2383ccm, 122pk, 90kw - D 24 TIC
    960
    960 (964) | 08.1990-07.1994 2.0 - 1986ccm, 140pk, 103kw - B 204 E
    960 (964) | 08.1990-07.1994 2.0 - 1986ccm, 190pk, 140kw - B 204 FT
    960 (964) | 08.1990-07.1994 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    960 (964) | 08.1990-07.1994 2.4 TD Interc. - 2383ccm, 115pk, 85kw - D 24 TIC
    960 (964) | 08.1990-07.1994 2.9 - 2922ccm, 204pk, 150kw - B 6304 F, B 6304 FS, B 6304 GS
    960 Kombi
    960 Kombi (965) | 08.1990-07.1994 2.0 - 1986ccm, 140pk, 103kw - B 204 E
    960 Kombi (965) | 08.1990-07.1994 2.0 - 1986ccm, 190pk, 140kw - B 204 FT
    960 Kombi (965) | 08.1990-07.1994 2.3 Turbo - 2316ccm, 165pk, 121kw - B 230 FT
    960 Kombi (965) | 08.1990-07.1994 2.4 TD Interc. - 2383ccm, 115pk, 85kw - D 24 TIC
    960 Kombi (965) | 08.1990-07.1994 2.9 - 2922ccm, 204pk, 150kw - B 6304 F, B 6304 S
    960 Mk
    960 Mk II (964) | 07.1994-12.1996 2.5 - 2473ccm, 170pk, 125kw - B 6254 S
    960 Mk II Estate (965) | 08.1994-12.1996 2.5 - 2473ccm, 170pk, 125kw - B 6254 S

  • Original part numbers

    3516 567.9 VOLVO
    6 848 902 VOLVO
    31 262 209 VOLVO

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
