2-DIN kit Ford Transit-Custom / Tourneo Custom

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Remark:

Mounting recess for radio display 172 mm x 98.5 mm

A replacement airbag indicator light for Ford panels (Part No.: 261114-03) may be required.
A card holder for Ford housings (Ford part number: 1832265) may be required.

Suitable for the following vehicles:

Ford Transit Custom (FAC/FDA) 08/2012 - 06/2016*
Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016*

Color: Phoenix Silver

Remark:

CAN bus

Connection: 24-pin Ford connector
Connection: AMP display connector > OEM display
Connection: OEM display plug > Interface
Connection: OEM AUX > Cinch(m) red/white

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display**
Vehicles with CD player under the monitor
Vehicles with SYNC > SYNC function not supported
Vehicles with OEM navigation > Interface function partially not compatible

Disable SYNC functions and BT before installation
SYNC emergency call function is disabled with BT function

Avoid interference with the vehicle settings on the display:

Turn off the retrofit device
Press the voice dial button for up to 2 seconds to access the settings menu
Only perform settings as described in the BDA

In case of malfunctions in the setting mode:

Reset after CAN bus standstill

The display connection may need to be extended

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse gear signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

PDC rear supported
Warning sounds supported
Vehicle settings supported

*Vehicles with Euro5 emission standard
*Vehicles with Euro6 emission standard LFB Ford various vehicles 24Pin USB/AUX > Article: 42sfo018
**Vehicles without OEM display LFB Ford various vehicles 24Pin without display > Article: 42sfo015

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasonic lead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with LFB tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

Scope of delivery:

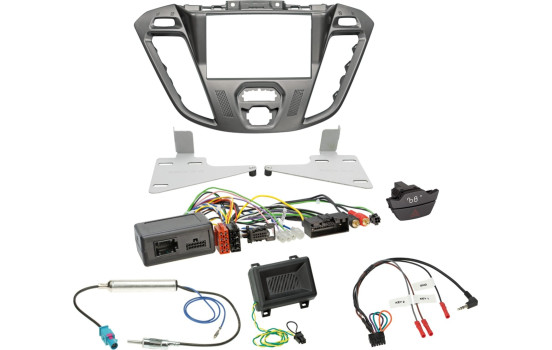

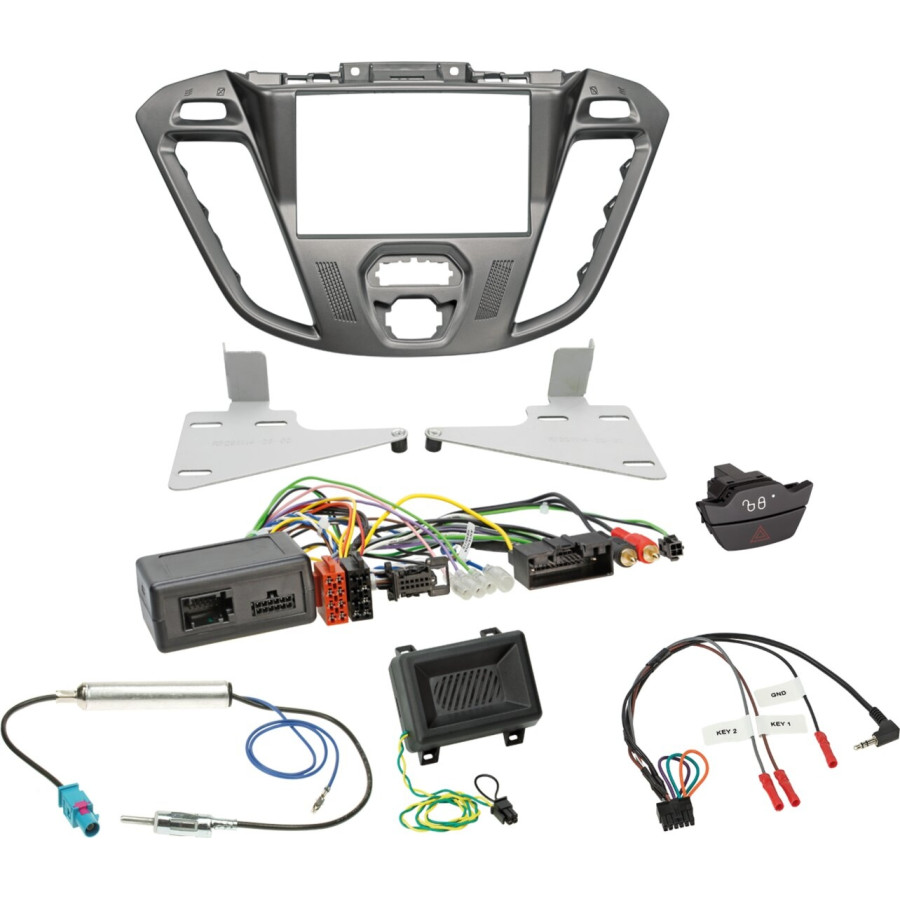

2-DIN radio panel Ford Custom Nebula > Article: 381114-26-1
LFB Ford various vehicles 24pin/display connector > Article: 42sfo008-0
LFB cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) 12V Phantom > Article: 1524-03-0
Ford alarm/central locking switch > Article: 261114-02-0

Suitable for:
Ford Transit Custom 2012 - 2016
Ford Transit Tourneo 2012 - 2016

---

Colour	Silver
application	Ready
Size	2-DIN
Guarantee	2 years
