2-DIN Kit Toyota Hilux 2011 >2016

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Toyota Hilux (N25 Facelift) 09/2011->2016

Color: black

Note SWI:

analog

Connection: 10 pin / 6 pin / 28 pin Toyota connector
Connection: OEM antenna > DIN(m)
Connection: OEM camera 24 pin > Cinch(m) yellow camera input
Connection: OEM camera adapter 16 pin > 24 pin
Connection: OEM USB > USB-A
Connection: OEM AUX > Cinch(m) red/white

blue: +12V antenna remote control
Camera supply voltage: +6V

Vehicles with Matsushita / Fujitsu Ten OEM device
Vehicles with/without reversing camera

Vehicles without 360° camera system*

Vehicles with different pin assignments:

To avoid malfunction or failure of the vehicle or retrofit device, check the pin assignment before connecting.

+12V reverse signal > if necessary, analog trunk lid +12V red 0.5mm 4-wire harness Check assignment with OEM device

Camera +6V power supply > check correct assignment with OEM device before installation
Video +/- > Check correct assignment with OEM device before installation
USB > check for correct assignment with OEM device before installation
AUX > check for correct assignment with OEM device before installation

*Vehicles with 360° OEM camera system SWI Toyota various vehicles 10Pin/6Pin/28Pin//24Pin > Item: 42sty019

The following signals are provided:

Steering wheel controls

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine jack: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with LFB tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

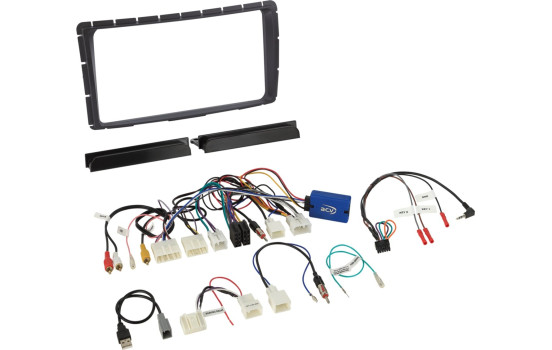

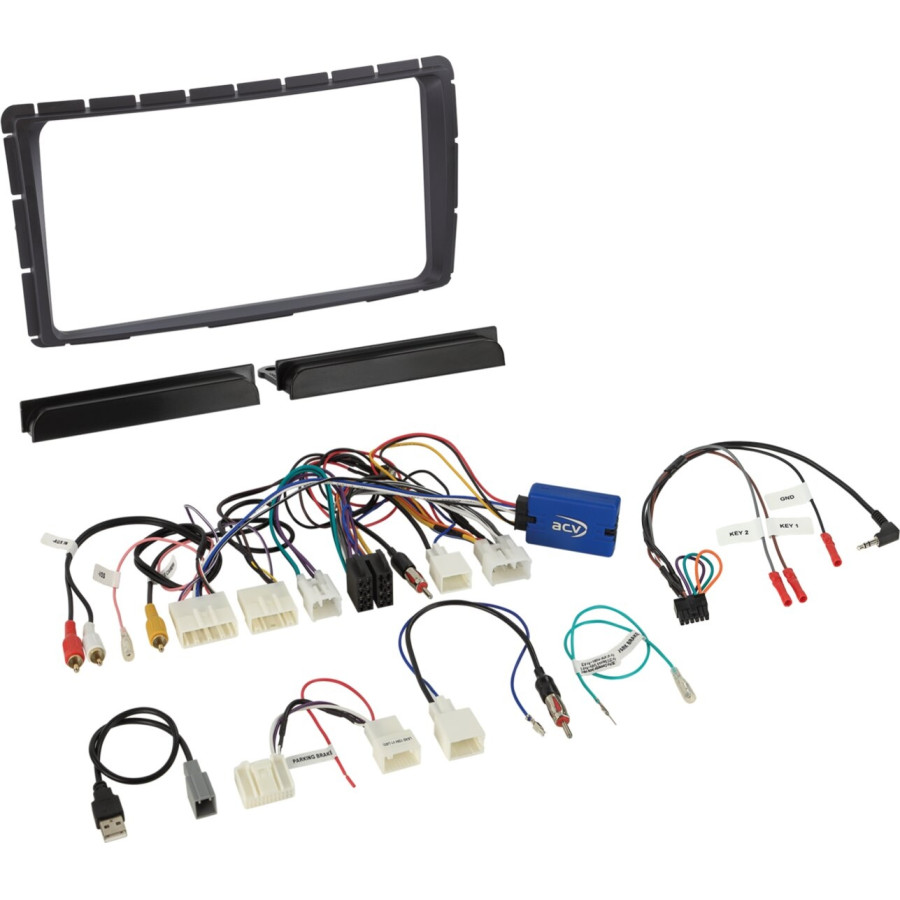

Scope of delivery:

2-DIN RB Toyota Hilux 2011-> black > Item: 381300-29
SWI Toyota various vehicles 28Pin USB/antenna/camera > Part: 42sty015-0
SWI cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0

Suitable for:
Toyota Hilux 2011-2016

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
