2-DIN kit with box Seat/VW 52Pin Quadlock LFB/Antenna

Radio panel 2-DIN with compartment with radio connection set steering wheel remote control Seat / VW

acv premium quality

Many car manufacturers install their own vehicle-specific radios, which are optically adapted to the center console.

Installation kits contain all the parts needed to replace an OEM device.

Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.

Please observe the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driver assistance systems.

Before installation, please check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and make sure they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:

CAN bus

Connection: 52 pin VAG Quadlock plug > Article: 42cx38
Connection: Steering wheel remote control > Article: 42arc100
Connection: OEM antenna Fakra Z(m)(Set) +12V > DIN(m)

Check dip switch position for retrofit device

Check the supply voltage of the OEM antenna before installation with OEM device:
Vehicles with +12V supply voltage OEM antenna

Vehicles with 8.5V supply voltage OEM antenna:
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V > Article: 1524-29

blue: +12V antenna remote control

Vehicle settings not supported
E-Call not supported

Vehicles with E-Call:
E-Call maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock > Item: 1424-28

Vehicles with reversing camera:
Reversing camera adapter OEM VW various vehicles MIB-PQ > Item: 771324-1037

Diagnostic LED:
blue flashing > CAN bus search
constant blue > CAN bus active
red > +12V ignition current active

Suitable for the following vehicles:

Seat
Seat Alhambra II (7N) 06/2016 - 08/2019

VW
VW Amarok (2H) 09/2016 - 07/2020*
VW Beetle (16) 06/2016 - 03/2018
VW Caddy IV (DU) 06/2015 - 09/2020
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019**

Color: black

Installation cut-out for radio display: 173 mm x 98.5 mm

The following signals are available:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

pink: +12V ignition terminal 15 1.5A max.
orange: +12V lighting terminal 58 0.1A max.
white: +12V reversing signal 1.5A max.
yellow/green yellow/red: speed signal

Steering wheel remote control

*Vehicles with OEM device including CD drive
**Vehicles without Composition Audio MIB Entry OEM device with Front AUX/SD/USB
**Vehicles with Composition Audio MIB Entry OEM device with AUX/SD/USB in front > Item: 42a-1324-001

Optional:

INBAY® storage compartment for 2-DIN radio housings screw mounting > Item: 241000-10-1

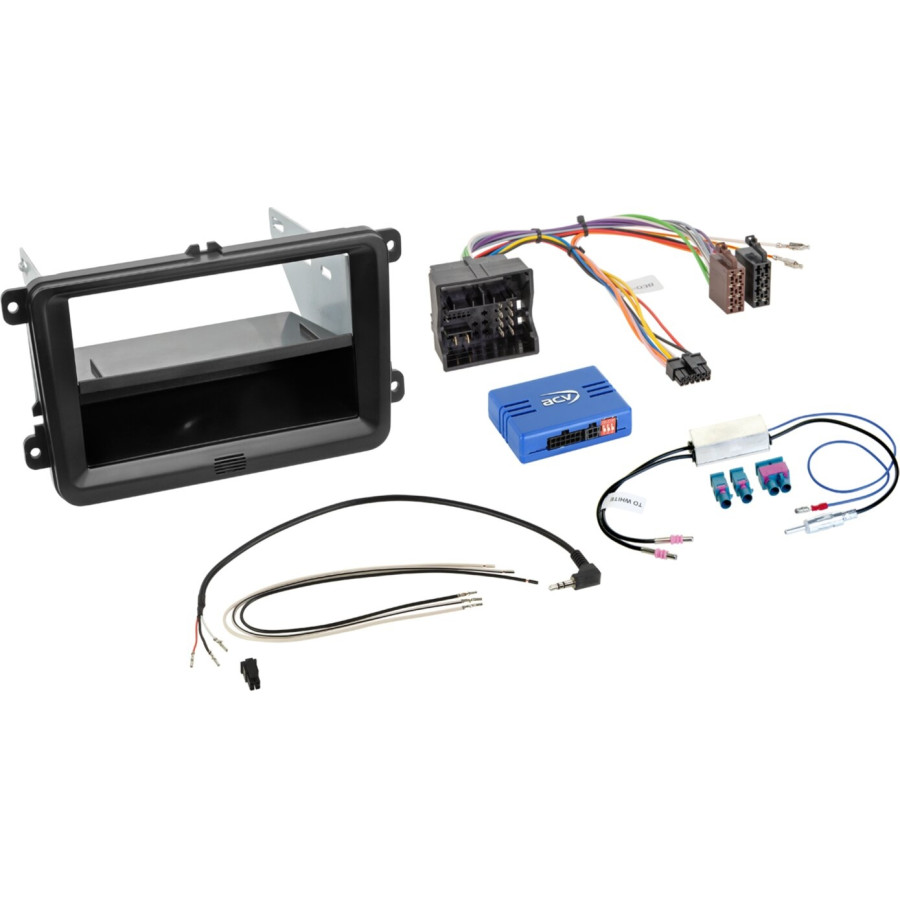

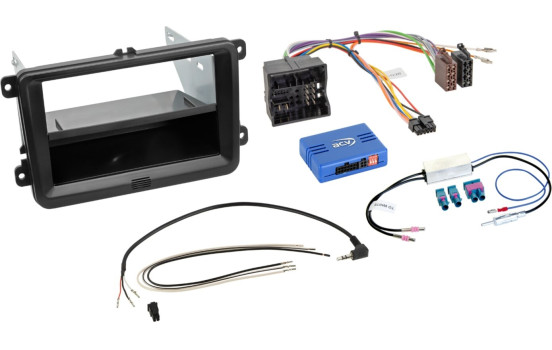

Scope of delivery:

2-DIN radio panel with storage compartment Seat/Skoda/VW black > Part: 281320-30-1
LFB Audi/MAN/Seat/Skoda/VW various vehicles 52Pin Quadlock > Part: 42a-1328-000
LFB cable 42a/42cx401 > Multilead various devices > Article: 42arc100
Antenna adapter Fakra(m)(Set)>DIN(m) 12V Phantom loose > Article: 1524-70-0

Suitable for:
Seat Alhambra 2016-2019
Volkswagen Amarok 2016-2020
Volkswagen Beetle 2016-2018
Volkswagen Caddy 2015-2020
Volkswagen Sharan 2015-2021
Volkswagen T6 Transporter 2015-2019
