SWI BMW 1-Series/ 3-Series/ 5-Series/ 6-Series / Z4/ X1 - Mini Cooper

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

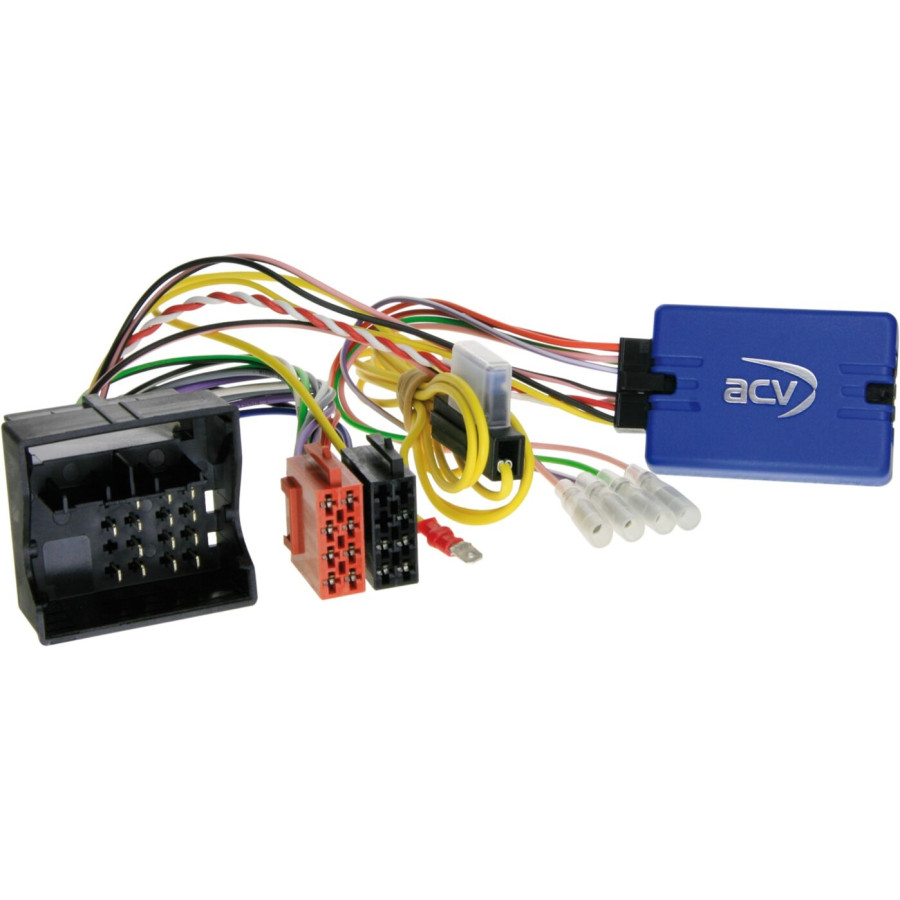

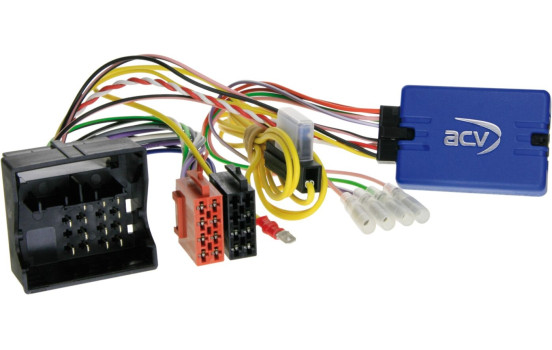

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Steering wheel control adapter

Remark:
CAN bus

Connection: 40 pin Quadlock BMW connector
Connection: +12V continuous current yellow (terminal 30) Battery fused

Vehicles with Business Professional OEM device
Vehicles without iDrive
Vehicles without OEM MOST sound system*

PDC / warning tones not supported**

Suitable for the following vehicles:

BMW 1 Series (E81/E82/E87/E88) 03/2004 - 10/2013*
BMW 3 Series (E90/E91/E92/E93) 03/2005 - 10/2013*
BMW 5 Series (E60/E61) 07/2003 - 07/2010*
BMW 6 Series (E63/E64) 09/2004 - 11/2010
BMW 7 Series (E65/E66) 08/2001 - 11/2008
BMW Z4 (E89) 05/2009 - 08/2016
BMW X1 (E84) 10/2009 - 06/2015
BMW X5 (E70) 03/2007 - 09/2013*
BMW X6 (E71/E72) 05/2008 - 06/2014*

BMW Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015

The following signals are provided:

Handbrake signal
Reverse signal
Contact series/X5/X6 40Pin Quadlock Amp MOST: 42sbm012
*optional active system adapter BMW MOST>Cinch: 13-1024-51
**vehicles with PDC rear LFB BMW/Mini various vehicles 40Pin Quadlock PDC: 42sbm009
**optional warning tone interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo: can-pdc

Connection cable for the following radio manufacturers:

LFB ACV cable > Alpine: 42ctalpinelead
LFB ACV cable > Parrot: 42ctasteroid lead
LFB ACV cable > Bosch-Blaupunkt >2010: 42ctblaupunktlead
LFB ACV cable > Blaupunkt/China HU/Kenwood: 42ctchinahulead
LFB ACV cable > Clarion: 42ctclarion lead
LFB ACV cable > JVC: 42ctjvclead
LFB ACV cable > Kenwood: 42ctkenwoodlead
LFB ACV cable > Multilead various devices: 42ctmultilead
LFB ACV cable > Panasonic: 42ctpanasonic lead
LFB ACV cable > Blaupunkt/Kenwood/Pioneer: 42ctpioneerlead
LFB ACV cable > Blaupunkt/Kenwood/Sony: 42ctsonylead
LFB ACV cable > XZent/Zenec: 42ctzeneclead voltage terminal 15
Relief
Speed

Steering wheel remote control

*vehicles with OEM MOST sound system LFB BMW 1 series/3 series/5
CAN bus


Suitable for:
BMW 1 Series 2004-2013 (E8-)
BMW 3 Series 2006-2013 (E9-)
BMW 5 Series 2004-2010 (E6-)
BMW 6 Series 2003-2010 (E3-)
BMW 6 Series 2003-2010 (E6-)
BMW 7 Series 2001-2008 (E6-)
Mini Cooper 2006-2013
BMW Z4 2009 2016 (E8-)
BMW X1 2009-2020 (E8-)

---

Guarantee

2 years
