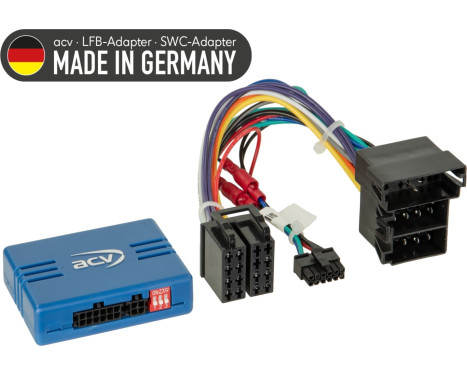

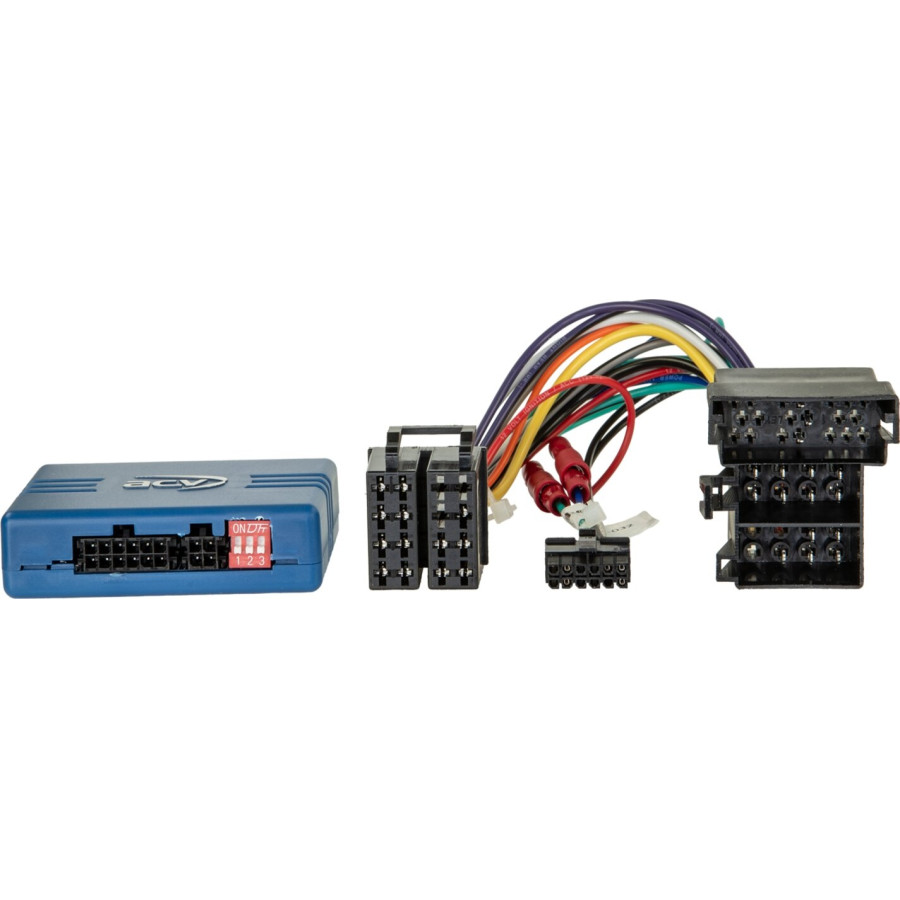

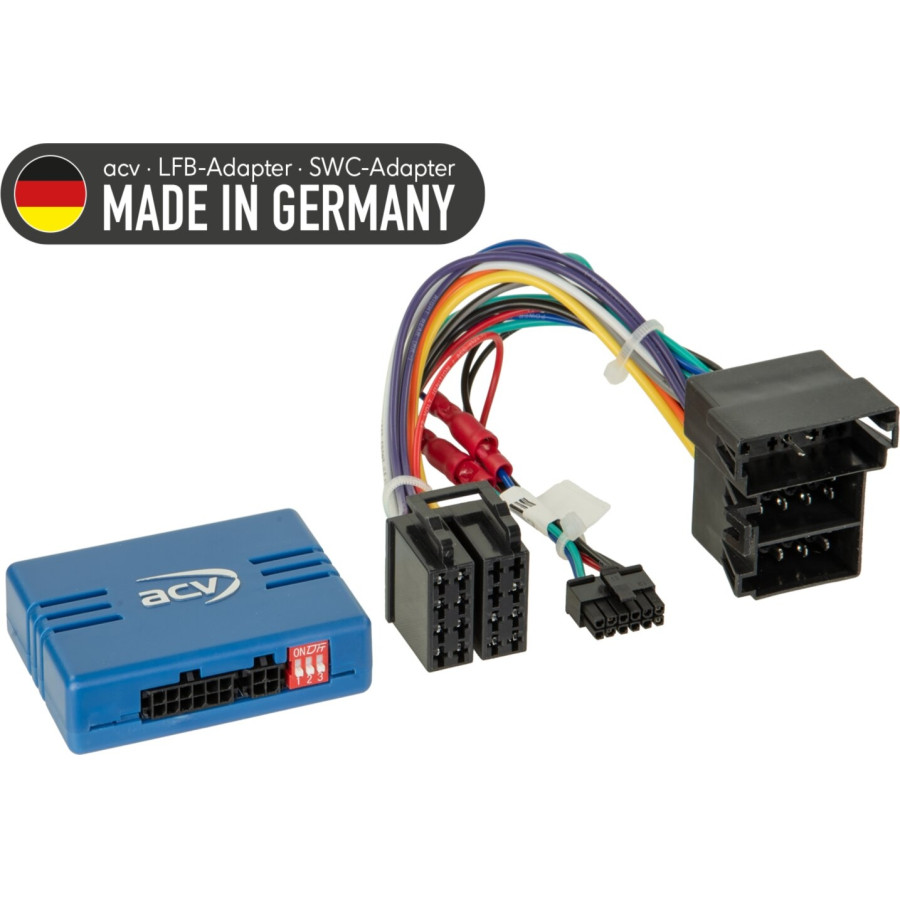

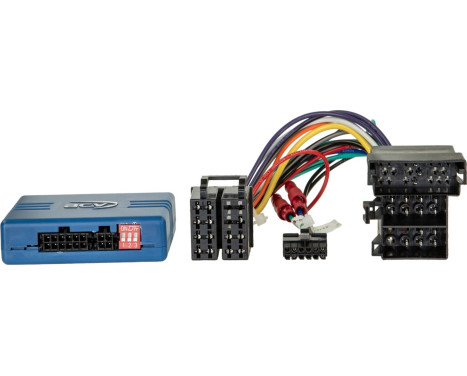

SWI Citroen/Fiat/Opel/Peugeot ISO/Mini ISO analog

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

analog

Connection: ISO / Mini-ISO

Vehicles with radio preparation
Vehicles with +12V ignition current and analog LFB in mini ISO connector pin 10/11/12 SWC1/GND/SWC2

Vehicles without OEM device

Vehicles with Daiichi OEM device directly wired with colored wires:

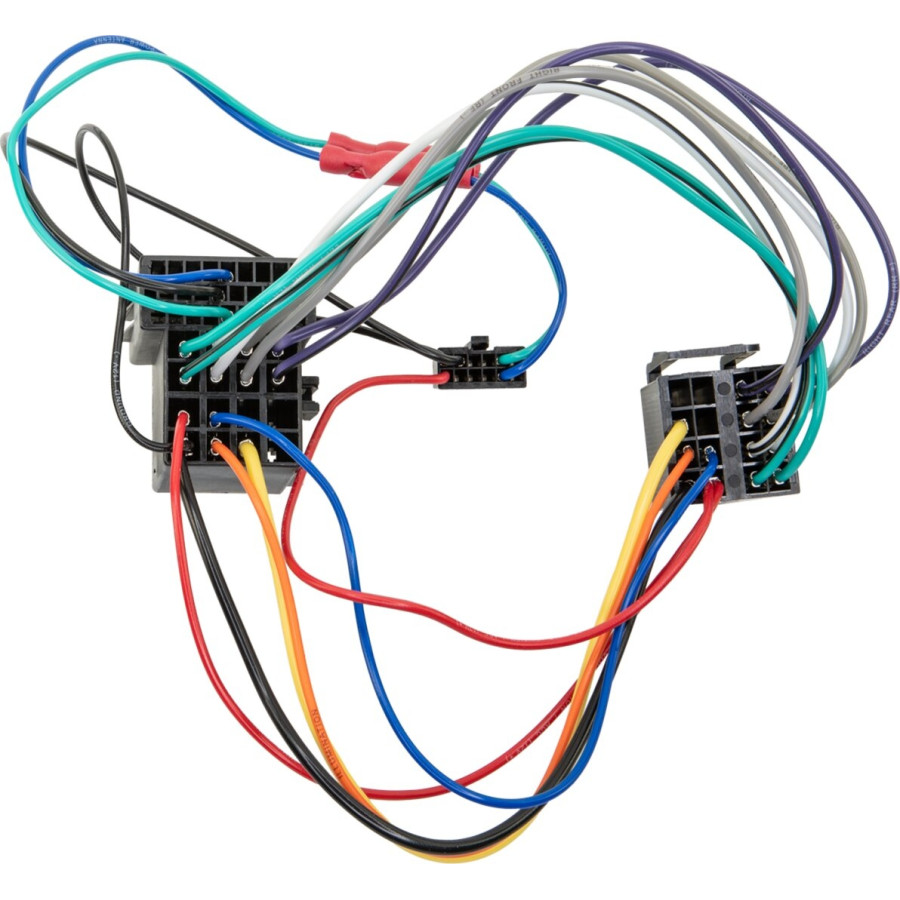

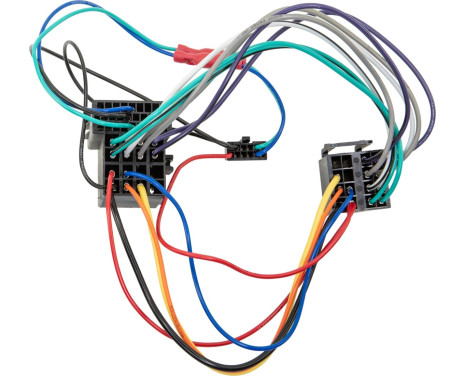

Check Analog Signals Before Installing with OEM Device > Item Image 2

Pin 3: Ground GND handbrake signal
Pin 4: Speed signal
Pin 5: +12V lighting terminal 58
Pin 8: SWC GND
Pin 9: Key 1 > green
Pin 10: Key 2 > blue
Pin 19: +12V reverse signal
Pin 28: Ground GND Mute Signal
Pin 42: +12V ignition connection 15

Adaptation T-cable set Citroen/Dodge/Fiat/Jeep/Opel/Peugeot 52Pin > Part: 57-1095

Suitable for the following vehicles:

Lemon
Citroën Jumper (250) 05/2014 - 2023
Citroën Relay (250) 05/2014 - 2023

Fiat
Fiat Ducato (ZFA 250) 05/2014 - 11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 2023

Peugeot
Peugeot Boxer (Y) 09/2014 - 2023

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

Steering wheel remote control

Connection cable for the following radio manufacturers:

Multilead various devices: 42arc100

Alpine 3.5mm jack connection: 42arc101
Blaupunkt 2010> 3.5mm jack connection: 42arc107
Blaupunkt 2010> Key1 / Key2 / (GND) connection: 42arc000
China HU Key1/Key2/(GND) connector: 42arc000
Clarion 3.5mm jack connection: 42arc104
Digital Dynamics single cable connection: 42arc108
ESX Key1 / Key2 connector: 42arc000
JVC 3.5mm jack connection: 42arc104
JVC single cable connection: 42arc105
Kenwood single cable connection: 42arc105
Kenwood 2017> 3.5mm jack connection: 42arc107
Kenwood 2020> Key1 / Key2 / GND connection: 42arc000
Pioneer 3.5mm jack connection: 42arc107
Snooper Key1 / Key2 connection: 42arc000
Sony 3.5mm jack connection: 42arc107
XZent single cable connection: 42arc108
Zenec single cable connection: 42arc108

Suitable for:
Citroën Jumper 2014-2023
Citroën Relay 2014-2023
Fiat Ducato 2014-2021
Opel Movano 2021-2023
Peugeot Boxer 2014-2023

---

Guarantee

2 years
