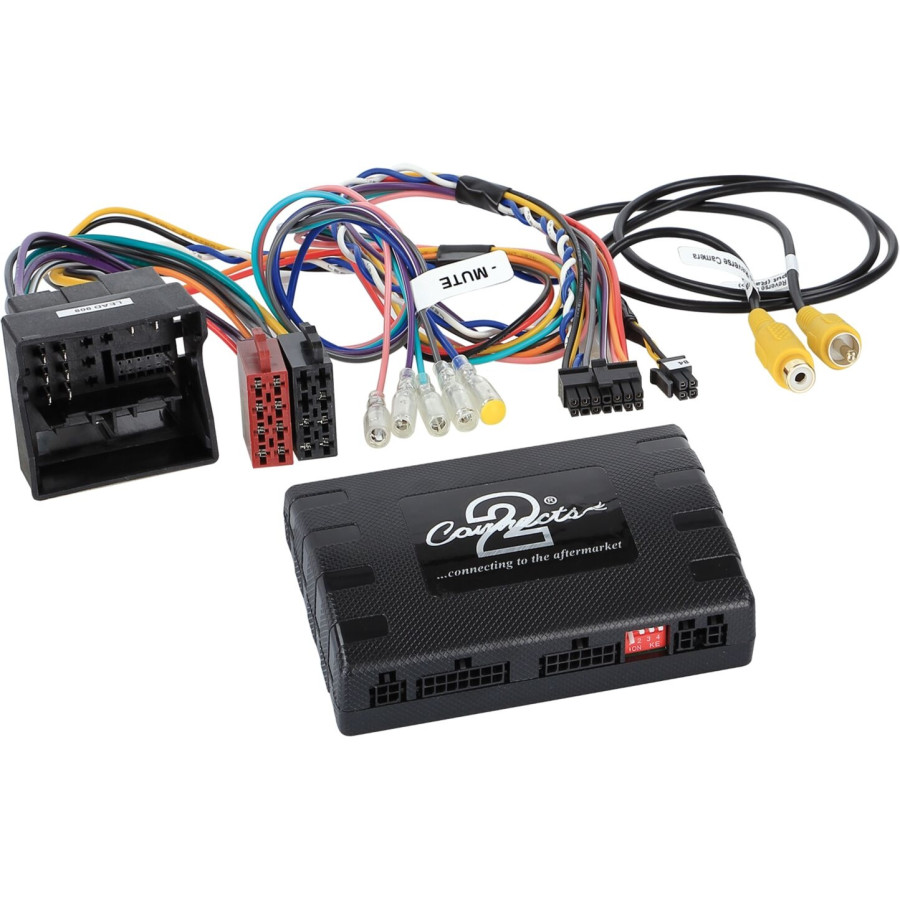

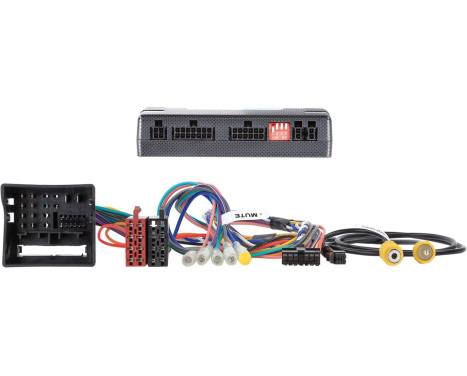

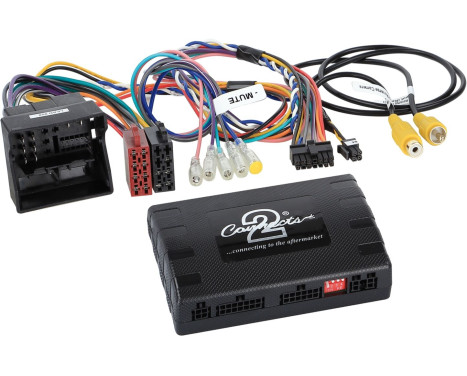

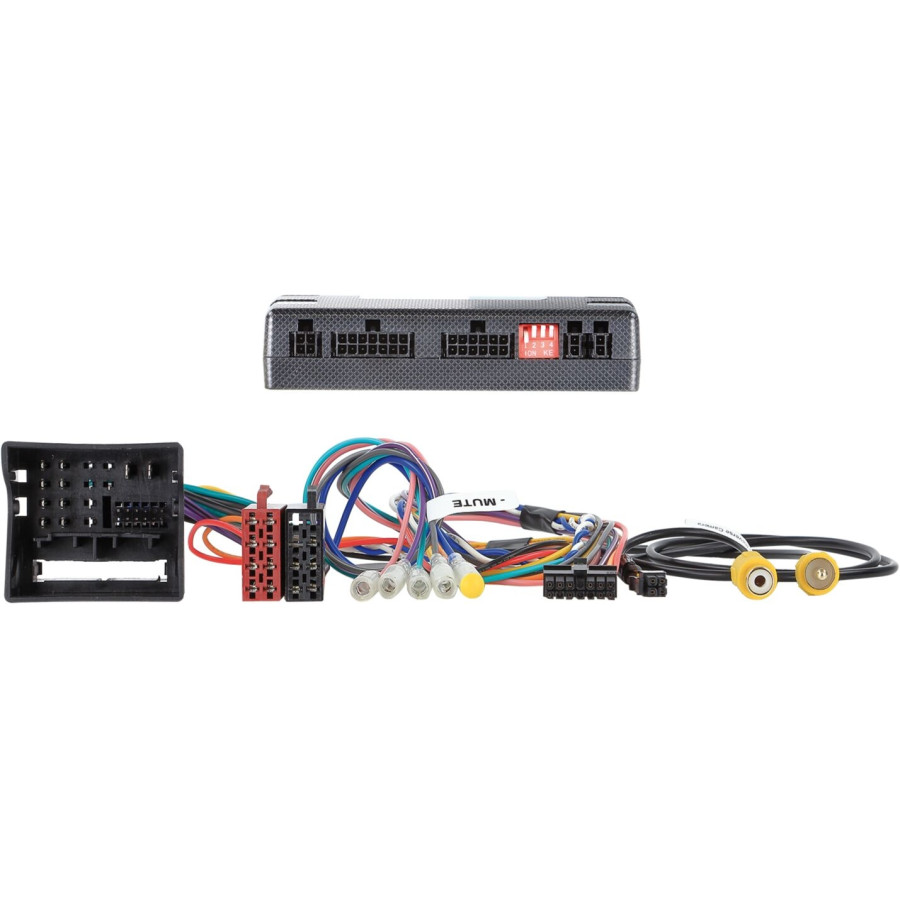

SWI + Info Adapter Various models Volkswagen 2015-2019

INFO DAPTER

This adapter allows the original steering wheel remote control, extended vehicle settings, optical display of the parking sensors and the climate control to be used for head units with AV input.

Vehicles with steering wheel remote control

Connection: 52 pin Quadlock VAG connector

Connect the rear view camera input (purple/white) to access the menu settings.
To make the menu settings visible, connect and configure the rear view camera input (cinch).
Vehicle settings and vehicle information > displayed on the retrofit monitor Rear view camera input

Depending on OEM vehicle equipment and software:
Not all vehicle settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized

Vehicles with MIB-PQ OEM platform

Vehicles without OEM sound system*

E-Call not supported

Vehicles with E-Call:
retention of E-Call MAN/Seat/Skoda/VW 52 Pin Quadlock > Article: 1424-28

Not for vehicles with:
with OEM sound system
with radio preparation
without factory installation > steering wheel remote control / speaker / radio

Vehicles with park assist and front PDC > after starting the vehicle the front PDC is displayed
Leave display > confirm vehicle via PDC button

Suitable for the following vehicles:

Skoda
Skoda Yeti (5L) 10/2013 - 07/2017*

VW
VW Beetle (16) 06/2016 - 03/2018*
VW Caddy IV (DU) 06/2015 - 09/2020
VW Jetta (16) 2015 - 2018
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019
VW Tiguan II (5N) 05/2016 - 05/2021

The following signals are given:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

Climate control visualization supported
Visualization optical PDC supported
CAR Menu Vehicle Settings

*Skoda Yeti Active Sound OEM supported sound system
*VW Beetle Composition Media OEM device Dynaudio OEM sound system supported
*VW Beetle Fender OEM sound system not supported

Suitable for:
Volkswagen Beetle 2016-2018
Volkswagen Caddy 2015-2020
Volkswagen Jetta 2015-2018
Volkswagen Sharan 2015-2021
Volkswagen T6 Transporter 2015-2019
Volkswagen Tiguan 2015-2021

---

Guarantee

2 years
