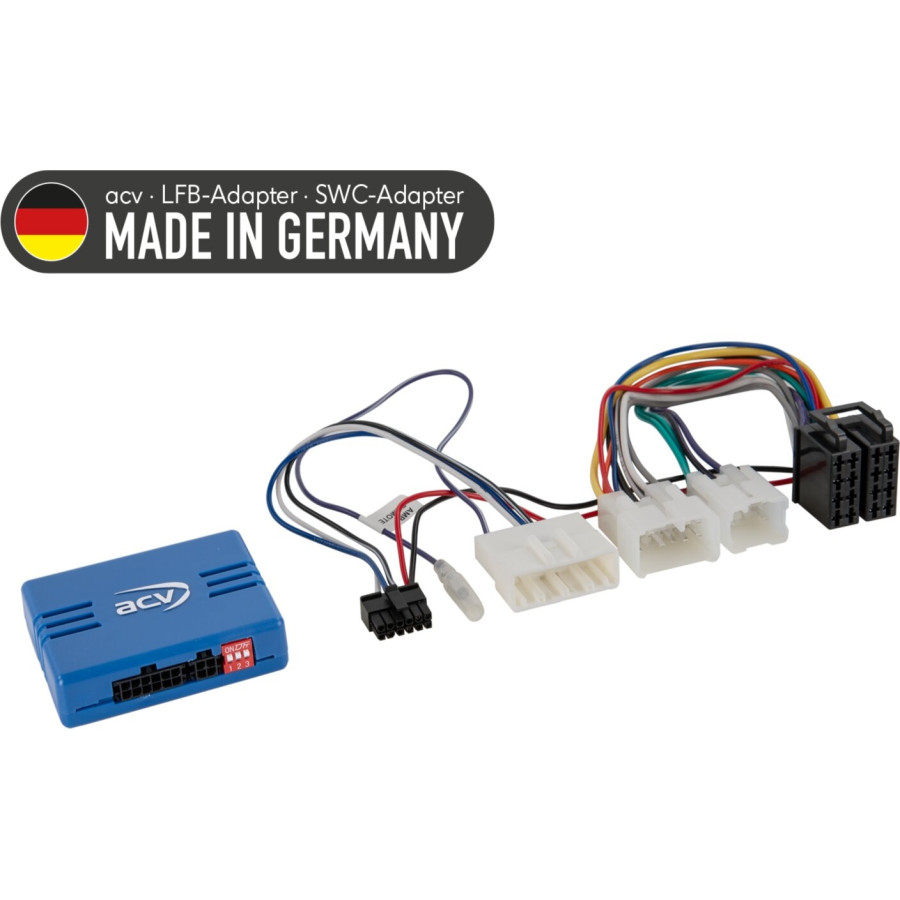

SWI Lexus/Toyota various vehicles 10pin/6Pin/28pin analog (42sty002)

Hyundai/Kia Steering Wheel Remote Control Adapter

Retain the original functions of your steering wheel remote control when replacing the factory radio with a retrofit radio.

Depending on the vehicle's equipment and the range of functions and software of the retrofit device, individual control functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and ensure they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:

Analog

Connection: 10 pin / 6 pin / 28 pin Toyota connector

Vehicles with model year limit > Article: 42a-1300-00c with 20-pin and 28-pin wiring harness

Vehicles with Matsushita/Fujitsu Ten OEM device

Vehicles without a 360° camera system

Diagnostic LED:
blue constant > Interface active +12V ignition current supply present
red > steering wheel remote control function recognized

Suitable for the following vehicles:

Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018*
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in functions.

Steering wheel remote control

*Vehicles with 360° OEM camera system LFB Toyota various vehicles 10Pin/6Pin/28Pin//24Pin > Item: 42sty019

Connection cable for the following radio manufacturers:

Multilead various devices: 42arc100

Alpine 3.5mm jack connection: 42arc101
Blaupunkt 2010> 3.5mm jack connection: 42arc107
Blaupunkt 2010> Key1 / Key2 / (GND) connection: 42arc000
China HU Key1 / Key2 / (GND) connector: 42arc000
Clarion 3.5mm jack connection: 42arc104
Digital Dynamics single cable connection: 42arc108
ESX Key1/Key2 connector: 42arc000
JVC 3.5mm jack connection: 42arc104
JVC single cable connection: 42arc105
Kenwood single cable connection: 42arc105
Kenwood 2017> 3.5mm jack connection: 42arc107
Kenwood 2020> Key1 / Key2 / GND connection: 42arc000
Pioneer 3.5 mm jack: 42arc107
Pioneer AVH / DMH / SPH 2021/2022> 3.5mm jack connection: 42arc1072
Snooper Key1 / Key2 connection: 42arc000
Sony 3.5mm jack: 42arc107
Single XZent cable connector: 42arc108
Zenec single cable connection: 42arc108

Suitable for:
Toyota Auris 2007-2013
Toyota Avensis 2003-2015
Toyota Camry 2007-2011
Toyota Celica 1999-2006
Toyota Corolla 2002-2016
Toyota Corolla Verso 2004-2009
Toyota FJ Cruiser 2006-2007
Toyota Fortuner 2011-2015
Toyota Hi-ace 2006-2010
Toyota Hilux 2005-2020
Toyota LandCruiser 1998-2020
Toyota MR2 2000-2003
Toyota Prius 2003-2016
Toyota RAV4 2000-2018
Toyota Yaris 2006-2023
Toyota Verso 2009-2018

---

Guarantee

2 years
