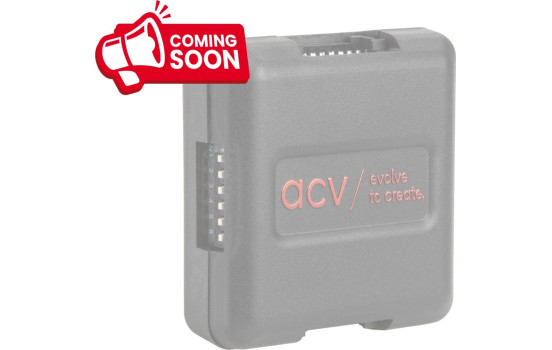

SWI Renault/Nissan/Opel Vehicles Multilead ISO (42srn007)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: ISO / Mini ISO
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

Vehicles with external display

Vehicles without Arkamys DSP OEM sound system
Vehicles without OEM device with own display without USB in front
Vehicles without Radiosat Classic OEM device > contact support

External OEM display must remain connected

Supported date/time setting

DIP switch settings for the aftermarket device manufacturer (see BDA)

Suitable for the following vehicles:

Nissan
Nissan NV 400 09/2010 - 06/2014
Nissan Primastar (X83) 01/2011 - 05/2015*

Opel
Opel Movano (B) 02/2010 - 08/2014
Opel Vivaro B (X83) 01/2011 - 08/2014*

Renault
Renault Clio III (R) 05/2009 - 04/2014
Renault Grand Modus (P) 01/2008 - 03/2013
Renault Grand Scenic 04/2009 - 09/2016
Renault Laguna III (BT) 10/2007 - 09/2014
Renault Master (III) 02/2010 - 08/2014
Renault Modus (P) 04/2008 - 12/2012
Renault Mégane (III) 2008 - 12/2013
Renault Scenic III (JZ) 06/2009 - 02/2012
Renault Trafic II (JL/FL/EL Facelift) 01/2011 - 08/2014*
Renault Twingo II (N) 09/2009 - 12/2011*/**
Renault Wind (N) 08/2010 - 08/2013**

The following signals are given:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirements greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with OEM device with own display without USB in front > Article LFB Nissan/Renault ISO/Mini ISO yellow/OEM device with display: 42k-1250-000
**Vehicles with update list OEM device without display

Suitable for:
Renault Megane 2008-2013
Nissan NV400 2010-2014
Nissan Primastar 2011-2015
Opel Movano 2010-2014
Opel Vivaro 2011-2014
Renault Clio 2009-2014
Renault Twingo 2009-2011
Renault Laguna 2009-2015
Renault Modus 2008-2013
Renault Master 2008-2012
Renault Megane 2008-2013
Renault Trafic 2008-2013
Renault Wind 2010-2013
Renault Scenic 2009-2012

---

Guarantee

2 years
