Samsung Galaxytab Passive holder. With lock and key

Holder with lock.

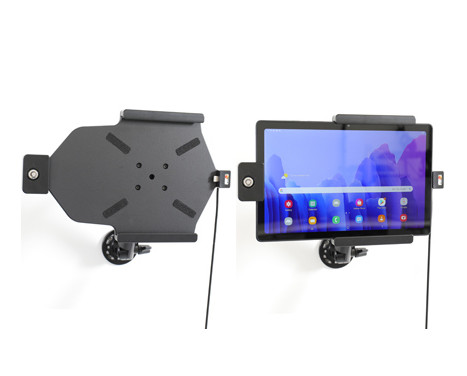

Active holder for fixed mounting. With tilt and swivel. Including 2 keys.

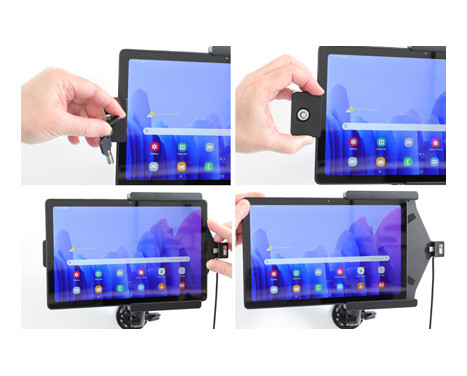

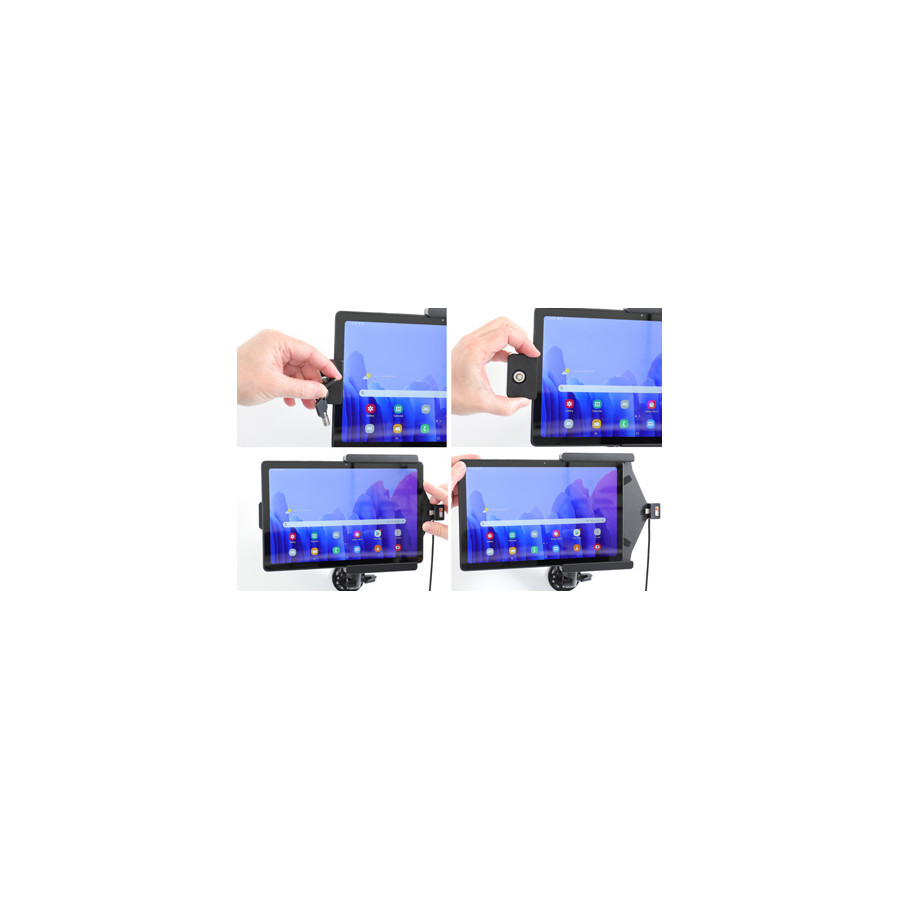

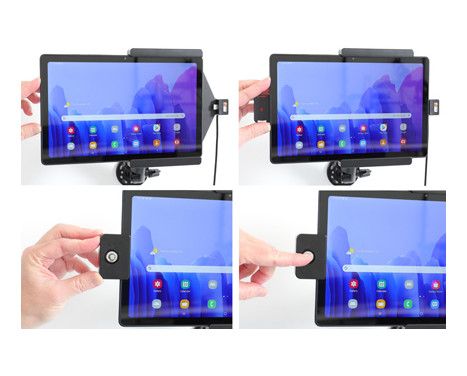

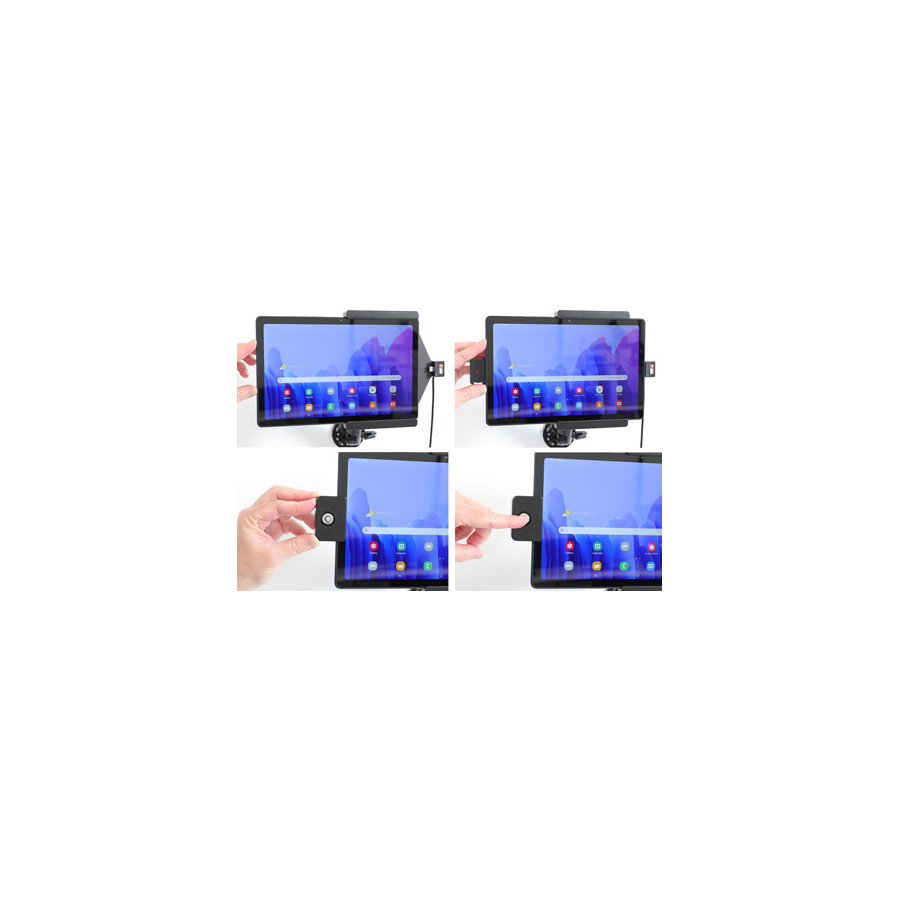

This holder is used when you want to secure your device and still have it easily accessible. Perfect for use in shops, at fairs and any other place where you want to use your device without it being easy to remove. To remove the tablet from the holder you need the key or a certain amount of force is required. The holder contains a lock and two keys.

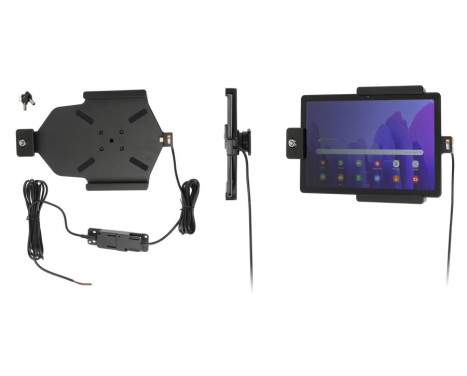

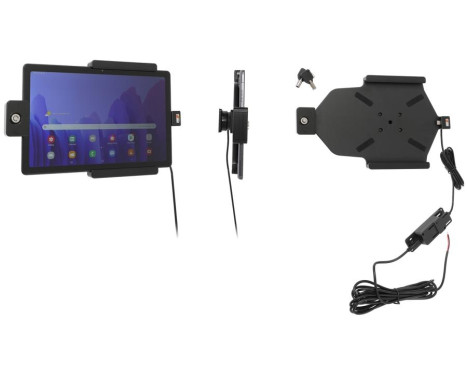

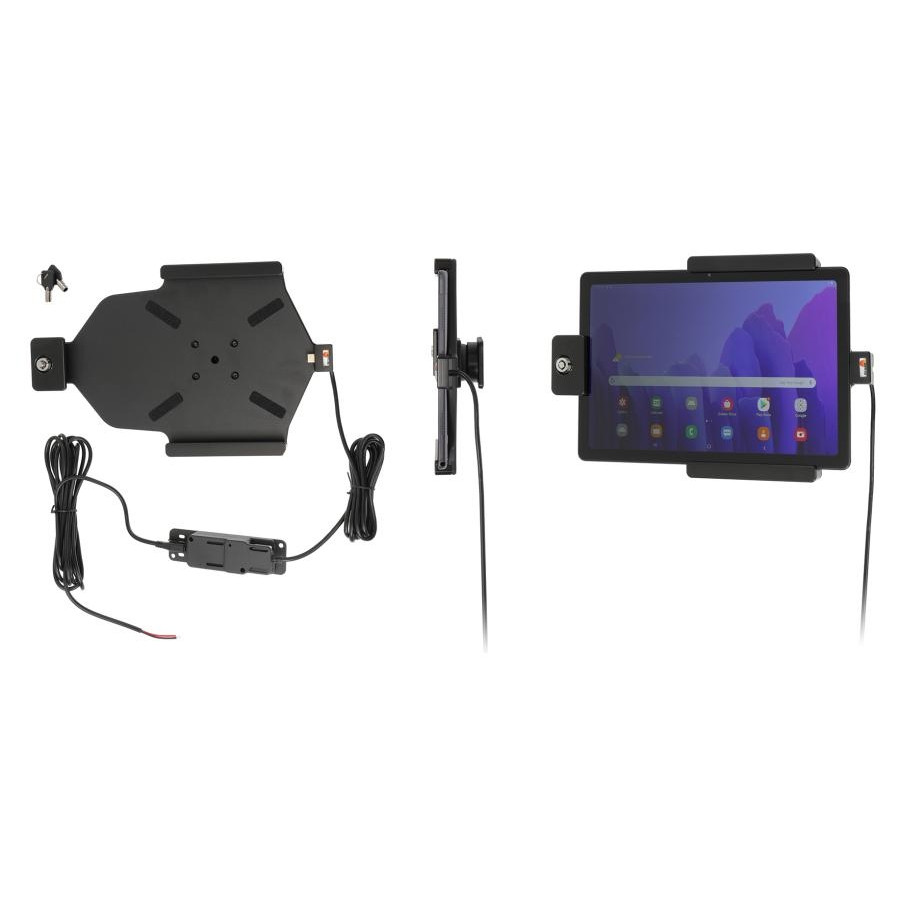

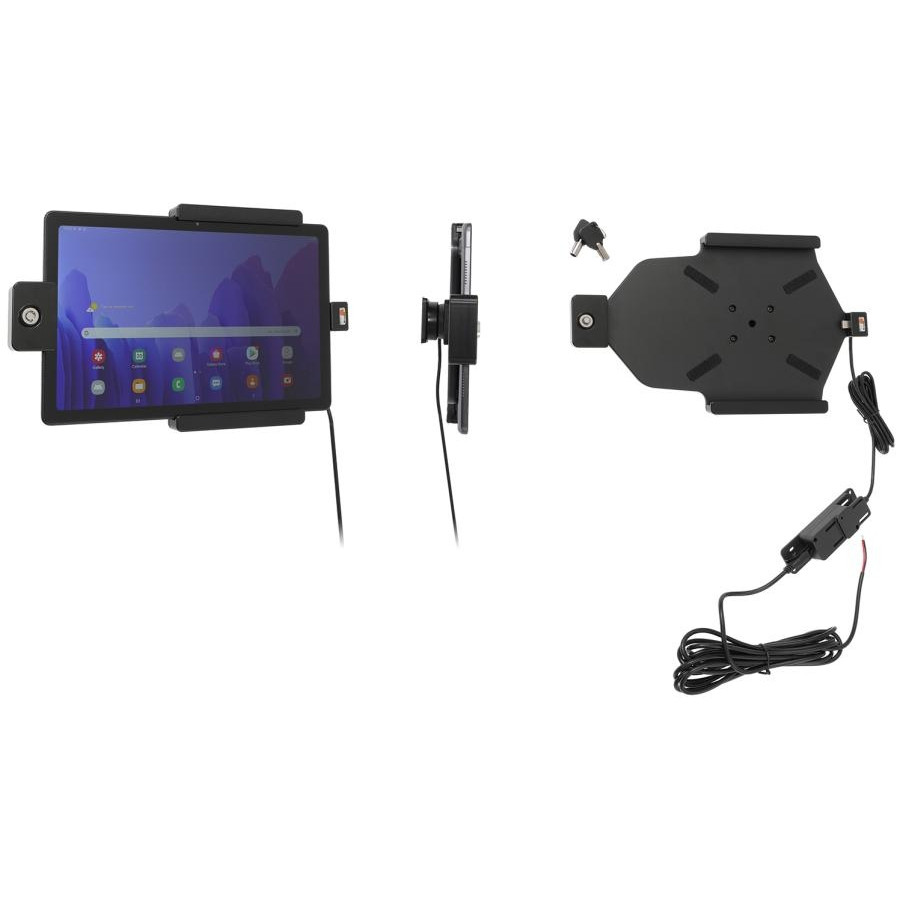

For fixed installation. The holder is fixed to the dashboard, allowing for an elegant installation without cables hanging over the interior. The charging box has two USB ports: QC 3.0A + 2.4A. Connect the power cable with a 2A fuse. Professional installation recommended.

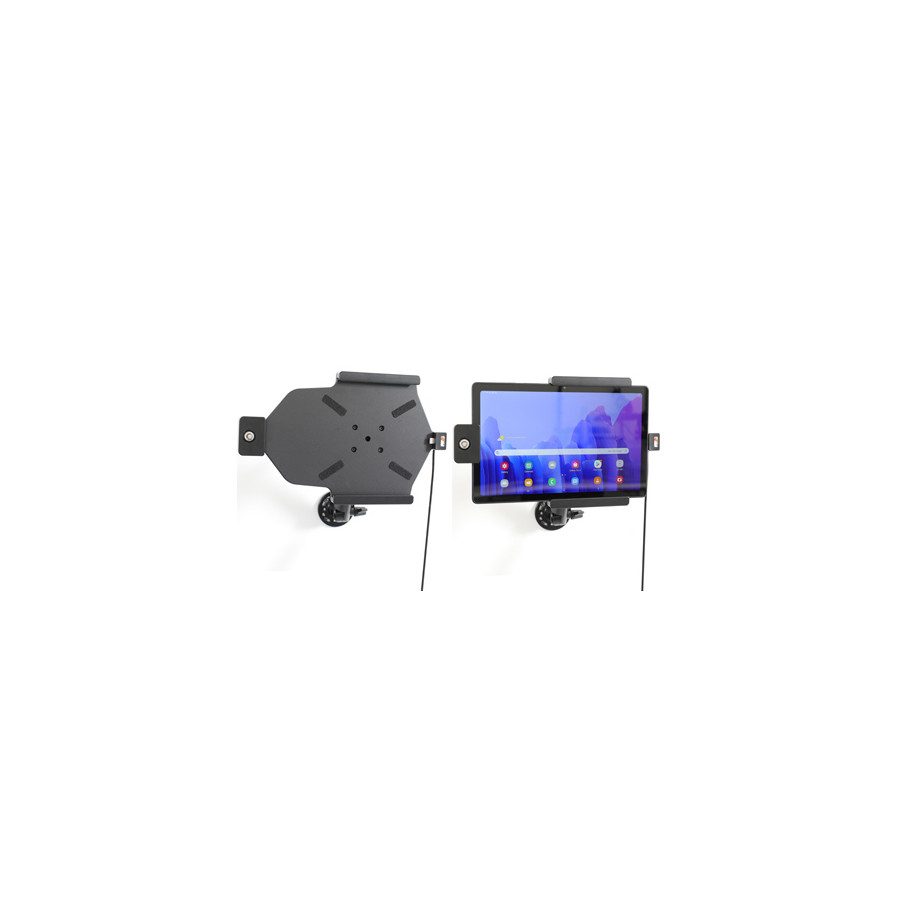

The holder is equipped with a tilt-swivel system so you can easily adjust the angle for a better view. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS holes. Made of high quality ABS/Acetal plastic. Color: Black. Made in Sweden.

The installation of a tablet on the dashboard of a vehicle is always at the customer's own risk. Brodit recommends using tablets on a pedestal mount or a Brodit headrest mount.
Charging specification:
- Molex 2-Pin input
- Output Type Connection: Dual USB Type-A Female.
- Output voltage: 5V, 9V, 12V (nominal)
- Output current:
- USB Port 1: 3.6V~6V/3A 6.2-9V/2A 9.2-12V/1.5A (Recommended for Android, etc.)
- USB Port 2: 4.9V ~ 5.25V 2.4A (Recommended for Apple)
- Output Voltage Ripple: 300mV pk-pk at Maximum Load
- Input Voltage Range: DC 12-24V DC, Input can handle 40V translent Load Dump events
- Input Current: 3.0 A DC Max
- Input current without connected device: 0.005A
- DC-DC conversion efficiency: More than 86% Typical
- Nominal power:
- USB port 1: 18 Watt Max.
- USB port 2: 12 Watt Max.
Item number: 736229
EAN: 7320287362299
Width: 280 mm
Height: 177 mm
Depth: 43 mm
Volume: 2131 cm³
Weight: 529 g
Item No. 736229 fits:
Samsung Galaxy Tab A7 10.4 (2020) SM-T500/SM-T505 (For all countries)
Translated with www.DeepL.com/Translator (free version)

Suitable for:
Passive
Samsung Galaxy tab A7

---

application	Universal
Montage	Bolted
Guarantee	2 years
