Auto-Connect L1 Wire Sleeve End 36mm2/2GA 10pcs
Product number: 2135762
Manufacturer number: 720L1WS2
EAN: 7394409045797
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
-
Specifications

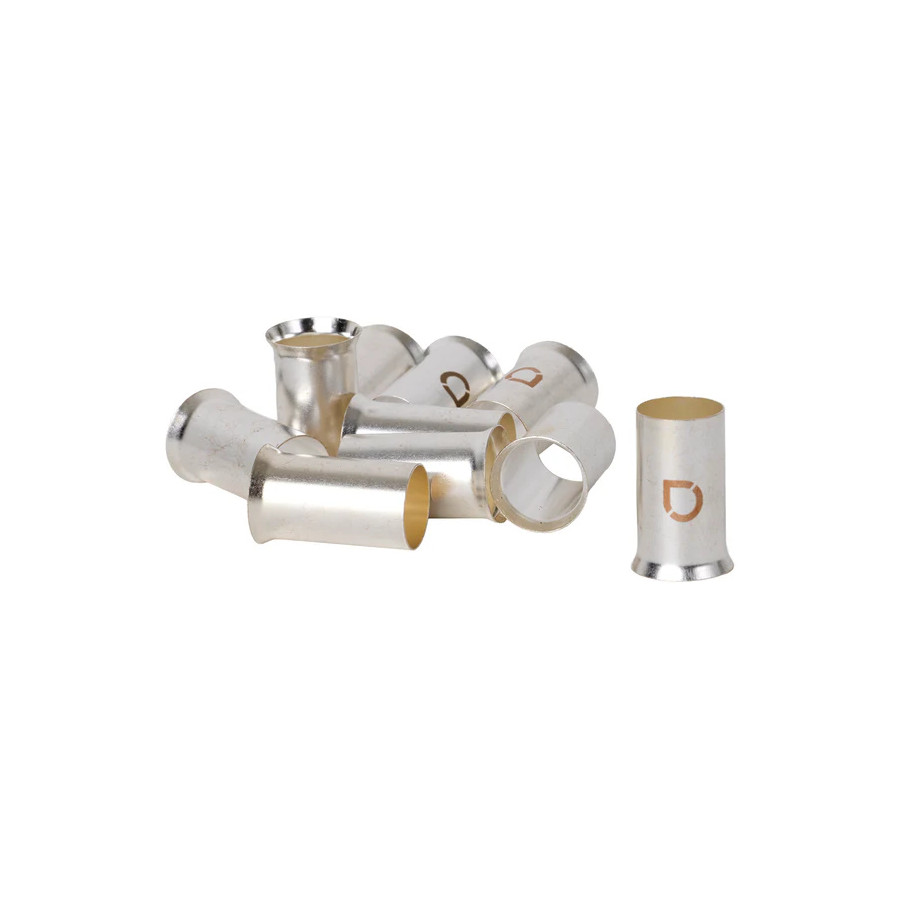

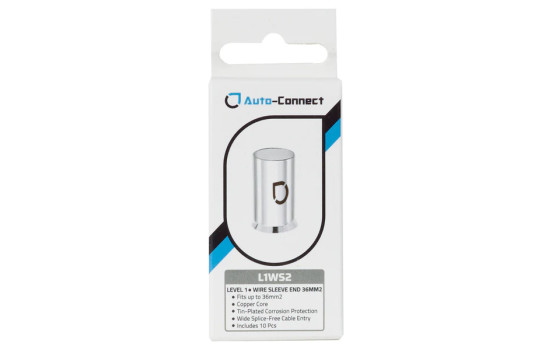

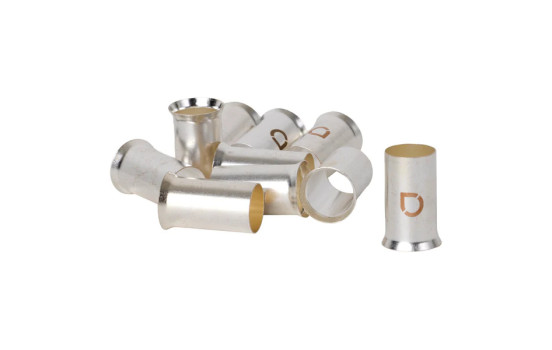

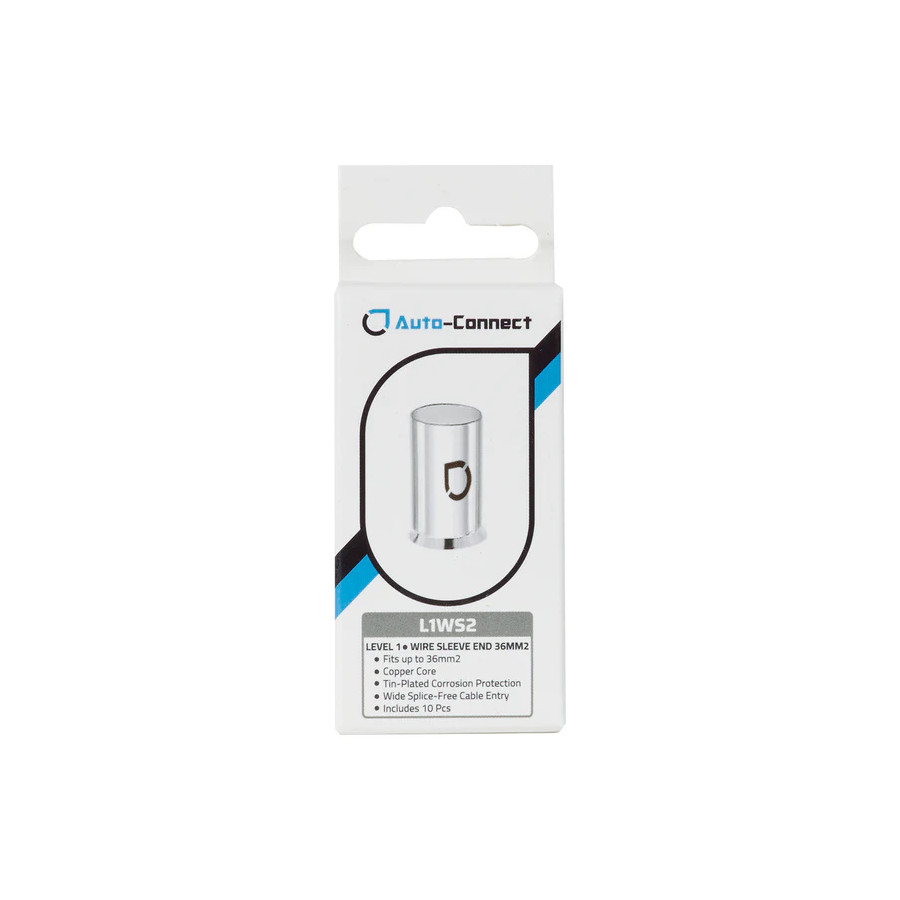

L1WS2 is a 10-pack of uninsulated wire end ferrules, designed for robust and neat cable finishes. These ferrules support cables up to 36 mm² (2 AWG) and ensure a clean, consistent conductor finish during installation.
36 mm² / 16 AWG ferrules
10 pieces per package
copper core
Tinned for corrosion protection
Flared inlet for easy cable insertion
Improves contact between conductor and terminal
Suitable for crimping or direct clamping in terminals
Wire end ferrules
Uninsulated ferrules prevent wires from fanning out and damage to the conductor when connecting power or speaker cables to screw or clamp terminals. By completely enclosing the stripped conductor, a uniform contact surface is created, which improves electrical conductivity and mechanical stability. This allows the cable to be assembled and disassembled multiple times without fraying or breakage. Finishing with tape or heat shrink tubing provides additional strain relief and insulation where necessary.
Specifications
Length: 15.7 mm
Outer diameter: Ø 8.7 mm
Inner diameter: Ø 8.3 mm
Suitable for:
Guarantee 2 years -
Applicability
Universally applicable
-
