Brake disc 09.E028.23 Brembo
Product number: 1730531
Manufacturer number: 09.E028.23
EAN: 8020584321584
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

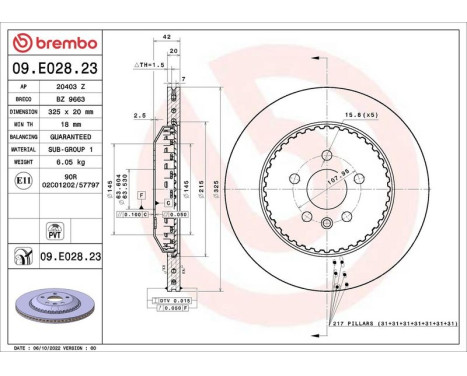

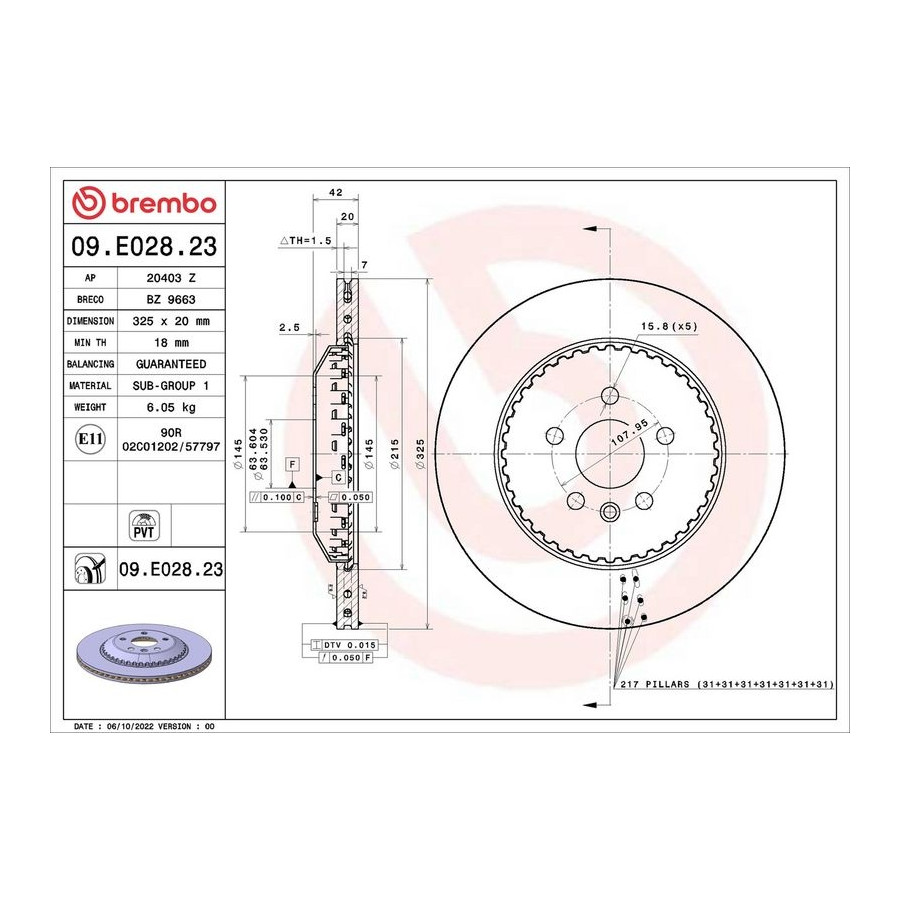

Outer diameter [mm] 325 Fitting Position Rear Axle Brake Disc Type Internal ventilation Surface Coated Number of Holes 5 Brake pads Exclusive Brake Disc Type Two-piece brake disc Steel brake disc head Centering Diameter [mm] 63,6 Guarantee 2 years Height [mm] 42 Brake disc thickness (mm) 20 Minimum thickness (mm) 18 Similar products of other manufacturers
Manufacturer Manufacturer number Price AMBMI RGL-056C BLUE PRINT ADBP430266 BREMBO 09.E028.23 (this product) CAR 242.2336 DELPHI BG9678BC FEBI BILSTEIN 199175 LPR A4039VR Manufacturer Manufacturer number Price LPR A4039V MAGNETI MARELLI 360406215904 SAMKO A4039VR SAMKO A4039V SWAG 33 11 3317 VAICO V48-40026 ZIMMERMANN 450.5235.30 -
Applicability
LAND ROVER RANGE ROVER RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 D180 TD4 4x4 - 1999ccm, 180pk, 132kw - 204DTD(AJ20D4) RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 D200 MHEV 4x4 - 1997ccm, 204pk, 150kw - 204DTY(AJ21D4) RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 D240 SD4 4x4 - 1999ccm, 241pk, 177kw - 204DTA(AJ20D4) RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 P250 Si4 4x4 - 1997ccm, 250pk, 184kw - PT204(AJ20P4) RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 P300 Si4 4x4 - 1997ccm, 300pk, 221kw - PT204(AJ20P4) RANGE ROVER VELAR (L560) | 03.2017-??? 2.0 P400 Hybrid 4x4 - 1997ccm, 404pk, 297kw - PT204(AJ20P4) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 D275 SDV6 4x4 - 2993ccm, 275pk, 202kw - 306DT(TDV6) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 D300 MHEV 4x4 - 2997ccm, 300pk, 221kw - DT306(AJ20D6) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 D300 SDV6 4x4 - 2993ccm, 300pk, 221kw - 306DT(TDV6) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 P340 SCV6 4x4 - 2995ccm, 340pk, 250kw - 306PS(AJ126) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 P380 SCV6 4x4 - 2995ccm, 380pk, 280kw - 306PS(AJ126) RANGE ROVER VELAR (L560) | 03.2017-??? 3.0 P400 MHEV 4x4 - 2995ccm, 400pk, 294kw - PT306(AJ20P6) -
Original part numbers
LR141725 LAND ROVER LR161920 LAND ROVER T4A39639 JAGUAR T4A45235 JAGUAR -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
