ATE

Brake Disc 24.0126-0137.1 ATE

Brake Disc 24.0126-0137.1 ATE Brake Disc 24.0126-0137.1 ATE, Image 2 Brake Disc 24.0126-0137.1 ATE, Image 3

Product number: 0384631

Manufacturer number: 24.0126-0137.1

EAN: 4006633292665

€ 88,12

Incl. VAT
View product specifications
Not available
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

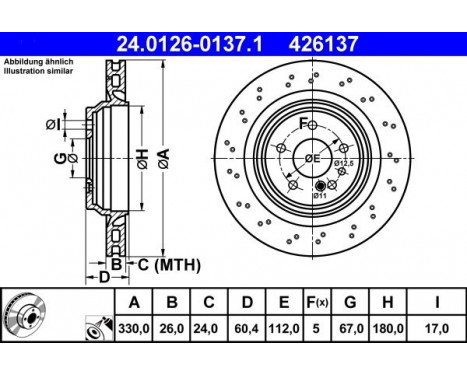

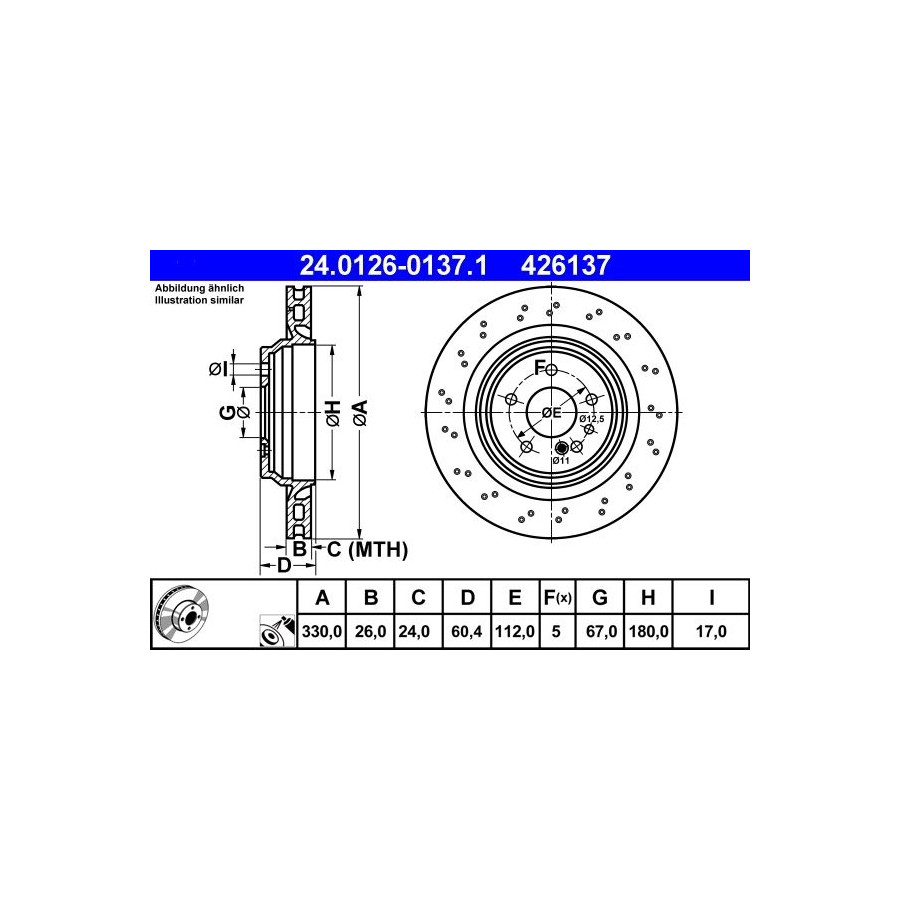

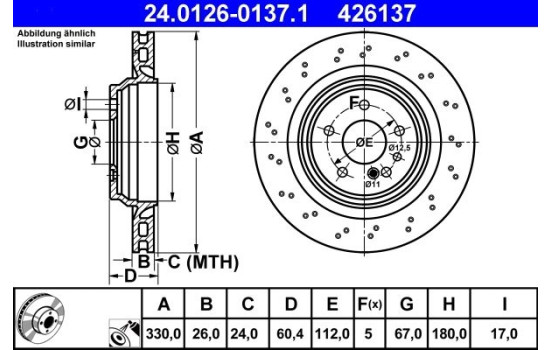

  • Specifications

    Application: brake disc
    Outer diameter [mm]330,0
    SurfaceCoated
    Number of Holes5
    MontageRear
    Brake padsExclusive
    Inner diameter [mm]180,0
    Bolt Hole Circle Ø [mm]112,0
    Brake Disc TypePerforated/internal ventilation
    Centering Diameter [mm]67,0
    MachiningAlloyed / High-carbon
    Bore Ø [mm]17,0
    Inspection TagE1 90R-02C0640/1203
    MAPP code available
    Guarantee2 years
    Height [mm]60,4
    Brake disc thickness (mm)26,0
    Minimum thickness (mm)24,0

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17567
    € 70,61
    AP 25288 V
    ATE 24.0126-0137.1 (this product)
    BORG & BECK BBD5782S
    BRECO BV 8898
    BREMBO 09.B842.21
    € 73,96
    BREMSI CD8183V
    DELPHI BG3880
    EUROBRAKE 5815313385
    EUROBRAKE 5815203385
    FEBI BILSTEIN 43943
    € 66,37
    FTE BS7518B
    FTE BS7518
    FTE 9071335
    FTE 9081277
    Manufacturer Manufacturer number Price
    HELLA 8DD 355 110-191
    HELLA PAGID 8DD 355 110-191
    JURID 562337J
    MINTEX MDC1668
    NATIONAL NBD1275
    NK 203385
    NK 313385
    OPTIMAL BS-7840C
    PROTECHNIC PRD6279
    SWAG 10 94 3943
    TEXTAR 92124300
    TRISCAN 8120 231045C
    VAICO V30-80083
    ZIMMERMANN 400.3635.20
    € 90,78

  • Applicability

    MERCEDES-BENZ
    S-CLASS
    S-CLASS (W220, V220) | 10.1998-08.2005 S 55 AMG Kompressor (220.074, 220.174) - 5439ccm, 500pk, 368kw - M 113.991
    S-CLASS Coupe
    S-CLASS Coupe (C215) | 03.1999-03.2006 CL 55 AMG Kompressor (215.374) - 5439ccm, 500pk, 368kw - M 113.991

  • Original part numbers

    220 423 09 12 MERCEDES-BENZ
    A 220 423 09 12 MERCEDES-BENZ

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.


  • Delivery time

    Expected delivery date:

    06-11-2025
