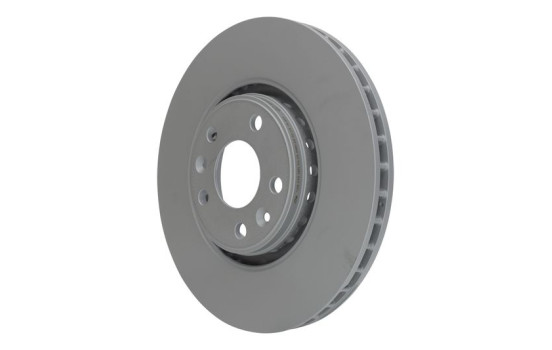

Brake Disc 24.0128-0245.1 ATE

Video

Product number: 0385017

Manufacturer number: 24.0128-0245.1

EAN: 4006633341721

€ 89,³⁸

Incl. VAT

View product specifications

In stock

Delivery Day after tomorrow

Quantity:

Secure payment

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

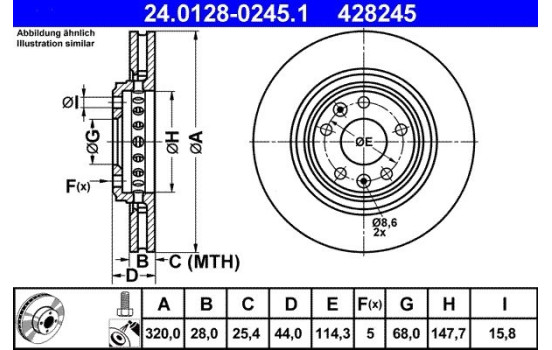

Specifications

Application: brake disc

Outer diameter [mm]	320,0
Brake Disc Type	Vented
Surface	Coated
Number of Holes	5
Montage	Front
Brake pads	Exclusive
Inner diameter [mm]	147,7
Bolt Hole Circle Ø [mm]	114,3
Centering Diameter [mm]	68,0
Machining	Alloyed / High-carbon
Inspection Tag	E1 90R-02C0118 / 0573
MAPP code available
Guarantee	2 years
Height [mm]	44,0
Additional information	With screws
Brake disc thickness (mm)	28,0
Minimum thickness (mm)	25,4
Hole diameter [mm]	15,8

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17978	€ 54,58
ABE	C3R046ABE
AP	25272 X
AP	25272
AP	25272 V
ASAM	102624
ASHIKA	60-00-0702C
ASHUKI	P330-282
ATE	24.0128-0245.1	(this product)
BELACO	BDS1186
BLUE PRINT	ADR164308	€ 52,33
BORG & BECK	BBD4781
BOSCH	0 986 479 552	€ 54,49
BRECO	BV 8882
BRECO	BS 8882
BREMBO	09.B352.1X	€ 113,57
BREMBO	09.B352.10
BREMBO	09.B352.11	€ 67,97
BREMSI	CD7727V
CAR	HPD 1494
CAR	142.1494
CHAMPION	562596CH
CIFAM	800-1334C
COMLINE	ADC1582V
DELPHI	BG4266
DENCKERMANN	B130596
DJ PARTS	BD2860
DON	PCD14132
Dr!ve+	DP1010.11.1522
EUROBRAKE	5815203969
EUROBRAKE	5815313969
FEBI BILSTEIN	43949	€ 51,65
FERODO	DDF1727C	€ 81,61
FTE	9071081
FTE	9082786
GIRLING	6062085
HELLA	8DD 355 129-111
JAPANPARTS	DI-0702C
JAPKO	600702C
JP GROUP	4363102500
JURATEK	REN187
JURID	562596JC
JURID	562596JC-1
KAMOKA	1033454
KAVO PARTS	BR-10121-C
KAWE	61345 10
LORO	231-03-222
LORO	231-03-222-2
LPR	R1057VR
LPR	R1057V
MAGNETI MARELLI	360406217602
MAGNETI MARELLI	361302040757
MAGNETI MARELLI	360406112101
MAGNETI MARELLI	360406112100
MALÒ	1110378

Manufacturer	Manufacturer number	Price
MAPCO	45030C
MASTER-SPORT	24012802451-SET-MS
MASTER-SPORT	24012802451-SET-MSP
MASTER-SPORT	24012802451-PCS-MSP
MASTER-SPORT	24012802451-PCS-MS
MAXGEAR	19-2363SPORT
MAXGEAR	19-2363
MAXTECH	875367
METELLI	23-1334C
METZGER	6110002
MEYLE	16-15 521 0043/PD	€ 69,31
MINTEX	MDC2194
MOTAQUIP	LVBD1346Z
NATIONAL	NBD1742
NK	203969
NK	313969
NPS	R330T07
OPTIMAL	BS-8302HC
OPTIMAL	BS-8302
PAGID	54954NC
PILENGA	V797
QUARO	QD7441
QUARO	QD7441HC
QUINTON HAZELL	BDC5840
RAICAM	RD00703
REMSA	61345.10
ROADHOUSE	61345.10
ROTINGER	RT 4503-GL T5
ROTINGER	RT 4503HP
ROTINGER	RT 4503HP-GL T9
ROTINGER	RT 4503HP-GL T3
ROTINGER	RT 4503HP-GL
ROTINGER	RT 4503-GL
ROTINGER	RT 4503-GL T9
ROTINGER	RT 4503HP-GL T6
ROTINGER	RT 4503-GL T6
ROTINGER	RT 4503-GL T3
ROTINGER	RT 4503HP-GL T5
ROTINGER	RT 4503
SASIC	6104026
SKF	VKBD 80091 V1
SWAG	60 94 3949
TEXTAR	92195403	€ 87,30
TOPRAN	631 151
TRISCAN	8120 25154C
TRUSTING	DF1360
TRW	DF6208S	€ 58,13
VAICO	V46-80018
VALEO	673102
VALEO	197486
WOKING	D61345.10
ZIMMERMANN	470.2438.52	€ 91,44
ZIMMERMANN	470.2438.20	€ 63,75
fri.tech.	BD1360

Applicability

RENAULT

	5
	5 \| 06.2024-??? E-Tech 150 - 0ccm, 150pk, 110kw -
	CLIO IV
	CLIO IV (BH_) \| 11.2012-08.2021 1.6 RS (BHJ4, BHJ6, BHMM) - 1618ccm, 200pk, 147kw - M5M 400, M5M 450, M5M 401
	CLIO IV (BH_) \| 11.2012-08.2021 1.6 RS Trophy (BHJ4, BHJ6) - 1618ccm, 220pk, 162kw - M5M 401
	ESPACE V
	ESPACE V (JR_) \| 02.2015-03.2023 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
	ESPACE V (JR_) \| 02.2015-03.2023 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
	ESPACE V (JR_) \| 02.2015-03.2023 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450
	ESPACE V (JR_) \| 02.2015-03.2023 2.0 Blue dCi 160 (JRAM) - 1997ccm, 160pk, 118kw - M9R 650, M9R 712
	ESPACE V (JR_) \| 02.2015-03.2023 2.0 Blue dCi 200 (JRAL) - 1997ccm, 200pk, 147kw - M9R 650
	GRAND SCÉNIC
	GRAND SCÉNIC III (JZ0/1_) \| 02.2009-09.2016 2.0 dCi (JZ0L) - 1995ccm, 160pk, 118kw - M9R 610
	GRAND SCÉNIC III (JZ0/1_) \| 02.2009-09.2016 2.0 dCi (JZ0Y, JZ26) - 1995ccm, 150pk, 110kw - M9R 615
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.2 TCe 115 - 1198ccm, 115pk, 85kw - H5F 408
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.2 TCe 130 - 1198ccm, 130pk, 96kw - H5F 408
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.3 TCe 115 (R9N9) - 1332ccm, 115pk, 85kw - H5H 450, H5H 470
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.3 TCe 140 (R9NB) - 1332ccm, 140pk, 103kw - H5H 450, H5H 470, H5H 490
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.3 TCe 160 - 1332ccm, 163pk, 120kw - H5H 450
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.3 TCe 160 (R9NC) - 1332ccm, 158pk, 116kw - H5H 470
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.3 TCe 160 (R9NC) - 1332ccm, 159pk, 117kw - H5H 470
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.5 dCi 110 (R9A3) - 1461ccm, 110pk, 81kw - K9K 646, K9K 647, K9K 649
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.5 dCi 110 Hybrid Assist (R9AE, R9A3) - 1461ccm, 110pk, 81kw - K9K 500, K9K 648, K9K 502
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.5 dCi 95 Hybrid Assist (R9A3) - 1461ccm, 95pk, 70kw - K9K 646
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.7 Blue dCi 120 (R9A7, R9A8) - 1749ccm, 120pk, 88kw - R9N 401, R9N 400
	GRAND SCÉNIC IV (R9_) \| 09.2016-03.2023 1.7 Blue dCi 150 (R9A7, R9A8) - 1749ccm, 150pk, 110kw - R9N 401
	LAGUNA Coupe
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811, F4Rt 811
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 2.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,... - 1995ccm, 150pk, 110kw - M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 748, M9R 754, M9R 808, M9R 845
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 2.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 806, M9R 857, M9R 849
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 2.0 dCi GT (DT11, DT1E, DT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
	LAGUNA Coupe (DT0/1) \| 09.2008-12.2015 3.0 dCi - 2998ccm, 241pk, 177kw - V9X 891
	LAGUNA III
	LAGUNA III (BT0/1) \| 10.2007-12.2015 2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,... - 1995ccm, 150pk, 110kw - M9R 742, M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 746, M9R 748, M9R 754, M9R 808, M9R 845
	LAGUNA III (BT0/1) \| 10.2007-12.2015 2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S) - 1995ccm, 131pk, 96kw - M9R 742, M9R 744, M9R 802, M9R 814, M9R 854, M9R 858
	LAGUNA III (BT0/1) \| 10.2007-12.2015 2.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 858, M9R 806, M9R 857, M9R 849
	LAGUNA III (BT0/1) \| 10.2007-12.2015 2.0 dCi GT (BT11, BT1E, BT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
	LAGUNA III (BT0/1) \| 10.2007-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
	LAGUNA III (BT0/1) \| 10.2007-12.2015 3.0 dCi (BT03, BT13) - 2998ccm, 235pk, 173kw - V9X 891, V9X 791
	LAGUNA III (BT0/1) \| 10.2007-12.2015 3.5 V6 (BT0C, BT0P) - 3498ccm, 238pk, 175kw - V4Y 713
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 2.0 dCi (KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W) - 1995ccm, 150pk, 110kw - M9R 742, M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 808, M9R 845
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 2.0 dCi (KT07, KT0J, KT14, KT1A, KT1S) - 1995ccm, 131pk, 96kw - M9R 742, M9R 744, M9R 802, M9R 814, M9R 854, M9R 858
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 2.0 dCi (KT0M, KT0N, KT0S, KT19, KT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 858, M9R 806, M9R 857, M9R 849
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 2.0 dCi GT (KT11, KT1E, KT1N) - 1995ccm, 178pk, 131kw - M9R 816, M9R 820, M9R 828
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 2.0 GT - 1998ccm, 204pk, 150kw - F4R 800
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 3.0 dCi (KT03, KT13) - 2998ccm, 235pk, 173kw - V9X 891, V9X 791
	LAGUNA III Sport Tourer (KT0/1) \| 10.2007-12.2015 3.5 V6 (KT0C, KT0P) - 3498ccm, 238pk, 175kw - V4Y 713
	LATITUDE
	LATITUDE (L70_) \| 07.2010-??? 1.6 RS (L705) - 1618ccm, 180pk, 132kw - M5M 400
	LATITUDE (L70_) \| 07.2010-??? 3.0 dCi 240 (L70G) - 2998ccm, 241pk, 177kw - V9X 891
	MEGANE E-TECH
	MEGANE E-TECH SUV \| 11.2021-??? EV40 (BNJ2) - ccm, 131pk, 96kw - 6AM 402
	MEGANE E-TECH SUV \| 11.2021-??? EV60 (BNJ1) - ccm, 218pk, 160kw - 6AM 402
	MEGANE III
	MEGANE III Grandtour (KZ0/1) \| 11.2008-01.2016 2.0 TCe - 1998ccm, 220pk, 162kw - F4R 874
	MEGANE III Hatchback (BZ0/1_, B3_) \| 11.2008-03.2017 2.0 TCe - 1998ccm, 190pk, 140kw - F4R 872
	MEGANE III Hatchback (BZ0/1_, B3_) \| 11.2008-03.2017 2.0 TCe (BZ0K) - 1998ccm, 180pk, 132kw - F4R 870
	MEGANE III Hatchback (BZ0/1_, B3_) \| 11.2008-03.2017 2.0 TCe 220 - 1998ccm, 220pk, 162kw - F4R 874
	MEGANE IV
	MEGANE IV Grandtour (K9A/M/N_) \| 04.2016-??? 1.6 dCi 165 - 1598ccm, 163pk, 120kw - R9M 452
	MEGANE IV Grandtour (K9A/M/N_) \| 04.2016-??? 1.6 TCe 205 - 1618ccm, 205pk, 151kw - M5M 450
	MEGANE IV Hatchback (B9A/M/N_) \| 11.2015-??? 1.6 dCi 165 - 1598ccm, 163pk, 120kw - R9M 452
	MEGANE IV Hatchback (B9A/M/N_) \| 11.2015-??? 1.6 TCe 165 - 1618ccm, 165pk, 121kw - M5M 450
	MEGANE IV Hatchback (B9A/M/N_) \| 11.2015-??? 1.6 TCe 205 (B9MV) - 1618ccm, 205pk, 151kw - M5M 450
	SCÉNIC IV
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.2 TCe 115 - 1198ccm, 115pk, 85kw - H5F 408
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.2 TCe 130 - 1197ccm, 130pk, 96kw - H5F 408
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.3 TCe 115 (J9N9) - 1332ccm, 115pk, 85kw - H5H 450, H5H 470
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.3 TCe 140 - 1332ccm, 140pk, 103kw - H5H 450, H5H 470
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.3 TCe 160 - 1332ccm, 163pk, 120kw - H5H 450
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.3 TCe 160 (J9NC) - 1332ccm, 159pk, 117kw - H5H 470
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.5 dCi 110 - 1461ccm, 110pk, 81kw - K9K 646, K9K 647
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.5 dCi 110 Hybrid Assist (J9AE) - 1461ccm, 110pk, 81kw - K9K 500, K9K 502
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.5 dCi 95 - 1461ccm, 95pk, 70kw - K9K 846, K9K 646, K9K 648
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.6 dCi 130 - 1598ccm, 130pk, 96kw - R9M 409
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.7 Blue dCi 120 (J9A7, J9A8) - 1749ccm, 120pk, 88kw - R9N 401, R9N 400
	SCÉNIC IV (J9_) \| 09.2016-07.2022 1.7 Blue dCi 150 (J9A7, J9A8) - 1749ccm, 150pk, 110kw - R9N 401, R9N 400
	TALISMAN
	TALISMAN (LP_) \| 06.2015-03.2022 1.3 TCe 140 (LPNB) - 1332ccm, 140pk, 103kw - H5H 490
	TALISMAN (LP_) \| 06.2015-03.2022 1.3 TCe 160 (LPNC) - 1332ccm, 160pk, 117kw - H5H 470
	TALISMAN (LP_) \| 06.2015-03.2022 1.3 TCe 160 (LPNC, LPNB) - 1332ccm, 158pk, 116kw - H5H 470, H5H 490
	TALISMAN (LP_) \| 06.2015-03.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452, R9M 453
	TALISMAN (LP_) \| 06.2015-03.2022 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450
	TALISMAN (LP_) \| 06.2015-03.2022 1.7 Blue dCi 120 (LPA7) - 1749ccm, 120pk, 88kw - R9N 401
	TALISMAN (LP_) \| 06.2015-03.2022 1.7 Blue dCi 150 (LPA8) - 1749ccm, 150pk, 110kw - R9N 401
	TALISMAN (LP_) \| 06.2015-03.2022 1.8 TCe 225 (LPM1) - 1798ccm, 224pk, 165kw - M5P 403
	TALISMAN (LP_) \| 06.2015-03.2022 2.0 Blue dCi 160 (LPAM) - 1997ccm, 160pk, 118kw - M9R 650
	TALISMAN (LP_) \| 06.2015-03.2022 2.0 Blue dCi 190 (LPAL, LPAM) - 1997ccm, 189pk, 139kw - M9R 650, M9R 712
	TALISMAN (LP_) \| 06.2015-03.2022 2.0 Blue dCi 200 (LPAL) - 1997ccm, 200pk, 147kw - M9R 650
	TALISMAN Grandtour
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.3 TCe 140 (KPNB) - 1332ccm, 140pk, 103kw - H5H 490
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.3 TCe 160 (KPNC) - 1332ccm, 160pk, 117kw - H5H 470
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.3 TCe 160 (KPNC) - 1332ccm, 158pk, 116kw - H5H 470, H5H 490
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.6 dCi 160 - 1598ccm, 160pk, 118kw - R9M 452, R9M 453
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.6 TCe 200 - 1618ccm, 200pk, 147kw - M5M 450
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.7 Blue dCi 120 (KPA7) - 1749ccm, 120pk, 88kw - R9N 401
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.7 Blue dCi 150 (KPA8) - 1749ccm, 150pk, 110kw - R9N 401
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 1.8 TCe 225 (KPM1) - 1798ccm, 224pk, 165kw - M5P 403
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 2.0 Blue dCi 160 (KPAM) - 1997ccm, 160pk, 118kw - M9R 650
	TALISMAN Grandtour (KP_) \| 03.2016-03.2022 2.0 Blue dCi 200 (KPAL) - 1997ccm, 200pk, 147kw - M9R 650

Original part numbers

40 20 600 03R	RENAULT
40 20 641 55R	RENAULT
86 60 001 234	RENAULT
40 20 656 46R	RENAULT
40 20 617 92R	RENAULT
