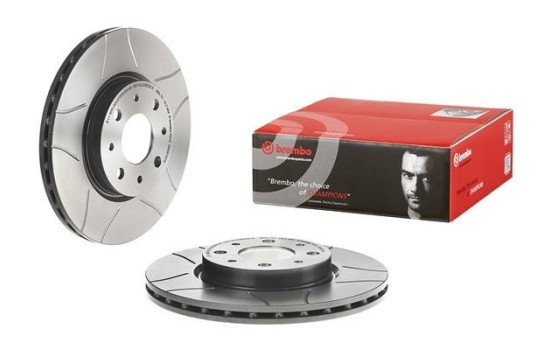

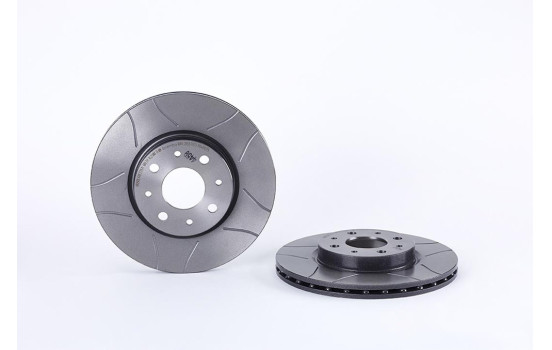

Brake Disc BREMBO MAX LINE 09.5870.75
Product number: 0163873
Manufacturer number: 09.5870.75
EAN: 8020584011409
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
- Specifications
- Applicability
- Original part numbers
- Manufacturer
- Delivery time
- Reviews 1
- Questions?
- Manual
-
Specifications
torque [Nm]: 8.6
For maximum wet performance, Brembo Max is the
affordable grooved and coated brake disc for enthusiasts.

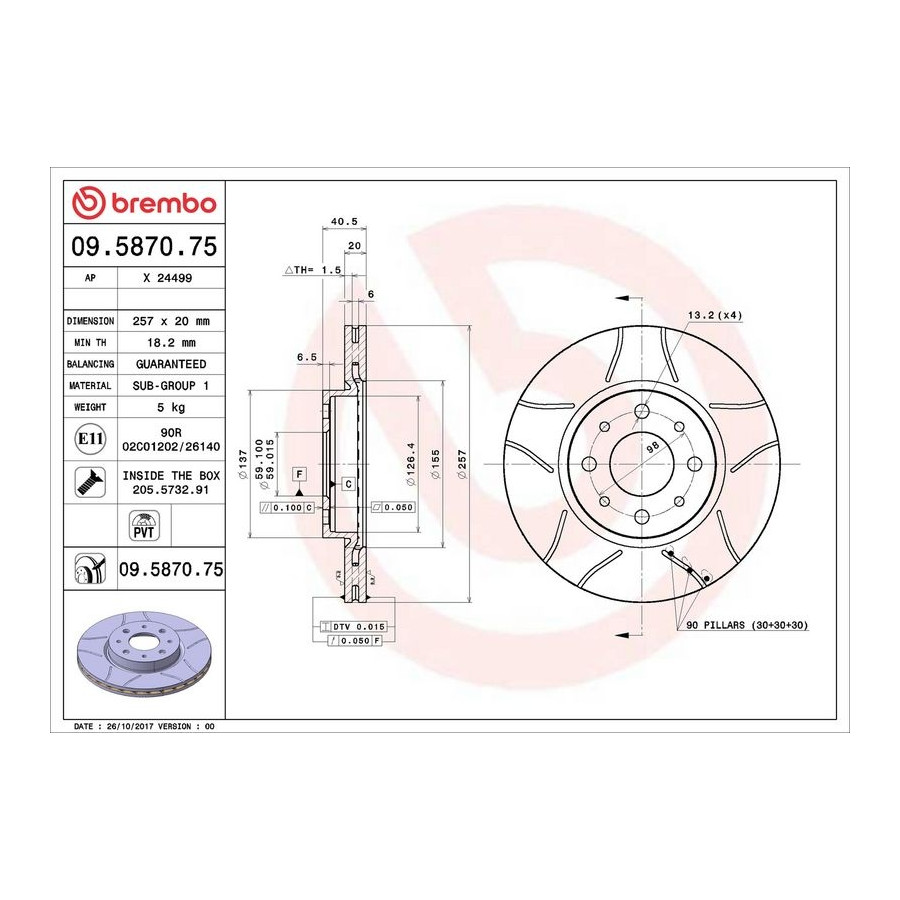

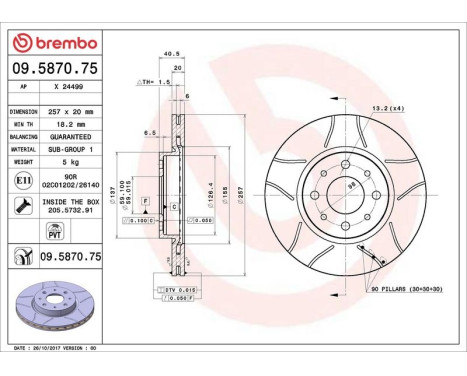

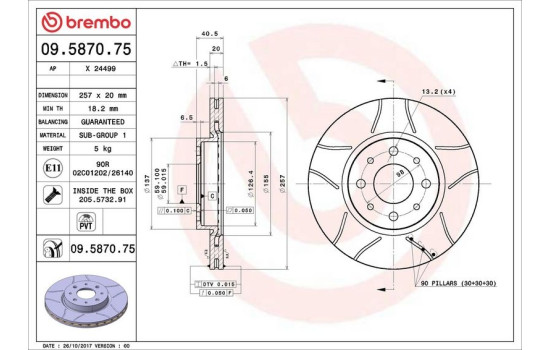

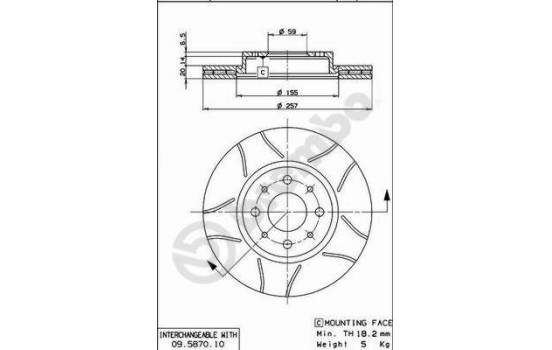

Outer diameter [mm] 257 Brake Disc Type Internally Vented Internal ventilation Diameter [mm] 257 Surface Anticorrosion coating Coated Number of Holes 4 Brake pads Exclusive Brake Disc Type Notched Centering Diameter [mm] 59 Torque [Nm] 86 Guarantee 2 years Height [mm] 41 Additional information With screws Brake disc thickness (mm) 20 Minimum thickness (mm) 18,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 16046 ABE C3F003ABE AISIN P6F954S AP 24499 E AP 24499 V AP X 24499 ASAM 55538 ASHIKA 60-00-0230 ATE 24.0120-0142.1 BARUM BAR20142 BELACO BDS1100 BLUE PRINT ADL144322 BORG & BECK BBD4055 BOSCH 0 986 479 W68 BOSCH 0 986 478 515 BRECO BV 8142 BRECO BS 8142 BREMBO 09.5870.75 (this product) BREMBO 09.5870.75 BREMBO 09.5870.14 BREMBO 09.5870.11 BREMSI CD6521V CHAMPION 561861CH DELPHI BG2830 DENCKERMANN B130029 DON PCD11182 Dr!ve+ DP1010.11.0728 EUROBRAKE 5815209921 EUROBRAKE 5815319921 FAST FT31016 FEBI BILSTEIN 10617 FERODO DDF521 FERODO DDF521C FI.BA FBD106 FTE BS3593 FTE 9072589 GALFER B1.G220-0142.1 GIRLING 6026861 HELLA 8DD 355 127-151 HELLA 8DD 355 103-871 HELLA PAGID 8DD 355 103-871 HELLA PAGID 8DD 355 127-151 JAPANPARTS DI-0230 JAPKO 600230 JURID 561861JC JURID 561861J KAWE 6189 10 KLAXCAR FRANCE 25609z KRAFT AUTOMOTIVE 6043070 LORO 231-03-050 Manufacturer Manufacturer number Price MAGNETI MARELLI 360406021905 MAGNETI MARELLI 360406021900 MAGNETI MARELLI 361302040234 MAGNETI MARELLI 353611519240 MAPCO 15032 MAPCO 15032C MASTER-SPORT 24012001421-PCS-MSP MASTER-SPORT 24012001421-SET-MSP MASTER-SPORT 24012001421PR-PCS-MS MASTER-SPORT 24012001421PR-PCS-MSP MASTER-SPORT 24012001421-PCS-MS MASTER-SPORT 24012001421-SET-MS MAXGEAR 19-0703SPORT MAXGEAR 19-0703MAX MAXGEAR 19-0703 MAXTECH 877211 METZGER 6110091 MEYLE 215 521 0008 MINTEX MDC615 NK 209921 NK 319921 OPEN PARTS BDR1146.20 OPEN PARTS BDA1146.20 OPTIMAL BS-1890 OPTIMAL BS-1890C Omnicraft 2133998 PILENGA V014 QUARO QD9833 REMSA 6189.10 ROADHOUSE 6189.10 ROTINGER RT 2531-GL ROTINGER RT 2531 ROTINGER RT 2531-GL T3 ROTINGER RT 2531-GL T9 ROTINGER RT 2531-GL T5 ROTINGER RT 2531-GL T6 STELLOX 6020-9921VK-SX STELLOX 6020-9921V-SX SWAG 70 91 0617 TEXTAR 92068503 TEXTAR 92068500 TRW DF2686 VAICO V24-80001 VALEO 186153 VALEO 886153 WAGNER WGR0521-1 WOKING D6189.10 ZIMMERMANN 230.2359.52 ZIMMERMANN 230.2359.20 -
Applicability
ALFA ROMEO 155 155 (167_) | 01.1992-12.1997 1.6 16V T.S. (167.A6A) - 1598ccm, 120pk, 88kw - AR 67601 155 (167_) | 01.1992-12.1997 1.7 T.S. (167.A4D, 167.A4H) - 1748ccm, 115pk, 85kw - AR 67105 155 (167_) | 01.1992-12.1997 1.7 T.S. (167.A4G) - 1748ccm, 113pk, 83kw - AR 67103 155 (167_) | 01.1992-12.1997 1.7 T.S. 16V (167.A4N) - 1747ccm, 140pk, 103kw - AR 67106 155 (167_) | 01.1992-12.1997 1.8 T.S. (167.A4C, 167.A) - 1756ccm, 105pk, 77kw - AR 67402 155 (167_) | 01.1992-12.1997 1.8 T.S. (167A4) - 1773ccm, 129pk, 95kw - AR 67101, AR 67102 155 (167_) | 01.1992-12.1997 1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E) - 1773ccm, 127pk, 93kw - AR 67101, AR 67102 155 (167_) | 01.1992-12.1997 2.0 T.S. (167.A2A, 167.A2D) - 1995ccm, 141pk, 104kw - AR 67202, AR 67201 155 (167_) | 01.1992-12.1997 2.0 T.S. (167.A2D) - 1995ccm, 144pk, 106kw - AR 67202, AR 67201 FIAT BARCHETTA BARCHETTA (183_) | 04.1995-05.2005 1.8 16V - 1747ccm, 130pk, 96kw - 183 A1.000, 188 A6.000 BRAVA BRAVA (182_) | 10.1995-12.2002 1.6 16V (182.BB) - 1581ccm, 103pk, 76kw - 182 A4.000 BRAVA (182_) | 10.1995-12.2002 1.8 GT 16V (182.BC) - 1747ccm, 113pk, 83kw - 182 A2.000 BRAVA (182_) | 10.1995-12.2002 1.9 JTD - 1910ccm, 100pk, 74kw - 182 B9.000 BRAVA (182_) | 10.1995-12.2002 1.9 JTD 105 - 1910ccm, 105pk, 77kw - 182 B4.000 BRAVA (182_) | 10.1995-12.2002 1.9 TD 100 S (182.BF) - 1910ccm, 100pk, 74kw - 182 A7.000 BRAVO I BRAVO I (182_) | 10.1995-10.2001 1.6 16V (182.AB) - 1581ccm, 103pk, 76kw - 182 A4.000 BRAVO I (182_) | 10.1995-10.2001 1.8 GT (182.AC) - 1747ccm, 113pk, 83kw - 182 A2.000 BRAVO I (182_) | 10.1995-10.2001 1.9 JTD - 1910ccm, 100pk, 74kw - 182 B9.000 BRAVO I (182_) | 10.1995-10.2001 1.9 JTD 105 - 1910ccm, 105pk, 77kw - 182 B4.000 BRAVO I (182_) | 10.1995-10.2001 1.9 TD 100 S (182.AF) - 1910ccm, 100pk, 74kw - 182 A7.000 DOBLO Box DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.2 (223ZXA1A) - 1242ccm, 65pk, 48kw - 223 A5.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.3 JTD 16V - 1248ccm, 70pk, 51kw - 188 A9.000, 188 A8.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.6 16V (223ZXD1A) - 1596ccm, 103pk, 76kw - 182 B6.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.6 Natural Power - 1596ccm, 103pk, 76kw - 182 B6.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.9 D (223ZXB1A) - 1910ccm, 63pk, 46kw - 223 A6.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.9 JTD - 1910ccm, 105pk, 77kw - 223 A7.000, 223 B1.000 DOBLO Box Body/MPV (223_) | 03.2001-01.2010 1.9 JTD (223ZXE1A) - 1910ccm, 100pk, 74kw - 182 B9.000, 223 B2.000 DOBLO MPV DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.2 (223AXA1A) - 1242ccm, 65pk, 48kw - 223 A5.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.3 JTD - 1248ccm, 75pk, 55kw - 199 A2.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.3 JTD 16V - 1248ccm, 70pk, 51kw - 188 A9.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.6 16V (223AXD1A) - 1596ccm, 103pk, 76kw - 182 B6.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.6 Natural Power - 1596ccm, 103pk, 76kw - 182 B6.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.9 D (223AXB1A) - 1910ccm, 63pk, 46kw - 223 A6.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.9 JTD - 1910ccm, 105pk, 77kw - 223 A7.000, 223 B1.000 DOBLO MPV (119_, 223_) | 03.2001-05.2005 1.9 JTD (223AXE1A) - 1910ccm, 100pk, 74kw - 182 B9.000, 223 B2.000 PALIO PALIO (178_, 171_, 371_) | 04.1996-10.2003 1.2 - 1242ccm, 73pk, 54kw - 176 A8.000, 178 B5.000, 178 E2.000 PALIO (178_, 171_, 371_) | 04.1996-10.2003 1.6 16V - 1581ccm, 100pk, 74kw - 178 B3.000 PALIO Weekend PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.2 - 1242ccm, 73pk, 54kw - 178 B5.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.2 (178DYA1A, 178DXS1A) - 1242ccm, 60pk, 44kw - 188 A4.000, 178 C4.066 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.2 (178DYE1A, 178DYE1AAP, 178DYE1AAT) - 1242ccm, 80pk, 59kw - 188 A5.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.6 16V - 1596ccm, 103pk, 76kw - 182 B6.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.6 16V (178DXD1A) - 1581ccm, 100pk, 74kw - 178 B3.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.7 TD - 1698ccm, 70pk, 51kw - 176 A3.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.9 D - 1910ccm, 63pk, 46kw - 223 A6.000 PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 04.1996-01.2012 1.9 JTD - 1910ccm, 80pk, 59kw - 188 A2.000 PUNTO PUNTO (176_) | 09.1993-09.1999 1.4 GT Turbo (176AD_) - 1372ccm, 133pk, 98kw - 176 A4.000 PUNTO (176_) | 09.1993-09.1999 1.4 GT Turbo (176AS_) - 1372ccm, 131pk, 96kw - 176 B6.000 PUNTO (188_) | 09.1999-03.2012 1.3 JTD 16V - 1248ccm, 70pk, 51kw - 188 A9.000 PUNTO (188_) | 09.1999-03.2012 1.4 - 1368ccm, 95pk, 70kw - 843 A1.000 PUNTO (188_) | 09.1999-03.2012 1.4 (188AXM1A, 188BXM1A) - 1368ccm, 97pk, 71kw - 843 A1.000 PUNTO (188_) | 09.1999-03.2012 1.9 JTD - 1910ccm, 86pk, 63kw - 188 A7.000 PUNTO (188_) | 09.1999-03.2012 1.9 JTD 80 (188.237, .257, .337, .357) - 1910ccm, 80pk, 59kw - 188 A2.000 PUNTO Hatchback PUNTO Hatchback Van (188_) | 02.2000-10.2009 1.3 JTD - 1248ccm, 69pk, 51kw - 188 A9.000 PUNTO Hatchback Van (188_) | 02.2000-10.2009 1.9 JTD - 1910ccm, 86pk, 63kw - 188 A7.000 SIENA SIENA (178_, 172_, 372_) | 04.1996-12.2012 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) - 1242ccm, 60pk, 44kw - 188 A4.000, 178 C4.066 SIENA (178_, 172_, 372_) | 04.1996-12.2012 1.6 (178CYC1AAT) - 1596ccm, 103pk, 76kw - 182 B6.000 SIENA (178_, 172_, 372_) | 04.1996-12.2012 1.7 TD - 1698ccm, 69pk, 51kw - 176 A3.000 STRADA Pickup STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.2 - 1242ccm, 73pk, 54kw - 178 B5.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.2 - 1242ccm, 60pk, 44kw - 188 A4.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.3 D Multijet - 1248ccm, 85pk, 62kw - 223 A9.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.3 D Multijet (278AYR1A) - 1248ccm, 95pk, 70kw - 199 B1.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.7 TD - 1698ccm, 69pk, 51kw - 176 A3.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.9 D - 1910ccm, 63pk, 46kw - 223 A6.000 STRADA Pickup (178_, 278_) | 06.1999-12.2006 1.9 JTD - 1910ccm, 80pk, 59kw - 188 A2.000 TEMPRA TEMPRA (159_) | 03.1990-09.1996 1.9 D (159.AG) - 1929ccm, 65pk, 48kw - 149 A1.000, 160 A7.000 TEMPRA (159_) | 03.1990-09.1996 1.9 TD (159.AQ) - 1929ccm, 80pk, 59kw - 160 B6.046 TEMPRA (159_) | 03.1990-09.1996 1.9 TD (159.CU, 159.AU, 159.AI, 159.BI) - 1929ccm, 90pk, 66kw - 160 A6.000, 160 D1.000 TEMPRA (159_) | 03.1990-09.1996 2.0 i.e. (159.AP) - 1995ccm, 113pk, 83kw - 159 A6.046 TEMPRA S.W. TEMPRA S.W. (159_) | 03.1990-08.1996 1.8 i.e. (159.AM) - 1756ccm, 110pk, 81kw - 159 A4.000 TEMPRA S.W. (159_) | 03.1990-08.1996 1.8 i.e. (159.AN) - 1756ccm, 105pk, 77kw - 159 A4.046 TEMPRA S.W. (159_) | 03.1990-08.1996 1.8 i.e. (159.AV) - 1756ccm, 103pk, 76kw - 835 C2.000 TEMPRA S.W. (159_) | 03.1990-08.1996 1.9 D (159.AG) - 1929ccm, 65pk, 48kw - 149 A1.000, 160 A7.000 TEMPRA S.W. (159_) | 03.1990-08.1996 1.9 TD (159.AI, 159.BI, 159.CU, 159.AU) - 1929ccm, 90pk, 66kw - 160 A6.000, 160 D1.000 TEMPRA S.W. (159_) | 03.1990-08.1996 1.9 TD (159.AQ) - 1929ccm, 80pk, 59kw - 160 B6.046 TEMPRA S.W. (159_) | 03.1990-08.1996 2.0 i.e. (159.AP) - 1995ccm, 113pk, 83kw - 159 A6.046 TEMPRA S.W. (159_) | 03.1990-08.1996 2.0 i.e. 4x4 (159.AP) - 1995ccm, 113pk, 83kw - 159 A6.046 TEMPRA S.W. (159_) | 04.1991-07.1996 1.9 D (159AG) - 1929ccm, 65pk, 48kw - 160 A7.000 TIPO TIPO (160_) | 07.1987-10.1995 1.8 i.e. (160.AY) - 1756ccm, 105pk, 77kw - 159 A4.046 TIPO (160_) | 07.1987-10.1995 1.8 i.e. (160.ED) - 1756ccm, 103pk, 76kw - 835 C2.000 TIPO (160_) | 07.1987-10.1995 1.8 i.e.16V Sport - 1756ccm, 136pk, 100kw - 160 A5.000 TIPO (160_) | 07.1987-10.1995 1.9 TD (160.AW) - 1929ccm, 80pk, 59kw - 160 B6.046 TIPO (160_) | 07.1987-10.1995 1.9 TD (160AR) - 1929ccm, 94pk, 69kw - 160 A6.046 TIPO (160_) | 07.1987-10.1995 2.0 - 1995ccm, 116pk, 85kw - 159 A5.046, 159 A6.046 TIPO (160_) | 07.1987-10.1995 2.0 i.e. (160.AJ, 1607571) - 1995ccm, 109pk, 80kw - 159 A5.046 TIPO (160_) | 07.1987-10.1995 2.0 i.e. (160.AT, 160.AJ) - 1995ccm, 113pk, 83kw - 159 A6.046 LANCIA DEDRA DEDRA (835_) | 08.1989-07.1999 2.0 i.e. (835AI) - 1995ccm, 117pk, 86kw - 835 A5.000 DEDRA (835_) | 08.1989-07.1999 2.0 i.e. (835AL) - 1995ccm, 113pk, 83kw - 835 A5.046 -
Original part numbers
60806137 ALFA ROMEO 60810076 ALFA ROMEO 60811256 ALFA ROMEO 60811266 ALFA ROMEO 46416712 FIAT 46423415 FIAT 51749124 FIAT 7645056 FIAT 7779409 FIAT 46423415 LANCIA 71770936 FIAT 6001073185 FIAT (NANJING) 60811266 FIAT 46423415 FIAT (NANJING) 6001073185 FIAT -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
Delivery time
Expected delivery date:
16-05-2024
-
Reviews 1
-
Pass very well. Can recommend to anyone.
-
-
