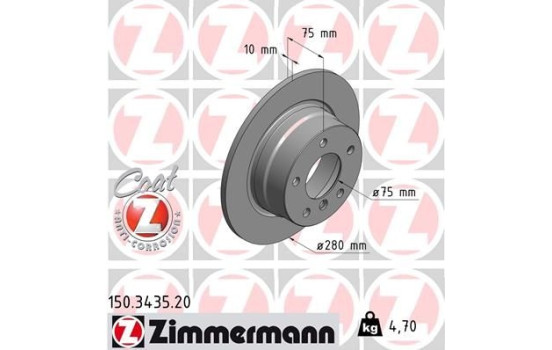

Brake Disc COAT Z 150.3435.20 Zimmermann
Product number: 0847291
Manufacturer number: 150.3435.20
EAN: 4250238744764
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Outer diameter [mm] 280 Fitting Position Rear Axle Rim Hole Number 5 Brake Disc Type Solid Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 120 Centering Diameter [mm] 75 Hole Arrangement / Number 6/5 Machining High-carbon Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 75 Brake disc thickness (mm) 10 Minimum thickness (mm) 8,4 Weight [kg] 4,7 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17801 A.Z. Meisterteile AZMT-44-024-1425 AISIN W6R1550S AMBMI RDB-170 AP 14860 AP 14860 V ATE 24.0110-0287.1 BELACO BDS1976 BLUE PRINT ADB114354 BORG & BECK BBD4707 BOSCH 0 986 479 494 BRECO BV 7659 BRECO BS 7659 BREMBO 08.9859.80 BREMBO 08.9859.81 BREMSI CD7284S Burig B010757 COMLINE ADC1760 DJ PARTS BD2920 DON PCD20952 EUROBRAKE 5815201586 EUROBRAKE 5815311586 FEBI BILSTEIN 28162 FERODO DDF1284C FTE 9082271 FTE 9072576 Manufacturer Manufacturer number Price GH GH-421586 GIRLING 6061064 HELLA 8DD 355 112-641 MAPCO 15659 MASTER-SPORT 24011002871PR-PCS-MSP MASTER-SPORT 24011002871PR-PCS-MS METZGER 6110649 MEYLE 315 523 0027/PD MINTEX MDC1814 MJA MB100929 MOTAQUIP LVBD1395 NATIONAL NBD1458 NK 311586 NK 201586 OPTIMAL BS-8086C PAGID 54460NC RAICAM RD01196 RIDEX 82B0841 SWAG 20 92 8162 TEXTAR 92146003 TRW DF6106 VAICO V20-40022 VALEO 186295 ZIMMERMANN 150.3435.52 ZIMMERMANN 150.3435.20 (this product) -
Applicability
BMW Z4 Roadster Z4 Roadster (E85) | 12.2002-02.2009 2.0 i - 1995ccm, 150pk, 110kw - N46 B20 B Z4 Roadster (E85) | 12.2002-02.2009 2.2 i - 2171ccm, 170pk, 125kw - M54 B22 (226S1) Z4 Roadster (E85) | 12.2002-02.2009 2.5 i - 2494ccm, 192pk, 141kw - M54 B25 (256S5) Z4 Roadster (E85) | 12.2002-02.2009 2.5 i - 2497ccm, 177pk, 130kw - N52 B25 A -
Original part numbers
3421 6 752 545 BMW 3421 6 766 225 BMW 3421 6 794 306 BMW -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
