Brake Disc COAT Z 540.5301.20 Zimmermann
Product number: 0848047
Manufacturer number: 540.5301.20
EAN: 4250238756415
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

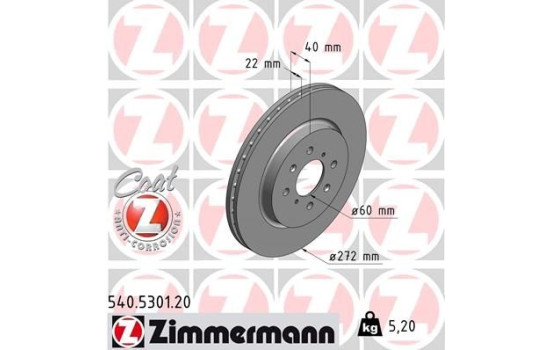

Outer diameter [mm] 272 Fitting Position Front Axle Rim Hole Number 4 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 100 Centering Diameter [mm] 60 Hole Arrangement / Number 8/4 Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 40 Brake disc thickness (mm) 22 Minimum thickness (mm) 20 Weight [kg] 5,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price 7 SEVEN PARTS SV03D0329 A.B.S. 18241 A.Z. Meisterteile AZMT-44-024-2418 AISIN H6F1991S ALLIED NIPPON AND6914 AMBMI RJS-062 AP 25721 V ASHIKA 60-08-830C ASHUKI K016-60 ATE 24.0122-0282.1 BELACO BDS1406 BLUE PRINT ADK84340 BOSCH 0 986 479 789 BOSCH 0 986 479 V08 BRECO BV 9331 BREMBO 09.D252.11 BREMSI CD8410V Burig B011043 CAR 142.1779 COMLINE ADC0936V DACO 603706 DELPHI BG5222C DENCKERMANN B130675 DON PCD15922 EUROBRAKE 5815315236 EUROBRAKE 5815205236 FEBI BILSTEIN 108504 FERODO DDF2410C FI.BA FBD278 FREMAX BD-6065 FTE 9082247 FTE 9072647 GALFER B1.G222-0282.1 GIRLING 6061351 HELLA 8DD 355 123-071 HERTH+BUSS JAKOPARTS J3308032 JAPANPARTS DI-830C JAPKO 60830C JURATEK SUZ133 JURID 562699JC KAMOKA 103566 LORO 231-03-228-2 Manufacturer Manufacturer number Price LORO 231-03-228 LPR S5017V LYNXauto BN-1936 MAGNETI MARELLI 360406202901 MAPCO 45016C MASTER-SPORT 24012202821-PCS-MSP MASTER-SPORT 24012202821-SET-MS MASTER-SPORT 24012202821-SET-MSP MASTER-SPORT 24012202821-PCS-MS MAXGEAR 19-4749 MAXTECH 863523 MEYLE 33-15 521 0026/PD MINTEX MDC2713 MJA MB101023 MOTAQUIP LVBD1773 MOTRIO 8550513985 MOTRIO 8550501932 NAPA NBD5218 NATIONAL NBD1586 NIPPARTS N3308027 NK 205236 NK 315236 OPEN PARTS BDA2659.20 OPTIMAL BS-0292C PAGID 55782NC PILENGA V1901 RAICAM RD01282 RAP BRAKES R-D0153 RIDEX 82B0922 ROTINGER RT 21335-GL T3 ROTINGER RT 21335-GL T6 ROTINGER RT 21335 ROTINGER RT 21335-GL ROTINGER RT 21335-GL T5 ROTINGER RT 21335-GL T9 SAMKO S5017V SKF VKBD 80185 V2 STARK SKBD-0023072 SWAG 33 10 5291 TEXTAR 92278203 TRW DF6135 ZIMMERMANN 540.5301.20 (this product) -
Applicability
SUZUKI SWIFT III SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 (AZG412, ZC72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 (AZH412, AZG412, ZC72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 (AZH412, ZC72S) - 1242ccm, 94pk, 69kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 4WD (AZH412, AZG412, ZD72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 4x4 (AZG412, ZD72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.2 4x4 (AZH412, ZD72S) - 1242ccm, 94pk, 69kw - K12B SWIFT III (FZ, NZ) | 10.2010-04.2017 1.3 DDiS (AZG413D, ZC02S, ZC92S) - 1248ccm, 75pk, 55kw - D13A, D13AA -
Original part numbers
55311-68L50 SUZUKI -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
