Brake Disc FORMULA Z BRAKE DISC 150.3422.70 Zimmermann
Product number: 0848328
Manufacturer number: 150.3422.70
EAN: 4250238704614
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

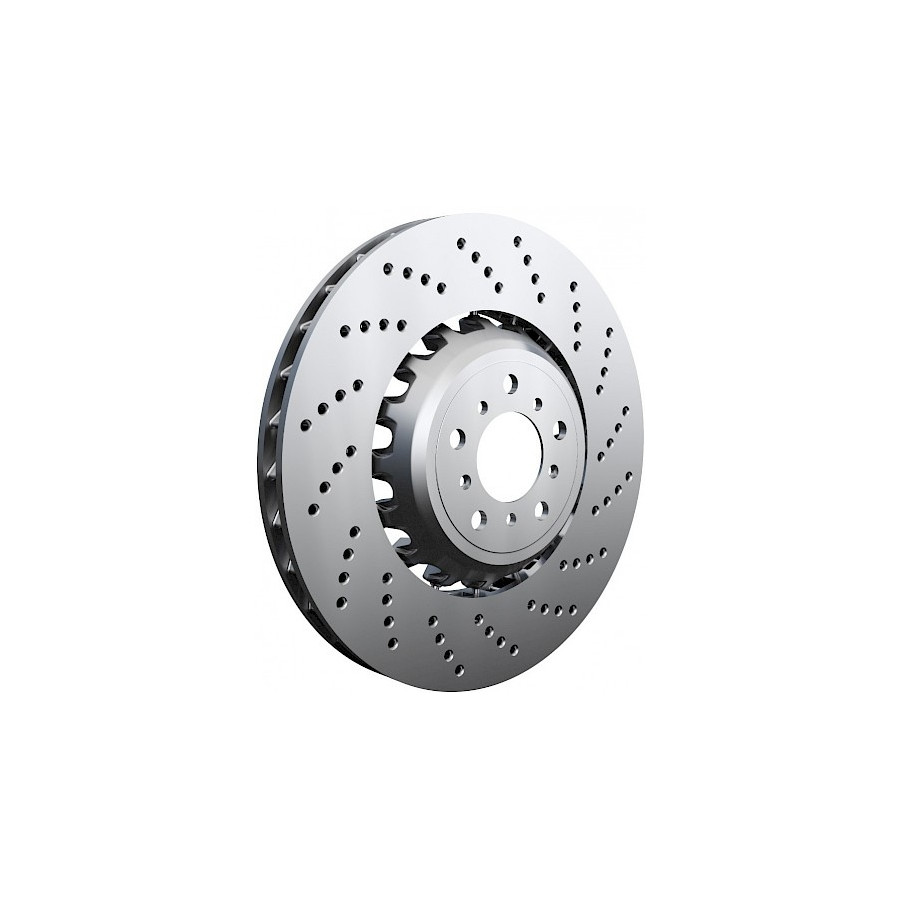

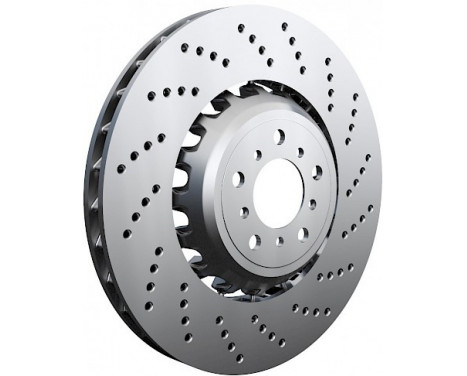

These Zimmermann Formula Z brake discs are specially developed for extreme braking performance. The brake discs are made of lightweight material in combination with a protective coating. Because they have a floating design, they do not deform under heavy loads. They are extremely well suited for the circuit.
Specially developed:
- Specially developed for extreme braking performance
- 15% lower sprung weight, so more comfort
- Do not deform at extreme temperatures due to floating design
- Perforated and therefore better gas discharge and less? Brake fade?
Key benefits
- Equipped with lightweight aluminum hub
- Equipped with rust-resistant Coat Z coating
- High carbon alloy
- Better cooling
Note: the Zimmermann Formula Z brake discs differ per side in design and are therefore sold individually

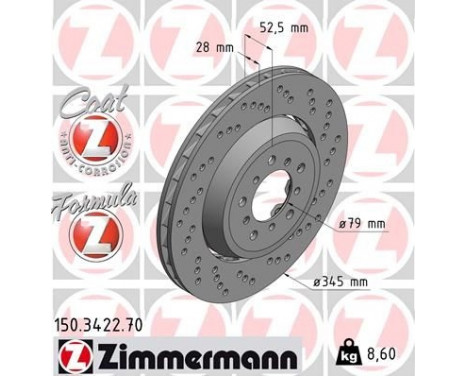

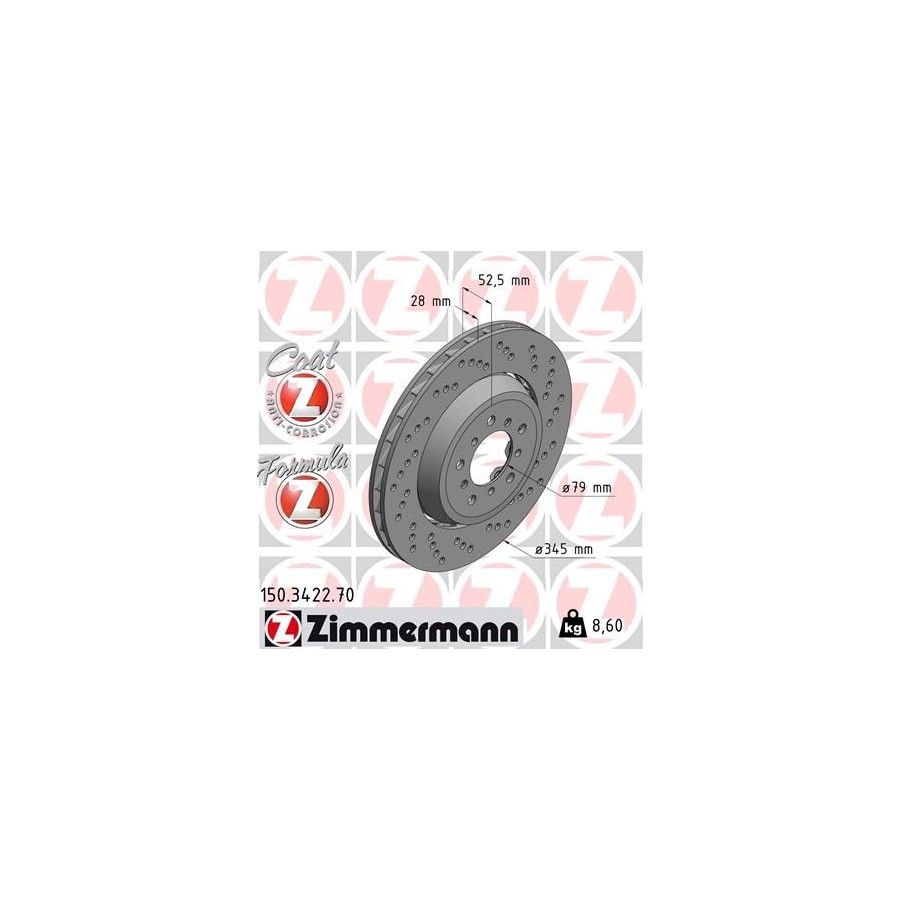

Outer diameter [mm] 345 Rim Hole Number 5 Brake Disc Type Vented Surface Coated Brake pads Exclusive Paired article numbers 150.3421.70 Bolt Hole Circle Ø [mm] 120 Brake Disc Type Perforated Two-piece brake disc Quality Alu-Topf schwimmend Alu hub floating Centering Diameter [mm] 79 Hole Arrangement / Number 10/5 Machining Alloyed / High-carbon Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 52 Brake disc thickness (mm) 28 Minimum thickness (mm) 26,4 Weight [kg] 8,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17735 ATE 24.0128-0209.2 Manufacturer Manufacturer number Price ZIMMERMANN 150.3422.70 (this product) -
Applicability
BMW 3 Coupe 3 Coupe (E46) | 12.1998-07.2006 M3 - 3246ccm, 343pk, 252kw - S54 B32 (326S4) 3 Coupe (E46) | 12.1998-07.2006 M3 CSL - 3246ccm, 360pk, 265kw - S54 B32 (326S4) Z4 Coupe Z4 Coupe (E86) | 04.2006-08.2008 M - 3246ccm, 343pk, 252kw - S54 B32 (326S4) Z4 Roadster Z4 Roadster (E85) | 12.2002-02.2009 M - 3246ccm, 343pk, 252kw - S54 B32 (326S4) -
Original part numbers
3411 2 282 446 BMW -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
