Zimmermann

Brake Disc FORMULA Z BRAKE DISC 430.2632.70 Zimmermann

Brake Disc FORMULA Z BRAKE DISC 430.2632.70 Zimmermann Brake Disc FORMULA Z BRAKE DISC 430.2632.70 Zimmermann, Image 2

Product number: 0848337

Manufacturer number: 430.2632.70

EAN: 4250238759553

€ 423,59

Incl. VAT
View product specifications
Not available
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

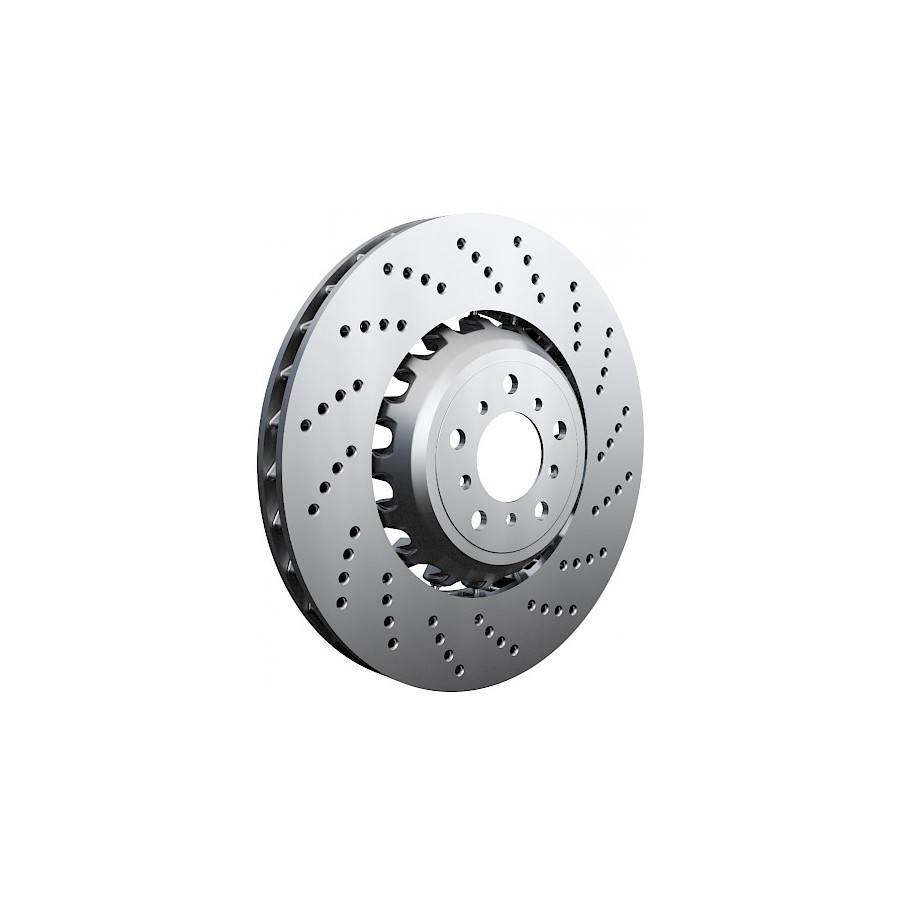

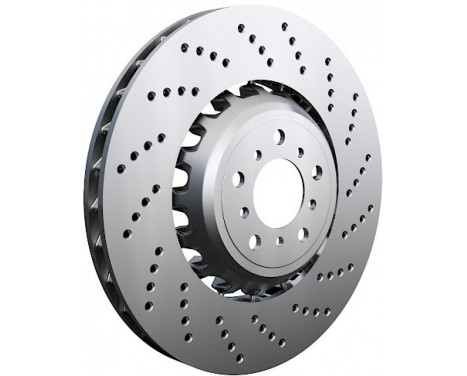

    These Zimmermann Formula Z brake discs are specially designed for extreme braking performance. They are constructed of lightweight material with a protective coating. Their floating design prevents deformation under heavy loads, making them ideal for track use.

    Specially developed:

    • Specially developed for extreme braking performance
    • 15% lower sprung weight, so more comfort
    • Do not deform at extreme temperatures due to floating design
    • Perforated for better gas drainage and less brake fade

    Key Benefits

    • Equipped with a lightweight aluminum hub
    • Provided with rust-resistant Coat Z coating
    • High carbon alloy
    • Better cooling

    Please note: the Zimmermann Formula Z brake discs sometimes differ in design per side and are then sold individually.

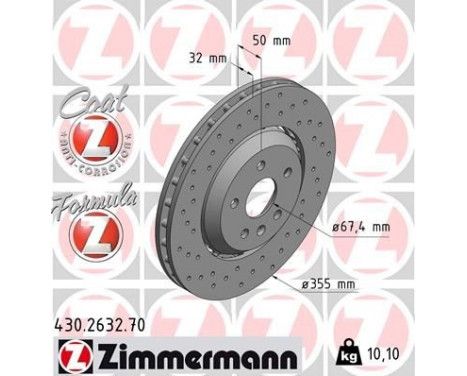

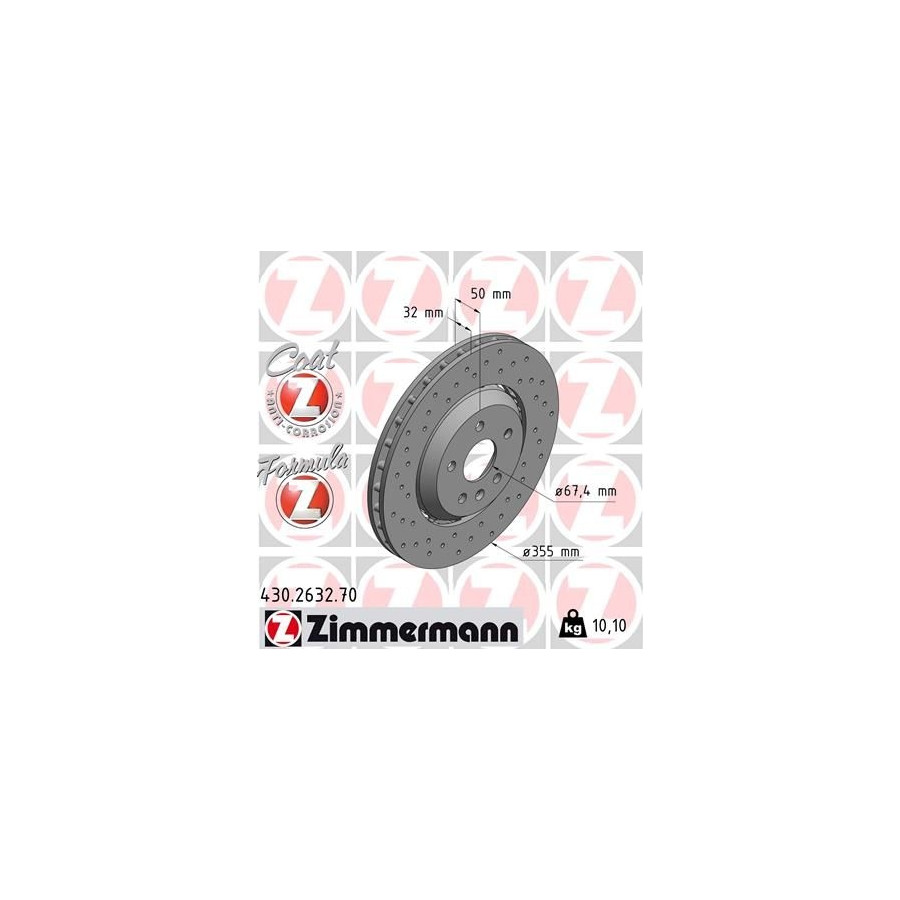

    Outer diameter [mm]355
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypeVented
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]120
    Brake Disc TypePerforated
    Two-piece brake disc
    Floating brake disc
    Aluminum brake disc head
    Centering Diameter [mm]67
    Hole Arrangement / Number6/5
    MachiningAlloyed / High-carbon
    Inspection TagKBA 61183
    Guarantee2 years
    Height [mm]50
    Brake disc thickness (mm)32
    Minimum thickness (mm)30,0
    Weight [kg]10,10

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18895
    AP 25548 Z
    BRECO BZ 9158
    BREMBO 09.A804.33
    € 370,15
    Manufacturer Manufacturer number Price
    CAR 242.1924
    MAGNETI MARELLI 360406129503
    ZIMMERMANN 430.2632.70 (this product)

  • Applicability

    OPEL
    INSIGNIA A
    INSIGNIA A (G09) | 07.2008-03.2017 2.8 V6 Turbo OPC 4x4 (68) - 2792ccm, 325pk, 239kw - A 28 NER, B 28 NER
    INSIGNIA A Saloon (G09) | 07.2008-03.2017 2.8 V6 Turbo OPC 4x4 (69) - 2792ccm, 325pk, 239kw - A 28 NER, B 28 NER
    INSIGNIA A Sports Tourer (G09) | 07.2008-03.2017 2.8 V6 Turbo OPC 4x4 (35) - 2792ccm, 325pk, 239kw - A 28 NER, B 28 NER
    SAAB
    9-5
    9-5 (YS3G) | 05.2010-01.2012 2.8 Turbo V6 XWD - 2792ccm, 301pk, 221kw - A 28 NER
    VAUXHALL
    INSIGNIA Mk
    INSIGNIA Mk I (A) Hatchback (G09) | 07.2008-05.2017 2.8 V6 Turbo 4x4 (68) - 2792ccm, 260pk, 191kw - A 28 NET
    INSIGNIA Mk I (A) Hatchback (G09) | 07.2008-05.2017 2.8 VXR (68) - 2792ccm, 325pk, 239kw - A 28 NER, B 28 NER
    INSIGNIA Mk I (A) Saloon (G09) | 07.2008-05.2017 2.8 VXR (69) - 2792ccm, 325pk, 239kw - A 28 NER
    INSIGNIA Mk I (A) Sports Tourer (G09) | 07.2008-05.2017 2.8 VXR (35) - 2792ccm, 325pk, 239kw - A 28 NER

  • Original part numbers

    569 068 OPEL
    13273625 SAAB
    13476989 GENERAL MOTORS
    13273625 GENERAL MOTORS

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
