Brake Disc SPORT BRAKE DISC COAT Z 180.3015.52 Zimmermann

Video

Product number: 0846668

Manufacturer number: 180.3015.52

EAN: 4250238749028

€ 81,⁸⁰

Incl. VAT

View product specifications

Not available

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

Specifications

Upgrade your braking system with Zimmerman Sport Z brake rotors.

These brake discs feature perforated ventilation holes. This design ensures better water and dirt drainage and prevents brake fade. These brake discs are also ideal for colder and wet conditions.

Grooved design:

Perforated for better gas drainage
Rust-resistant coating

Key benefits:

German quality
Less brake fading
Better braking performance
Perfect fit

Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.

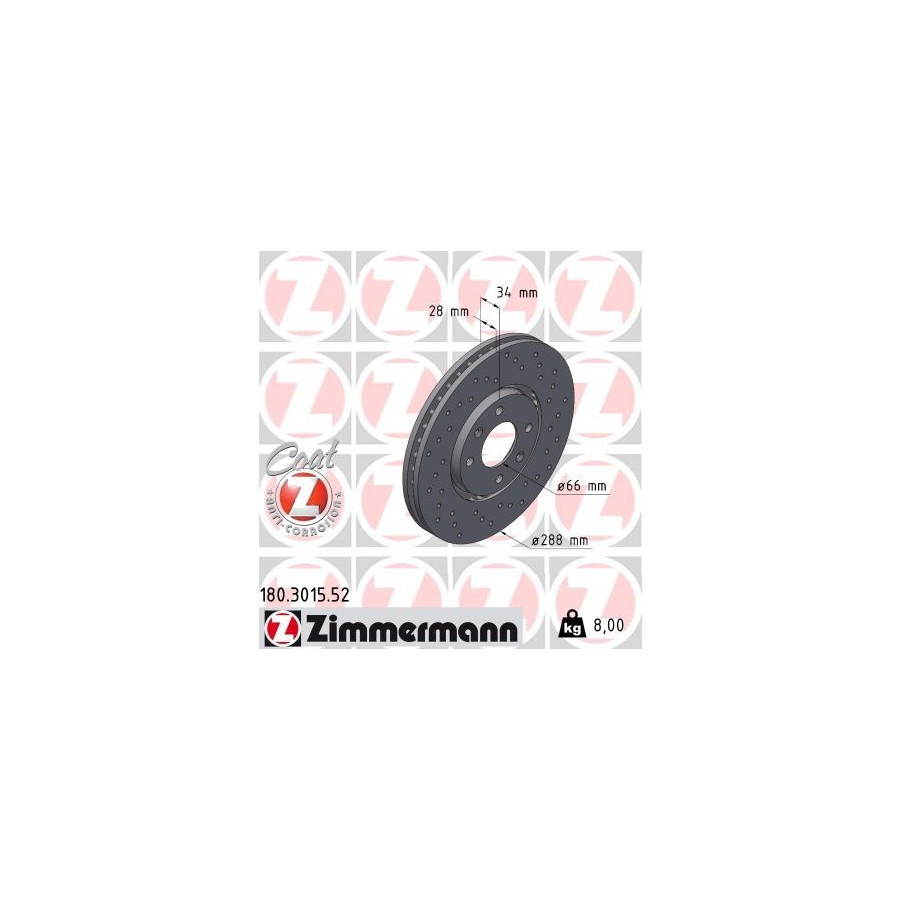

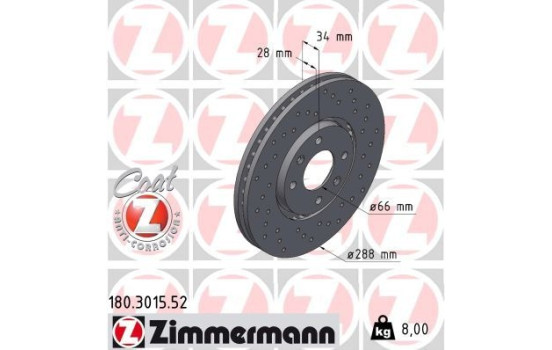

Outer diameter [mm]	288
Fitting Position	Front Axle
Rim Hole Number	4
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	108
Brake Disc Type	Ventilated outside
Brake Disc Type	Perforated
Centering Diameter [mm]	66
Hole Arrangement / Number	6/4
Inspection Tag	ECE R90 APPROVED
Guarantee	2 years
Height [mm]	34
Brake disc thickness (mm)	28
Minimum thickness (mm)	26
Weight [kg]	8

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	16901	€ 44,92
AP	24761 V
AP	24761
ASAM	102149
ASHIKA	60-00-0607C
BELACO	BDS1286
BLUE PRINT	ADP154310	€ 44,43
BOSCH	0 986 478 980	€ 44,04
BRECO	BS 8358
BRECO	BV 8358
BREMBO	09.7877.10
BREMBO	09.7877.11	€ 53,67
BREMSI	CD7106V
CHAMPION	562131CH
DON	PCD12092
Dr!ve+	DP1010.11.0328
EUROBRAKE	5815311928
EUROBRAKE	5815201928
FEBI BILSTEIN	22923	€ 43,19
FERODO	DDF1106	€ 65,70
FREMAX	BD-4753
FTE	9082765
HELLA	8DD 355 107-841
JAPANPARTS	DI-0607C
JAPKO	600607C
JURID	562131JC
KRAFT AUTOMOTIVE	6046020
MAGNETI MARELLI	360406018601
MASTER-SPORT	24012801281-PCS-MS

Manufacturer	Manufacturer number	Price
MASTER-SPORT	24012801281-SET-MS
MASTER-SPORT	24012801281PR-PCS-MS
MASTER-SPORT	24012801281-SET-MSP
MASTER-SPORT	24012801281PR-PCS-MSP
MASTER-SPORT	24012801281-PCS-MSP
MAXTECH	875621
METZGER	6110562
MEYLE	40-15 521 1000	€ 55,75
MINTEX	MDC1333
NK	201928
NK	311928
OPEN PARTS	BDA1865.20
OPEN PARTS	BDR1865.20
PAGID	50327N
QUARO	QD9080
ROTINGER	RT 20032-GL T9
ROTINGER	RT 20032-GL
ROTINGER	RT 20032
ROTINGER	RT 20032-GL T6
ROTINGER	RT 20032-GL T3
ROTINGER	RT 20032-GL T5
STELLOX	6020-1928VK-SX
STELLOX	6020-1928V-SX
SWAG	64 92 2923
TEXTAR	92107800	€ 57,60
VALEO	197220
ZIMMERMANN	180.3015.20	€ 49,48
ZIMMERMANN	180.3015.52	(this product)

Applicability

CITROEN

	C5 I
	C5 I (DC_) \| 03.2001-08.2004 2.0 HDi (DCRHYB) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	C5 I (DC_) \| 03.2001-08.2004 2.0 HDi (DCRHZB, DCRHZE) - 1997ccm, 109pk, 80kw - RHZ (DW10ATED)
	C5 I (DC_) \| 03.2001-08.2004 2.2 HDi (DC4HXB, DC4HXE) - 2179ccm, 133pk, 98kw - 4HX (DW12TED4)
	C5 I (DC_) \| 03.2001-08.2004 3.0 V6 (DCXFXC, DCXFXF) - 2946ccm, 207pk, 152kw - XFX (ES9J4S)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 16V HPi (DERLZB) - 1997ccm, 140pk, 103kw - RLZ (EW10D)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 HDi (DERHYB) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.2 HDi (DE4HXB, DE4HXE) - 2179ccm, 133pk, 98kw - 4HX (DW12TED4)
	C5 I Estate (DE_) \| 06.2001-08.2004 3.0 Carlsson - 2946ccm, 235pk, 173kw - XFX (ES9J4S)
	C5 I Estate (DE_) \| 06.2001-08.2004 3.0 V6 (DEXFXC, DEXFXF) - 2946ccm, 207pk, 152kw - XFX (ES9J4S)
	C5 II
	C5 II (RC_) \| 09.2004-09.2008 2.0 HDi (RCRHRH) - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	C5 II (RC_) \| 09.2004-09.2008 2.2 HDi - 2179ccm, 170pk, 125kw - 4HT (DW12BTED4)
	C5 II (RC_) \| 09.2004-09.2008 2.2 HDi (RC4HXE) - 2179ccm, 133pk, 98kw - 4HX (DW12TED4)
	C5 II (RC_) \| 09.2004-09.2008 3.0 V6 (RCXFUF) - 2946ccm, 207pk, 152kw - XFX (ES9J4S), XFU (ES9A)
	C5 II Break (RE_) \| 09.2004-08.2008 2.0 HDi (RERHRH) - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	C5 II Break (RE_) \| 09.2004-08.2008 2.2 HDi (RE4HPE, RE4HP2, RE4HRE, RE4HR2) - 2179ccm, 163pk, 120kw - 4HP (DW12BTED4), 4HR (DW12BTED4)
	C5 II Break (RE_) \| 09.2004-08.2008 2.2 HDi (RE4HTE, RE4HT2) - 2179ccm, 170pk, 125kw - 4HT (DW12BTED4)
	C5 II Break (RE_) \| 09.2004-08.2008 2.2 HDi (RE4HXE) - 2179ccm, 133pk, 98kw - 4HX (DW12TED4)
	C5 II Break (RE_) \| 09.2004-08.2008 3.0 V6 (REXFUF) - 2946ccm, 207pk, 152kw - XFU (ES9A)
	XANTIA
	XANTIA (X1_, X2_) \| 03.1993-04.2003 2.0 HDI 109 - 1997ccm, 109pk, 80kw - RHZ (DW10ATED)
	XANTIA (X1_, X2_) \| 03.1993-04.2003 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	XANTIA (X1_, X2_) \| 03.1993-04.2003 3.0 i 24V - 2946ccm, 190pk, 140kw - XFZ (ES9J4)
	XANTIA Estate
	XANTIA Estate (X1_, X2_) \| 06.1995-04.2003 2.0 HDI 109 - 1997ccm, 109pk, 80kw - RHZ (DW10ATED)
	XANTIA Estate (X1_, X2_) \| 06.1995-04.2003 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	XANTIA Estate (X1_, X2_) \| 06.1995-04.2003 3.0 V6 - 2946ccm, 190pk, 140kw - XFZ (ES9J4)

Original part numbers

16 063 087 80	CITROËN/PEUGEOT
4246.R6	CITROËN/PEUGEOT
4246.T8	CITROËN/PEUGEOT
4246.W3	CITROËN/PEUGEOT
4249.H1	CITROËN/PEUGEOT
4249 H1	CITROËN
4246 W3	CITROËN

Manufacturer

Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
