Brake Disc SPORT BRAKE DISC COAT Z 290.2264.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 290.2264.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 290.2264.52 Zimmermann, Image 2

Product number: 0846740

Manufacturer number: 290.2264.52

EAN: 4250238765172

€ 125,28

Incl. VAT
View product specifications
In stock
Delivery 08-05-2025
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

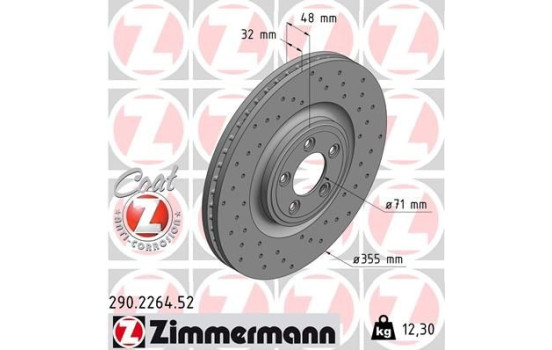

    Outer diameter [mm]355
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Brake Disc TypePerforated
    Centering Diameter [mm]71
    Hole Arrangement / Number5/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Guarantee2 years
    Height [mm]48
    Brake disc thickness (mm)32
    Minimum thickness (mm)30
    Weight [kg]12,4

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18008
    € 71,29
    ABE C3J006ABE-P
    AP 25352 V
    BELACO BDS1703HC
    BLUE PRINT ADJ134302
    € 64,46
    BORG & BECK BBD4731
    BOSCH 0 986 479 754
    € 84,98
    BRECO BV 8962
    BREMBO 09.B556.11
    € 107,40
    BREMSI CD8107V
    COMLINE ADC1252V
    EUROBRAKE 5815311225
    FEBI BILSTEIN 44134
    € 62,53
    FERODO DDF2107C-1
    € 94,80
    FREMAX BD-6764
    GIRLING 6061465
    HELLA 8DD 355 129-071
    HELLA PAGID 8DD 355 129-071
    € 83,72
    JURATEK JAG110
    JURID 562692JC
    JURID 562692JC-1
    KEY PARTS KBD4731
    MAXGEAR 19-3527SPORT
    € 90,98
    MAXGEAR 19-3527
    Manufacturer Manufacturer number Price
    MAXGEAR 19-4917
    MAXTECH 881008
    MEYLE 18-83 521 0008/PD
    € 95,25
    MINTEX MDC2111C
    MINTEX MDC2111
    MOTAQUIP LVBD1636
    NK 311225
    QUARO QD4276
    ROTINGER RT 20801-GL T3
    ROTINGER RT 20801-GL T9
    ROTINGER RT 20801
    ROTINGER RT 20801-GL
    ROTINGER RT 20801-GL T6
    ROTINGER RT 20801-GL T5
    SKF VKBD 81105 V1
    SWAG 99 94 4134
    TEXTAR 92186305
    € 104,27
    TRISCAN 8120 101123C
    TRW DF6146S
    € 69,31
    ZIMMERMANN 290.2264.20
    € 74,04
    ZIMMERMANN 290.2264.55
    ZIMMERMANN 290.2264.54
    ZIMMERMANN 290.2264.52 (this product)

  • Applicability

    JAGUAR
    F-TYPE Convertible
    F-TYPE Convertible (X152) | 10.2012-??? 2.0 Ti4 - 1997ccm, 300pk, 221kw - PT204(AJ20P4)
    F-TYPE Convertible (X152) | 10.2012-??? 3.0 SCV6 - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    F-TYPE Convertible (X152) | 10.2012-??? 3.0 SCV6 S - 2995ccm, 380pk, 280kw - 306PS(AJ126)
    F-TYPE Convertible (X152) | 10.2012-??? 3.0 SCV6 S AWD - 2995ccm, 380pk, 280kw - 306PS(AJ126)
    F-TYPE Convertible (X152) | 10.2012-??? 5.0 SCV8 R - 5000ccm, 551pk, 405kw - 508PS(AJ133)
    F-TYPE Convertible (X152) | 10.2012-??? 5.0 SCV8 R AWD - 5000ccm, 551pk, 405kw - 508PS(AJ133)
    F-TYPE Convertible (X152) | 10.2012-??? 5.0 SCV8 S - 5000ccm, 495pk, 364kw - 508PS(AJ133)
    F-TYPE Convertible (X152) | 10.2012-??? 5.0 SCV8 SVR - 5000ccm, 575pk, 423kw - 508PS(AJ133)
    F-TYPE Convertible (X152) | 10.2012-??? 5.0 SCV8 SVR / SCV8 P575 R AWD - 5000ccm, 575pk, 423kw - 508PS(AJ133)
    F-TYPE Coupe
    F-TYPE Coupe (X152) | 10.2013-??? 2.0 Ti4 - 1997ccm, 300pk, 221kw - PT204(AJ20P4)
    F-TYPE Coupe (X152) | 10.2013-??? 3.0 SCV6 - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    F-TYPE Coupe (X152) | 10.2013-??? 3.0 SCV6 S - 2995ccm, 380pk, 280kw - 306PS(AJ126)
    F-TYPE Coupe (X152) | 10.2013-??? 3.0 SCV6 S AWD - 2995ccm, 380pk, 280kw - 306PS(AJ126)
    F-TYPE Coupe (X152) | 10.2013-??? 5.0 SCV8 R - 5000ccm, 551pk, 405kw - 508PS(AJ133)
    F-TYPE Coupe (X152) | 10.2013-??? 5.0 SCV8 R AWD - 5000ccm, 551pk, 405kw - 508PS(AJ133)
    F-TYPE Coupe (X152) | 10.2013-??? 5.0 SCV8 SVR / SCV8 P575 R - 5000ccm, 575pk, 423kw - 508PS(AJ133)
    S-TYPE II
    S-TYPE II (X200) | 01.1999-12.2008 R 4,2 V8 - 4196ccm, 396pk, 291kw - 1B(AJ36), 1G(AJ36)
    XF I
    XF I (X250) | 03.2008-04.2015 2.0 - 1999ccm, 241pk, 177kw - 204PT(GTDI)
    XF I (X250) | 03.2008-04.2015 2.2 D - 2179ccm, 163pk, 120kw - 224DT(DW12C)
    XF I (X250) | 03.2008-04.2015 2.2 D - 2179ccm, 190pk, 140kw - 224DT(DW12C)
    XF I (X250) | 03.2008-04.2015 2.2 D - 2179ccm, 200pk, 147kw - 224DT(DW12C)
    XF I (X250) | 03.2008-04.2015 2.7 D - 2720ccm, 207pk, 152kw - 7G(AJTDV6)
    XF I (X250) | 03.2008-04.2015 3.0 - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    XF I (X250) | 03.2008-04.2015 3.0 - 2967ccm, 238pk, 175kw - FG(AJV6)
    XF I (X250) | 03.2008-04.2015 3.0 AWD - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    XF I (X250) | 03.2008-04.2015 3.0 D - 2993ccm, 211pk, 155kw - 306DT(AJTDV6)
    XF I (X250) | 03.2008-04.2015 3.0 D - 2993ccm, 241pk, 177kw - 306DT(AJTDV6)
    XF I (X250) | 03.2008-04.2015 3.0 D - 2993ccm, 275pk, 202kw - 306DT(AJTDV6)
    XF I (X250) | 03.2008-04.2015 4.2 - 4196ccm, 298pk, 219kw - SV82G
    XF I (X250) | 03.2008-04.2015 4.2 Kompressor - 4196ccm, 416pk, 306kw - SV8TS
    XF I (X250) | 03.2008-04.2015 5.0 - 5000ccm, 385pk, 283kw - 508PN(AJ133)
    XF SPORTBRAKE
    XF SPORTBRAKE (X250) | 09.2012-04.2014 3.0 D - 2993ccm, 275pk, 202kw - 306DT(AJTDV6)
    XJ
    XJ (X350, X358) | 03.2003-03.2009 R 4.2 - 4196ccm, 395pk, 291kw - TB(AJ33SC), TG(AJ34SC)
    XJ (X351) | 10.2009-12.2019 2.0 Ti4 - 1999ccm, 241pk, 177kw - 204PT(GTDI)
    XJ (X351) | 10.2009-12.2019 3.0 SCV6 - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    XJ (X351) | 10.2009-12.2019 3.0 SCV6 AWD - 2995ccm, 340pk, 250kw - 306PS(AJ126)
    XJ (X351) | 10.2009-12.2019 3.0 SDV6 - 2993ccm, 275pk, 202kw - 306DT(AJTDV6)
    XJ (X351) | 10.2009-12.2019 3.0 V6 - 2967ccm, 238pk, 175kw - AJV6(3.0 Liter)
    XJ (X351) | 10.2009-12.2019 5.0 SCV8 - 5000ccm, 471pk, 346kw - 508PS(AJ133)
    XJ (X351) | 10.2009-12.2019 5.0 V8 - 5000ccm, 385pk, 283kw - 508PN(AJ133)
    XK II
    XK II Convertible (X150) | 03.2006-07.2014 4.2 XKR - 4196ccm, 416pk, 306kw - SV8TS
    XK II Convertible (X150) | 03.2006-07.2014 5.0 V8 - 5000ccm, 385pk, 283kw - 508PN(AJ133)
    XK II Convertible (X150) | 03.2006-07.2014 5.0 XKR - 5000ccm, 510pk, 375kw - 508PS(AJ133)
    XK II Coupe (X150) | 03.2006-07.2014 4.2 XK8 - 4196ccm, 298pk, 219kw - SG(AJ34)
    XK II Coupe (X150) | 03.2006-07.2014 4.2 XKR - 4196ccm, 416pk, 306kw - SV8TS
    XK II Coupe (X150) | 03.2006-07.2014 5.0 V8 - 5000ccm, 385pk, 283kw - 508PN(AJ133)
    XK II Coupe (X150) | 03.2006-07.2014 5.0 XKR - 5000ccm, 510pk, 375kw - 508PS(AJ133)
    XK II Coupe (X150) | 03.2006-07.2014 5.0 XKR - 5000ccm, 530pk, 390kw - 508PS(AJ133)
    XK II Coupe (X150) | 03.2006-07.2014 5.0 XKR-S - 5000ccm, 550pk, 405kw - 508PS(AJ133)

  • Original part numbers

    C2C 25337 JAGUAR
    T2R 5939 JAGUAR

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
