Brake Disc SPORT BRAKE DISC COAT Z 320.3806.52 Zimmermann

Video

Product number: 0846748

Manufacturer number: 320.3806.52

EAN: 4250238751625

€ 82,⁹⁴

Incl. VAT

View product specifications

In stock

Delivery 15-05-2025

Quantity:

Secure payment

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

Specifications

Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

Grooved design:

Perforated for better removal of gases
Rust-resistant coating

Key benefits:

German quality
Less? Brake fading?
Better braking performance
Perfect fit

Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

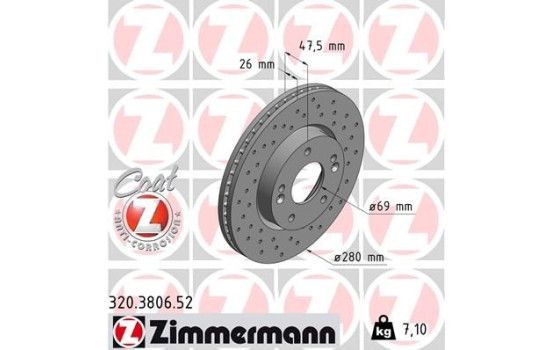

Outer diameter [mm]	280
Rim Hole Number	5
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	114
Brake Disc Type	Perforated
Centering Diameter [mm]	69
Hole Arrangement / Number	7/5
Inspection Tag	KBA 60872
Guarantee	2 years
Height [mm]	48
Brake disc thickness (mm)	26
Minimum thickness (mm)	24,4
Weight [kg]	7,1

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17640	€ 53,36
ACKOJAP	A52-2504
AP	25103 V
AP	25103 X
AP	24933 V
AP	24933 X
AP	24933
AP	25103
ASAM	74930
ASHIKA	60-0H-012C
ASHUKI	0990-0350
AUTOMOTOR France	PDC1215
BELACO	BDS1114
BLUE PRINT	ADG04395	€ 39,87
BLUE PRINT	ADG043130	€ 35,54
BLUE PRINT	ADG04358
BLUE PRINT	ADG043205	€ 40,44
BLUE PRINT	ADG043135	€ 42,22
BORG & BECK	BBD5270
BORG & BECK	BBD4495
BOSCH	0 986 479 368	€ 54,72
BOSCH	0 986 479 C07
BOSCH	0 986 479 460	€ 50,18
BOSCH	0 986 479 C13
BOSCH	0 986 479 U10	€ 32,42
BRECO	BS 8712
BRECO	BS 8552
BRECO	BV 8552
BRECO	BV 8712
BREMBO	09.9574.41	€ 50,93
BREMBO	09.9574.4X
BREMBO	09.9574.11	€ 49,96
BREMBO	09.9574.1X
BREMBO	09.9574.10
BREMBO	09.9574.40	€ 56,29
BREMSI	CD7619V
BSG	BSG 40-210-002	€ 46,08
CHAMPION	562625CH
DENCKERMANN	B130434
DON	PCD11052
Dr!ve+	DP1010.11.0408
EUROBRAKE	5815313423
EUROBRAKE	5815203423
EUROBRAKE	5815203526
EUROBRAKE	5815313526
FEBI BILSTEIN	108573	€ 39,36
FEBI BILSTEIN	108601	€ 41,43
FEBI BILSTEIN	31470	€ 36,32
FEBI BILSTEIN	31316
FERODO	DDF1619	€ 54,27
FERODO	DDF1619C	€ 103,39
FI.BA	FBD331
FREMAX	BD-5171
FREMAX	BD-5158
GIRLING	6042831
GIRLING	6062701
GIRLING	6048655
HELLA	8DD 355 120-141
HELLA	8DD 355 129-711
HELLA	8DD 355 122-341
HELLA PAGID	8DD 355 122-341	€ 53,45
HELLA PAGID	8DD 355 120-141
HELLA PAGID	8DD 355 129-711
HERTH+BUSS JAKOPARTS	J3300304
JAPANPARTS	DIH12JM
JAPANPARTS	DI-H12C	€ 30,31
JAPKO	60H12C
JURATEK	HYU114
JURID	562625JC
KAISHIN	CBR023
KAMOKA	103330
KEY PARTS	KBD5270
KEY PARTS	KBD4495

Manufacturer	Manufacturer number	Price
MAGNETI MARELLI	361302040310
MAGNETI MARELLI	361302040466
MAPCO	25215C
MASTER-SPORT	24012601501-PCS-MSP
MASTER-SPORT	24012601281-PCS-MSP
MASTER-SPORT	24012601281-SET-MS
MASTER-SPORT	24012601281-SET-MSP
MASTER-SPORT	24012601501-SET-MSP
MASTER-SPORT	24011004001-SET-MSP
MASTER-SPORT	24011004001-PCS-MSP
MASTER-SPORT	24012601281PR-SET-MSP
MASTER-SPORT	24012601501-SET-MS
MASTER-SPORT	24012601281PR-SET-MS
MASTER-SPORT	24011004001-PCS-MS
MASTER-SPORT	24012601281-PCS-MS
MASTER-SPORT	24012601501-PCS-MS
MASTER-SPORT	24011004001-SET-MS
MAXGEAR	19-0939MAX	€ 35,40
MAXGEAR	19-0939	€ 30,69
MAXGEAR	19-0939SPORT	€ 57,20
MAXGEAR	19-3354	€ 34,30
MAXTECH	865242
MAXTECH	865250
METZGER	6110175
METZGER	6110076
MEYLE	37-15 521 0029/PD
MEYLE	28-15 521 0022	€ 55,91
MEYLE	37-15 521 0029	€ 50,38
MEYLE	28-15 521 0022/PD	€ 54,45
MINTEX	MDC2648
MINTEX	MDC1780C
NIPPARTS	J3300530
NK	313423
NK	203423
NK	203526
NK	313526
NPS	H330I16
OPTIMAL	BS-8434HC
OPTIMAL	BS-8140
OPTIMAL	BS-8434
OPTIMAL	BS-8140HC
Omnicraft	2134090
QUARO	QD5029
QUARO	QD5029HC
ROTINGER	RT 20659-GL T5
ROTINGER	RT 20659-GL
ROTINGER	RT 20242
ROTINGER	RT 20659-GL T3
ROTINGER	RT 20659-GL T9
ROTINGER	RT 20659
ROTINGER	RT 20659-GL T6
ROTINGER	RT 20242-GL T5
ROTINGER	RT 20242-GL
ROTINGER	RT 20242-GL T6
ROTINGER	RT 20242-GL T9
ROTINGER	RT 20242-GL T3
SWAG	33 10 1011
SWAG	90 93 1316
SWAG	90 93 1470
TEXTAR	92133905
TEXTAR	92271403
TOPRAN	820 603
TOPRAN	820 376
TRW	DF4865S
TRW	DF4283	€ 48,26
TRW	DF6270
VALEO	197302
VALEO	185816
VALEO	197205
VALEO	672743
ZIMMERMANN	320.3806.20	€ 60,40
ZIMMERMANN	320.3806.52	(this product)
sbs	1815203423

Applicability

HYUNDAI

	COUPE II
	COUPE II (GK) \| 01.2001-08.2009 1.6 16V - 1599ccm, 105pk, 77kw - G4ED
	COUPE II (GK) \| 01.2001-08.2009 1.6 16V - 1599ccm, 107pk, 79kw - G4ED
	COUPE II (GK) \| 01.2001-08.2009 2.0 - 1975ccm, 136pk, 100kw - G4GC
	COUPE II (GK) \| 01.2001-08.2009 2.0 - 1975ccm, 139pk, 102kw - G4GC-G
	COUPE II (GK) \| 01.2001-08.2009 2.0 GLS - 1975ccm, 143pk, 105kw - G4GC
	COUPE II (GK) \| 01.2001-08.2009 2.7 V6 - 2656ccm, 165pk, 121kw - G6BA
	COUPE II (GK) \| 01.2001-08.2009 2.7 V6 - 2656ccm, 167pk, 123kw - G6BA
	i30
	i30 (FD) \| 10.2007-11.2011 1.4 - 1396ccm, 105pk, 77kw - G4FA
	i30 (FD) \| 10.2007-11.2011 1.4 - 1396ccm, 109pk, 80kw - G4FA
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 116pk, 85kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 122pk, 90kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 126pk, 93kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 90pk, 66kw - D4FB
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 116pk, 85kw - D4FB
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 (FD) \| 10.2007-11.2011 2.0 - 1975ccm, 143pk, 105kw - G4GC
	i30 (FD) \| 10.2007-11.2011 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	i30 (FD) \| 10.2007-11.2011 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	i30 Estate
	i30 Estate (FD) \| 10.2007-06.2012 1.4 - 1396ccm, 105pk, 77kw - G4FA
	i30 Estate (FD) \| 10.2007-06.2012 1.4 - 1396ccm, 109pk, 80kw - G4FA
	i30 Estate (FD) \| 10.2007-06.2012 1.6 - 1591ccm, 122pk, 90kw - G4FC
	i30 Estate (FD) \| 10.2007-06.2012 1.6 - 1591ccm, 126pk, 93kw - G4FC
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 90pk, 66kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 116pk, 85kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC
	i30 Estate (FD) \| 10.2007-06.2012 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	i30 Estate (FD) \| 10.2007-06.2012 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	ix20
	ix20 (JC) \| 11.2010-07.2019 1.4 - 1396ccm, 90pk, 66kw - G4FA
	ix20 (JC) \| 11.2010-07.2019 1.4 CRDi - 1396ccm, 78pk, 57kw - D4FC
	ix20 (JC) \| 11.2010-07.2019 1.4 CRDi - 1396ccm, 90pk, 66kw - D4FC
	ix20 (JC) \| 11.2010-07.2019 1.6 - 1591ccm, 125pk, 92kw - G4FC
	ix20 (JC) \| 11.2010-07.2019 1.6 CRDI - 1582ccm, 116pk, 85kw - D4FB
	ix20 (JC) \| 11.2010-07.2019 1.6 CRDI - 1582ccm, 128pk, 94kw - D4FB
	SONATA V
	SONATA V (NF) \| 01.2005-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	SONATA V (NF) \| 01.2005-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	SONATA V (NF) \| 01.2005-12.2010 2.0 VVTi GLS - 1998ccm, 144pk, 106kw - G4KA
	SONATA V (NF) \| 01.2005-12.2010 2.4 - 2359ccm, 162pk, 119kw - G4KC
	TUCSON
	TUCSON (JM) \| 06.2004-01.2012 2.0 - 1975ccm, 141pk, 104kw - G4GC
	TUCSON (JM) \| 06.2004-01.2012 2.0 All-wheel Drive - 1975ccm, 141pk, 104kw - G4GC
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 113pk, 83kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 120pk, 88kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 113pk, 83kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 120pk, 88kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 136pk, 100kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 140pk, 103kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.7 All-wheel Drive - 2656ccm, 175pk, 129kw - G6BA

KIA

	CARENS III
	CARENS III MPV (UN) \| 09.2006-06.2013 1.6 CRDi 110 - 1582ccm, 116pk, 85kw - D4FB
	CARENS III MPV (UN) \| 09.2006-06.2013 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	CARENS III MPV (UN) \| 09.2006-06.2013 1.6 CVVT - 1591ccm, 126pk, 93kw - G4FC
	CARENS III MPV (UN) \| 09.2006-06.2013 1.6 CVVT - 1591ccm, 132pk, 97kw - G4FC
	CARENS III MPV (UN) \| 09.2006-06.2013 2.0 CRDi 115 - 1991ccm, 115pk, 85kw - D4EA
	CARENS III MPV (UN) \| 09.2006-06.2013 2.0 CRDi 135 - 1991ccm, 136pk, 100kw - D4EA
	CARENS III MPV (UN) \| 09.2006-06.2013 2.0 CRDi 140 - 1991ccm, 140pk, 103kw - D4EA
	CARENS III MPV (UN) \| 09.2006-06.2013 2.0 CVVT - 1998ccm, 144pk, 106kw - G4KA
	CARENS IV
	CARENS IV \| 03.2013-08.2016 1.6 GDi - 1591ccm, 135pk, 99kw - G4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD
	CARENS IV \| 03.2013-08.2016 2.0 GDi - 1999ccm, 166pk, 122kw - G4NC
	CARENS IV \| 03.2013-08.2016 2.0 GDi - 1999ccm, 177pk, 130kw - G4NC
	CEE'D Hatchback
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.4 - 1396ccm, 105pk, 77kw - G4FA
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.4 - 1396ccm, 109pk, 80kw - G4FA
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.4 CVVT - 1396ccm, 90pk, 66kw - G4FA
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 - 1591ccm, 115pk, 85kw - G4FC
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 - 1591ccm, 122pk, 90kw - G4FC
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 - 1591ccm, 126pk, 93kw - G4FC
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 CRDi 115 - 1582ccm, 115pk, 85kw - D4FB
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 CRDi 90 - 1582ccm, 90pk, 66kw - D4FB
	CEE'D Hatchback (ED) \| 12.2006-12.2012 1.6 CVVT - 1591ccm, 125pk, 92kw - G4FC
	CEE'D Hatchback (ED) \| 12.2006-12.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC
	CEE'D Hatchback (ED) \| 12.2006-12.2012 2.0 CRDi 140 - 1991ccm, 140pk, 103kw - D4EA
	CEE'D SW
	CEE'D SW (ED) \| 07.2007-12.2012 1.4 - 1396ccm, 105pk, 77kw - G4FA
	CEE'D SW (ED) \| 07.2007-12.2012 1.4 - 1396ccm, 109pk, 80kw - G4FA
	CEE'D SW (ED) \| 07.2007-12.2012 1.4 CVVT - 1396ccm, 90pk, 66kw - G4FA
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 - 1591ccm, 115pk, 85kw - G4FC
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 - 1591ccm, 122pk, 90kw - G4FC
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 - 1591ccm, 126pk, 93kw - G4FC
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 CRDi 115 - 1582ccm, 115pk, 85kw - D4FB
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 CRDi 90 - 1582ccm, 90pk, 66kw - D4FB
	CEE'D SW (ED) \| 07.2007-12.2012 1.6 CVVT - 1591ccm, 125pk, 92kw - G4FC
	CEE'D SW (ED) \| 07.2007-12.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC
	CEE'D SW (ED) \| 07.2007-12.2012 2.0 CRDi 140 - 1991ccm, 140pk, 103kw - D4EA
	MAGENTIS II
	MAGENTIS II (MG) \| 11.2005-12.2010 2.0 - 1998ccm, 144pk, 106kw - G4KA
	MAGENTIS II (MG) \| 11.2005-12.2010 2.0 - 1998ccm, 165pk, 121kw - G4KD
	MAGENTIS II (MG) \| 11.2005-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	MAGENTIS II (MG) \| 11.2005-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	MAGENTIS II (MG) \| 11.2005-12.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	MAGENTIS II (MG) \| 11.2005-12.2010 2.7 - 2656ccm, 188pk, 138kw - G6EA
	MAGENTIS II (MG) \| 11.2005-12.2010 2.7 V6 - 2656ccm, 193pk, 142kw - G6EA
	PRO CEE'D
	PRO CEE'D (ED) \| 02.2008-02.2013 1.4 - 1396ccm, 105pk, 77kw - G4FA
	PRO CEE'D (ED) \| 02.2008-02.2013 1.4 - 1396ccm, 109pk, 80kw - G4FA
	PRO CEE'D (ED) \| 02.2008-02.2013 1.4 CVVT - 1396ccm, 90pk, 66kw - G4FA
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 - 1591ccm, 122pk, 90kw - G4FC
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 - 1591ccm, 126pk, 93kw - G4FC
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 CRDi 115 - 1582ccm, 115pk, 85kw - D4FB
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 CRDi 90 - 1582ccm, 90pk, 66kw - D4FB
	PRO CEE'D (ED) \| 02.2008-02.2013 1.6 CVVT - 1591ccm, 125pk, 92kw - G4FC
	PRO CEE'D (ED) \| 02.2008-02.2013 2.0 - 1975ccm, 143pk, 105kw - G4GC
	PRO CEE'D (ED) \| 02.2008-02.2013 2.0 CRDi 140 - 1991ccm, 140pk, 103kw - D4EA
	PRO CEE'D (ED) \| 02.2008-02.2013 2.0 LPG - 1975ccm, 143pk, 105kw - G4GC
	SOUL I
	SOUL I (AM) \| 02.2009-12.2014 1.6 - 1591ccm, 124pk, 91kw - G4FC
	SOUL I (AM) \| 02.2009-12.2014 1.6 CRDi 115 - 1582ccm, 115pk, 85kw - D4FB
	SOUL I (AM) \| 02.2009-12.2014 1.6 CRDi 128 - 1582ccm, 126pk, 94kw - D4FB
	SOUL I (AM) \| 02.2009-12.2014 1.6 CVVT - 1591ccm, 105pk, 77kw - G4FC
	SOUL I (AM) \| 02.2009-12.2014 1.6 CVVT - 1591ccm, 126pk, 93kw - G4FC
	SOUL I (AM) \| 02.2009-12.2014 1.6 GDI - 1591ccm, 140pk, 103kw - G4FD
	SOUL II
	SOUL II (PS) \| 02.2014-12.2018 1.6 CRDi 128 - 1582ccm, 126pk, 94kw - D4FB
	SOUL II (PS) \| 02.2014-12.2018 1.6 CRDi 136 - 1582ccm, 136pk, 100kw - D4FB
	SOUL II (PS) \| 02.2014-12.2018 1.6 CVVT - 1591ccm, 124pk, 91kw - G4FG
	SOUL II (PS) \| 02.2014-12.2018 1.6 CVVT - 1591ccm, 129pk, 95kw - G4FG
	SOUL II (PS) \| 02.2014-12.2018 1.6 GDI - 1591ccm, 132pk, 97kw - G4FD
	SOUL II (PS) \| 02.2014-12.2018 2.0 CVVT - 1999ccm, 154pk, 113kw - G4NA
	SOUL II (PS) \| 02.2014-12.2018 EV Electric - 0ccm, 33pk, 25kw - ZD
	SOUL II (PS) \| 02.2014-12.2018 EV Electric - 0ccm, 110pk, 81kw - ZD
	SPORTAGE II
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 16V 4WD - 1975ccm, 141pk, 104kw - G4GC
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 113pk, 83kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 113pk, 83kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 136pk, 100kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 140pk, 103kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.7 V6 4WD - 2656ccm, 175pk, 129kw - G6BA
	SPORTAGE III
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT - 1998ccm, 163pk, 120kw - G4KD
	VENGA
	VENGA (YN) \| 02.2010-03.2019 1.4 CRDi 75 - 1396ccm, 75pk, 55kw - D4FC
	VENGA (YN) \| 02.2010-03.2019 1.4 CRDi 75 - 1396ccm, 78pk, 57kw - D4FC
	VENGA (YN) \| 02.2010-03.2019 1.4 CRDi 90 - 1396ccm, 90pk, 66kw - D4FC
	VENGA (YN) \| 02.2010-03.2019 1.4 CVVT - 1396ccm, 90pk, 66kw - G4FA
	VENGA (YN) \| 02.2010-03.2019 1.6 CRDi 115 - 1582ccm, 116pk, 85kw - D4FB
	VENGA (YN) \| 02.2010-03.2019 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	VENGA (YN) \| 02.2010-03.2019 1.6 CVVT - 1591ccm, 125pk, 92kw - G4FC

Original part numbers

51712-1H100	HYUNDAI
51712-2C000	HYUNDAI
51712-3K010	HYUNDAI
51712-3K050	HYUNDAI
51712-1H000	HYUNDAI
51712-1F000	HYUNDAI
51712-2E300	HYUNDAI
51712-2C000	KIA
51712-3K010	KIA
51712-3K050	KIA
51712-1H000	KIA
51712-1D100	KIA
51712-2K100	KIA
51712-1M000	KIA
517122C000	HYUNDAI
517123K010	HYUNDAI
517122E300	HYUNDAI
517123K050	KIA
517123K010	KIA
517121F000	KIA
517121M000	KIA
517123K010	HYUNDAI (BEIJING)
517123K000	HYUNDAI (BEIJING)
517122E300	HYUNDAI (BEIJING)
517123K010	KIA (DYK)

Manufacturer

Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
Delivery time

Expected delivery date:

15-05-2025
Questions?
Regarding product:
0846748. Brake Disc SPORT BRAKE DISC COAT Z

Name:

Email address:

Provide number plate

Add image(s):

Your question about this product:

In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.

Control number
Manual

Secure payment

Shopping basket

Brake Disc SPORT BRAKE DISC COAT Z 320.3806.52 Zimmermann
