Brake Disc SPORT BRAKE DISC COAT Z 370.3077.52 Zimmermann
Product number: 0846772
Manufacturer number: 370.3077.52
EAN: 4250238749493
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

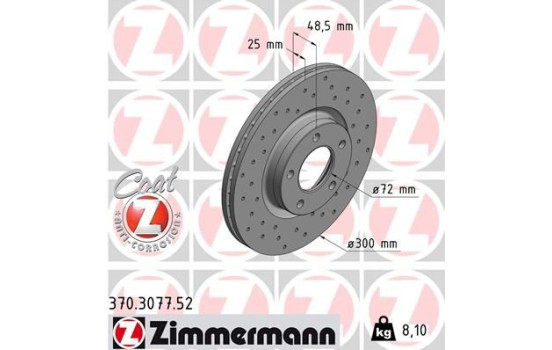

Outer diameter [mm] 300 Rim Hole Number 5 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 114 Brake Disc Type Perforated Centering Diameter [mm] 72 Hole Arrangement / Number 5/5 Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 48 Brake disc thickness (mm) 25 Minimum thickness (mm) 23 Weight [kg] 8,1 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17637 ACKOJAP A32-80006 AP X 24958 AP 24958 V AP 24958 X AP 24958 ASHIKA 60-03-309C ASHUKI M606-36 BELACO BDS1290 BLUE PRINT ADM54382 BORG & BECK BBD4449 BOSCH 0 986 479 183 BRECO BV 8577 BRECO BS 8577 BREMBO 09.9468.21 BREMBO 09.9468.20 BREMBO 09.9468.76 BREMBO 09.9468.2X BREMSI CD7312V CHAMPION 562635CH DENCKERMANN B130284 DON PCD11622 Dr!ve+ DP1010.11.0859 EUROBRAKE 5815203253 EUROBRAKE 5815313253 FEBI BILSTEIN 32770 FERODO DDF1312C FI.BA FBD405 FREMAX BD-3273 GIRLING 6043851 HELLA 8DD 355 128-241 HELLA 8DD 355 110-891 HERTH+BUSS JAKOPARTS J3303084 JAPANPARTS DI-309C JAPKO 60309C JURATEK MAZ126 JURID 562635JC KAISHIN CBR430 KEY PARTS KBD4449 MAGNETI MARELLI 360406056800 MAGNETI MARELLI 360406056805 MAGNETI MARELLI 360406056802 Manufacturer Manufacturer number Price MASTER-SPORT 24012501701-SET-MSP MASTER-SPORT 24012501701-PCS-MSP MASTER-SPORT 24012501701-SET-MS MASTER-SPORT 24012501701-PCS-MS MAXGEAR 19-1268 MAXGEAR 19-1268SPORT MAXGEAR 19-1268MAX MAXTECH 853087 METZGER 6110229 MEYLE 35-15 521 0039 MEYLE 35-15 521 0039/PD MINTEX MDC1988 MINTEX MDC1692 NIPPARTS J3303084HC NIPPARTS J3303084 NK 203253 NK 313253 NPS M330A72 OPEN PARTS BDRS2156.25 OPEN PARTS BDR2156.20 OPEN PARTS BDA2156.20 OPTIMAL BS-7756C Omnicraft 2134598 PAGID 54304NC QUARO QD3337HC QUARO QD3337 RAICAM RD00411 ROTINGER RT 2964-GL T3 ROTINGER RT 2964-GL T6 ROTINGER RT 2964-GL T9 ROTINGER RT 2964-GL T5 ROTINGER RT 2964 ROTINGER RT 2964-GL STELLOX 6020-3253V-SX SWAG 83 93 2770 TEXTAR 92130403 TRW DF4385 VALEO 197365 VALEO 673246 ZIMMERMANN 370.3077.20 ZIMMERMANN 370.3077.52 (this product) -
Applicability
MAZDA 3 3 (BK) | 10.2003-12.2009 2.0 (BKEP) - 1999ccm, 150pk, 110kw - LF-DE, LF-VE, LF50, LF72, LFN7, LFN8 3 (BK) | 10.2003-12.2009 2.0 MZR-CD (BK14) - 1998ccm, 143pk, 105kw - RF7J, RF8G 3 (BL) | 12.2008-09.2014 2.0 MZR (BLEFW, BL10F) - 1999ccm, 147pk, 108kw - LF5H, LF5W 3 (BL) | 12.2008-09.2014 2.0 MZR DISI (BLEFW) - 1999ccm, 151pk, 111kw - LFZ2 3 (BL) | 12.2008-09.2014 2.2 MZR CD (BL10) - 2184ccm, 150pk, 110kw - R2AA 3 (BL) | 12.2008-09.2014 2.2 MZR CD (BL10) - 2184ccm, 185pk, 136kw - R2AA 3 Saloon 3 Saloon (BK) | 10.2003-12.2009 2.0 (BKEP) - 1999ccm, 150pk, 110kw - LF-DE, LF-VE, LF50, LF72, LFN7, LFN8 3 Saloon (BL) | 12.2008-09.2014 2.2 MZR CD (BL10) - 2184ccm, 150pk, 110kw - R2AA 3 Saloon (BL) | 12.2008-09.2014 2.2 MZR CD (BL10) - 2184ccm, 185pk, 136kw - R2AA 5 5 (CR) | 02.2005-05.2010 1.8 (CR19) - 1798ccm, 116pk, 85kw - L823 5 (CR) | 02.2005-05.2010 2.0 (CREW, CR19) - 1999ccm, 146pk, 107kw - LFF7 5 (CR) | 02.2005-05.2010 2.0 CD (CR19) - 1998ccm, 110pk, 81kw - RF7J 5 (CR) | 02.2005-05.2010 2.0 CD (CR19) - 1998ccm, 143pk, 105kw - RF7J 5 (CW) | 06.2010-??? 1.6 CD - 1560ccm, 116pk, 85kw - Y650, Y655, Y6Y1 5 (CW) | 06.2010-??? 1.8 MZR - 1798ccm, 116pk, 85kw - L850 5 (CW) | 06.2010-??? 2.0 (CWEFW) - 1999ccm, 144pk, 106kw - LF-ZB 5 (CW) | 06.2010-??? 2.0 (CWEFW) - 1999ccm, 150pk, 110kw - LF-ZB -
Original part numbers
BP6Y-33-25XD MAZDA BP6Y-33-25XE MAZDA BP6Y-33-25XF MAZDA BP6Y-33-25XB MAZDA C26Y-33-25XA MAZDA C26Y-33-25XB MAZDA C26Y-33-25XC MAZDA C26Y-33-25XD MAZDA -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
