Brake Disc SPORT BRAKE DISC COAT Z 440.3122.52 Zimmermann

Video

Product number: 0846935

Manufacturer number: 440.3122.52

EAN: 4250238752950

€ 98,²¹

Incl. VAT

View product specifications

In stock

Delivery 18-11-2025

Quantity:

Secure payment

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

Specifications

Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

Grooved design:

Perforated for better removal of gases
Rust-resistant coating

Key benefits:

German quality
Less? Brake fading?
Better braking performance
Perfect fit

Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

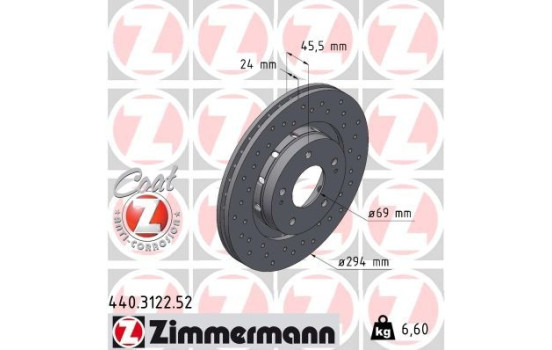

Outer diameter [mm]	294
Rim Hole Number	5
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	114
Brake Disc Type	Perforated
Centering Diameter [mm]	69
Hole Arrangement / Number	7/5
Inspection Tag	ECE R90 APPROVED
Guarantee	2 years
Height [mm]	46
Brake disc thickness (mm)	24
Minimum thickness (mm)	22,4
Weight [kg]	6,6

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17433	€ 48,61
AP	25179 V
AP	25179 E
AP	25179 X
ASAM	75696
ASHIKA	60-05-526C
ASHUKI	C652-25
BELACO	BDS1279
BLUE PRINT	ADC44392	€ 39,01
BLUE PRINT	ADC44367	€ 43,04
BOSCH	0 986 479 E76	€ 46,64
BOSCH	0 986 479 372	€ 52,47
BRECO	BS 8789
BRECO	BV 8789
BREMBO	09.A738.14
BREMBO	09.A738.11	€ 54,99
BREMBO	09.A738.1X
BREMSI	CD7642V
CHAMPION	562528CH
DENCKERMANN	B130331
DON	PCD10792
Dr!ve+	DP1010.11.0425
EUROBRAKE	5815313043
EUROBRAKE	5815203043
FEBI BILSTEIN	28440	€ 40,30
FERODO	DDF1642	€ 57,33
FERODO	DDF1642C	€ 108,75
FREMAX	BD-5924
GIRLING	6061741
HELLA	8DD 355 111-571
HERTH+BUSS JAKOPARTS	J3305063
ICER	78BD5924-2
JAPANPARTS	DI-526C	€ 33,65
JAPKO	60526C
JURATEK	MIT130
JURID	562528JC
KAISHIN	CBR320
MAGNETI MARELLI	360406077101
MAGNETI MARELLI	360406176102
MAGNETI MARELLI	361302040574
MASTER-SPORT	24012402151-SET-MSP
MASTER-SPORT	24012402151-PCS-MS
MASTER-SPORT	24012402151-PCS-MSP

Manufacturer	Manufacturer number	Price
MASTER-SPORT	24012402151-SET-MS
MAXGEAR	19-1057SPORT
MAXGEAR	19-1057MAX
MAXGEAR	19-1057
MAXTECH	855099
METZGER	6110375
MEYLE	32-15 521 0025	€ 47,53
MEYLE	32-15 521 0025/PD	€ 58,00
MINTEX	MDC1385
NIPPARTS	J3305063
NK	203043
NK	313043
NPS	M330I58
OPTIMAL	BS-8394
OPTIMAL	BS-8394HC
Omnicraft	2134533
PAGID	54352NC
QUARO	QD7689
QUARO	QD7689HC
R BRAKE	78RBD25924
RAICAM	RD00359
ROTINGER	RT 4519HP-GL T3
ROTINGER	RT 4519-GL T9
ROTINGER	RT 4519HP-GL
ROTINGER	RT 4519HP-GL T5
ROTINGER	RT 4519HP-GL T9
ROTINGER	RT 4519-GL T5
ROTINGER	RT 4519-GL T6
ROTINGER	RT 4519HP
ROTINGER	RT 4519
ROTINGER	RT 4519-GL
ROTINGER	RT 4519HP-GL T6
ROTINGER	RT 4519-GL T3
STELLOX	6020-3043VK-SX
STELLOX	6020-3043V-SX
SWAG	80 92 8440
TEXTAR	92135203	€ 57,73
TOPRAN	722 836
TRW	DF6174	€ 47,93
VALEO	672931
ZIMMERMANN	440.3122.20	€ 54,08
ZIMMERMANN	440.3122.52	(this product)

Applicability

CITROEN

	C-CROSSER
	C-CROSSER (VU_, VV_) \| 02.2007-12.2012 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4), 4HK (DW12ME5)
	C-CROSSER (VU_, VV_) \| 02.2007-12.2012 2.4 16V - 2360ccm, 170pk, 125kw - SFZ (4B12 MMC)
	C-CROSSER ENTERPRISE
	C-CROSSER ENTERPRISE (VU_, VV_) \| 01.2009-??? 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4)
	C-CROSSER ENTERPRISE (VU_, VV_) \| 01.2009-??? 2.4 16V - 2360ccm, 170pk, 125kw - 4B12

MITSUBISHI

	LANCER VIII
	LANCER VIII (CY_A, CZ_A) \| 03.2007-12.2015 2.0 i Ralliart 4WD (CY4A) - 1998ccm, 241pk, 177kw - 4B11-T/C
	LANCER VIII Sportback (CX_A) \| 06.2008-??? 2.0 Ralliart 4WD (CX4A) - 1998ccm, 241pk, 177kw - 4B11-T/C
	OUTLANDER I
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.0 (CU2W) - 1997ccm, 136pk, 100kw - 4G63 (DOHC 16V)
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.0 4WD (CU2W) - 1997ccm, 136pk, 100kw - 4G63 (DOHC 16V)
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.0 Turbo 4WD (CU2W) - 1997ccm, 201pk, 148kw - 4G63-T (DOHC 16V)
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.0 Turbo-R 4WD (CU2W) - 1997ccm, 241pk, 177kw - 4G63 Turbo
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.4 4WD (CU4W) - 2351ccm, 139pk, 102kw - 4G64 (16V)
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.4 4WD (CU5W) - 2378ccm, 160pk, 118kw - 4G69
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.4 4WD (CU5W) - 2378ccm, 162pk, 119kw - 4G69
	OUTLANDER I (CU_W) \| 03.2001-09.2007 2.4 HDD Mivec (CU5W) - 2378ccm, 160pk, 118kw - 4G69
	OUTLANDER II
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.0 (CW4W) - 1998ccm, 147pk, 108kw - 4B11
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.0 4WD - 1998ccm, 147pk, 108kw - 4B11
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.0 DI-D (CW8W) - 1968ccm, 140pk, 103kw - BSY
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.2 DI-D - 2268ccm, 177pk, 130kw - 4N14
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.2 DI-D 4WD - 2179ccm, 156pk, 115kw - 4HK, 4HN
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.2 DI-D 4WD - 2268ccm, 140pk, 103kw - 4N14
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.2 DI-D 4WD - 2268ccm, 177pk, 130kw - 4N14
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.4 (CW5W) - 2360ccm, 170pk, 125kw - 4B12
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.4 4WD (CW5W) - 2360ccm, 170pk, 125kw - 4B12
	OUTLANDER II (CW_W) \| 11.2006-11.2012 2.4 Flex 4WD - 2360ccm, 170pk, 125kw - 4B12
	OUTLANDER III
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.0 (GF2W) - 1998ccm, 146pk, 107kw - 4B11
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.0 (GF7W) - 1998ccm, 150pk, 110kw - 4J11
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.0 4WD (GF7W) - 1998ccm, 150pk, 110kw - 4J11
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.0 4WD (GF7W, GF2W) - 1998ccm, 146pk, 107kw - 4B11
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.0 Hybrid 4WD (GG2W) - 1998ccm, 200pk, 147kw - 4B11, S61, Y61
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.2 DI-D (GF6W) - 2268ccm, 150pk, 110kw - 4N14
	OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) \| 08.2012-12.2022 2.2 DI-D 4WD (GF6W) - 2268ccm, 150pk, 110kw - 4N14

PEUGEOT

	4007
	4007 (VU_, VV_) \| 02.2007-03.2013 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4), 4HK (DW12ME5)
	4007 (VU_, VV_) \| 02.2007-03.2013 2.4 16V - 2360ccm, 170pk, 125kw - SFY (4B12-MMC), SFZ (4B12-MMC)

Original part numbers

4615A006	MITSUBISHI
4615A113	MITSUBISHI
MR128659	MITSUBISHI
MR205215	MITSUBISHI
4249.59	CITROËN/PEUGEOT
4249.58	CITROËN/PEUGEOT
4249.F3	CITROËN/PEUGEOT
1606375780	CITROËN/PEUGEOT
1611429880	CITROËN/PEUGEOT
4615A179	MITSUBISHI
4615A189	MITSUBISHI

Manufacturer

Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
