Brake Disc SPORT BRAKE DISC COAT Z 600.3213.52 Zimmermann
Product number: 0847020
Manufacturer number: 600.3213.52
EAN: 4250238753117
-
Free 30 days exchanges
-
Quality car parts
-
Shipment within 3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Upgrade your braking system with Zimmerman Sport Z brake rotors.
These brake discs feature perforated ventilation holes. This design ensures better water and dirt drainage and prevents brake fade. These brake discs are also ideal for colder and wet conditions.
Grooved design:
- Perforated for better gas drainage
- Rust-resistant coating
Key benefits:
- German quality
- Less brake fading
- Better braking performance
- Perfect fit
Please note: Most Zimmermann brake discs can only be ordered in pairs and are identical on both sides. Brake discs sold individually differ on the left and right sides.

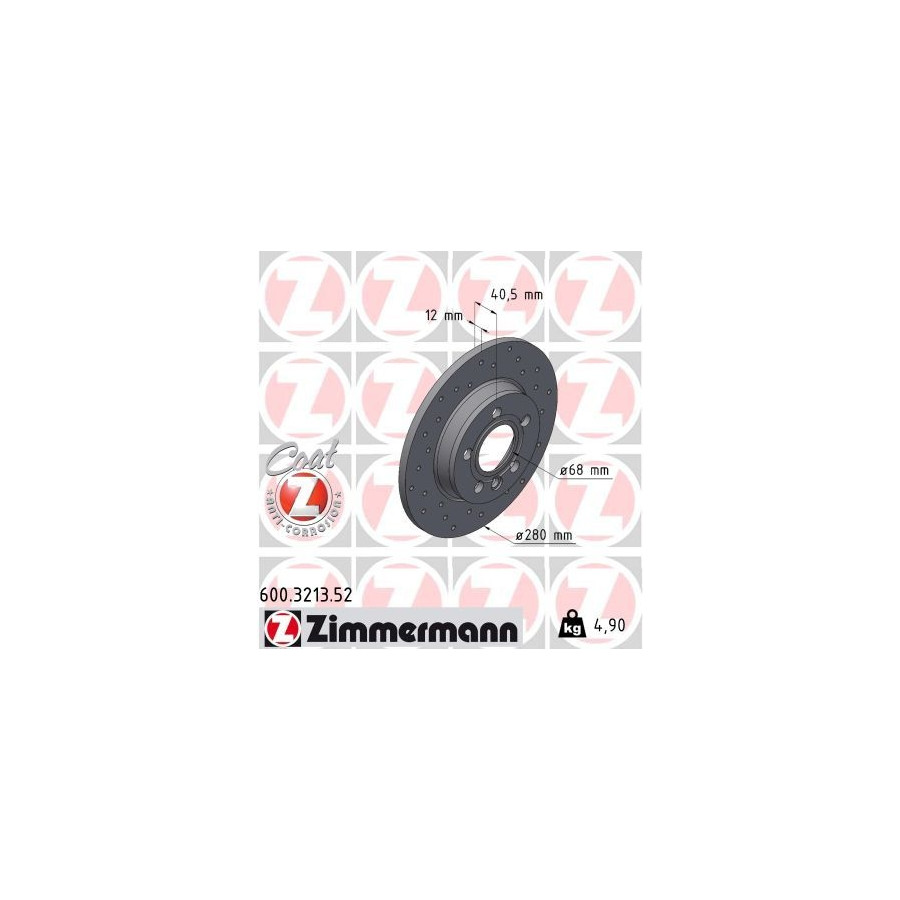

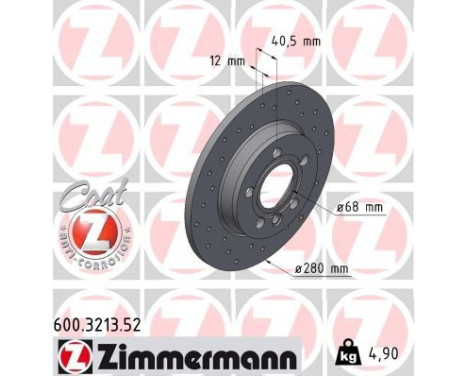

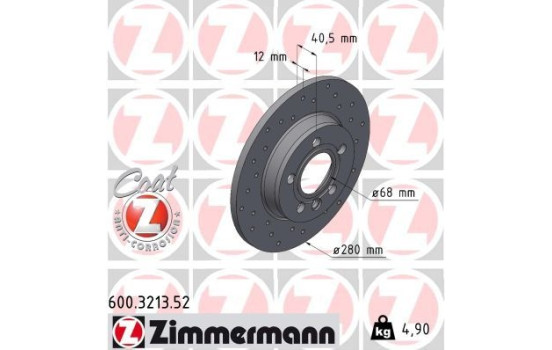

Outer diameter [mm] 280 Fitting Position Rear Axle Rim Hole Number 5 Brake Disc Type Solid Surface Coated Brake pads Exclusive Brake Disc Type Perforated Centering Diameter [mm] 68 Hole Arrangement / Number 6/5 Inspection Tag ECE R90 APPROVED Guarantee 2 years application Ready Height [mm] 40 Brake disc thickness (mm) 12 Minimum thickness (mm) 10 Category Brake system Weight [kg] 4,90 Wheel bolt pitch [mm] 112 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 16659 A.Z. Meisterteile AZMT-44-024-1020 AISIN X6R1272S ALTE AUTOMOTIVE 128016FCAL ANDEL AND0459 ASHIKA 61-00-0926C ASPART 3BDI1073 BELACO BDS1635 BLUE PRINT ADV184364 BOSCH 0 986 478 871 BOSCH 0 986 479 R91 BREMBO 08.7288.14 BREMBO 08.7288.11 BREMSI CD7012S CASALS 55435 CHAMPION 562081CH DACO 604767 DAVID VASCO T4047 DENCKERMANN B130229 DON PCD10562 Dr!ve+ DP1010.11.0146 Dr!ve+ DBD0146C EUROBRAKE 5815204767 EUROBRAKE 5815314767 FEBI BILSTEIN 18490 FERODO DDF1012 FERODO DDF1012C GH GH-424704 HART 215 621 HART 241 164 HELLA 8DD 355 105-611 JAPANPARTS DP-0926C JAPKO 610926C JURID 562081JC KRAFT AUTOMOTIVE 6050490 Manufacturer Manufacturer number Price MAGNETI MARELLI 361302040717 MAGNETI MARELLI 360406050300 MASTER-SPORT 24011201381-PCS-MS MASTER-SPORT 24011201381-PCS-MSP MASTER-SPORT 24011201381-SET-MS MASTER-SPORT 24011201381-SET-MSP MAXTECH 871068 METZGER 6110063 MEYLE 115 523 0017/PD MEYLE 115 523 0017 MINTEX MDC1525 MINTEX MDC1525CMX NK 204767 NK 314767 OPEN PARTS BDA1844.10 OPTIMAL BS-5580C Omnicraft 2134682 PAGID 53959NC QUARO QD3052 ROTINGER RT 1372-GL T6 ROTINGER RT 1372-GL T3 ROTINGER RT 1372-GL ROTINGER RT 1372 ROTINGER RT 1372-GL T9 ROTINGER RT 1372-GL T5 SRLine S71-1085 SWAG 30 91 8490 TATSUMI TCC1091 TEXTAR 92083903 TOPRAN 108 915 VALEO 197819 VALEO 672906 ZIMMERMANN 600.3213.20 ZIMMERMANN 600.3213.52 (this product) -
Applicability
VOLKSWAGEN TRANSPORTER / TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.0 - 1968ccm, 84pk, 62kw - AAC TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR 6 - 2792ccm, 140pk, 103kw - AES TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK TRANSPORTER Mk TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 D - 1896ccm, 61pk, 45kw - 1X TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.0 - 1968ccm, 84pk, 62kw - AAC TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 1.9 D - 1896ccm, 61pk, 45kw - 1X TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.0 - 1968ccm, 84pk, 62kw - AAC TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 140pk, 103kw - AES TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK -
Original part numbers
701 615 601 VAG 701 615 601 A VAG 7D0 615 601 VAG 7D0 615 601 B VAG -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
