Zimmermann

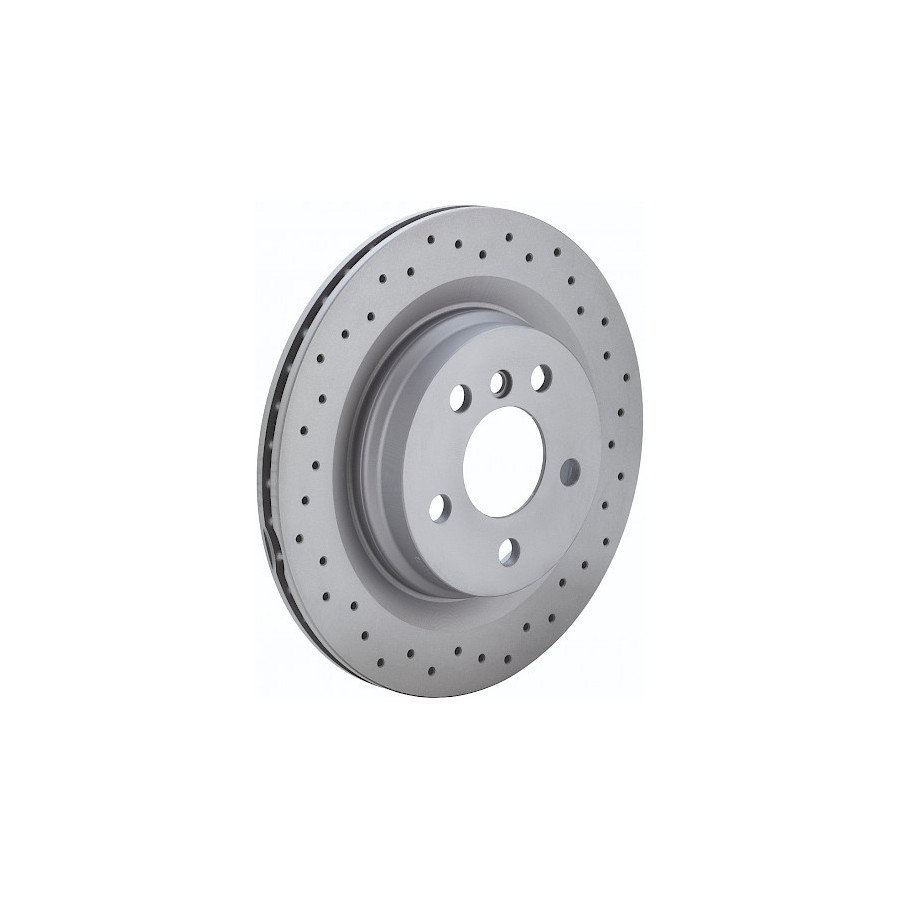

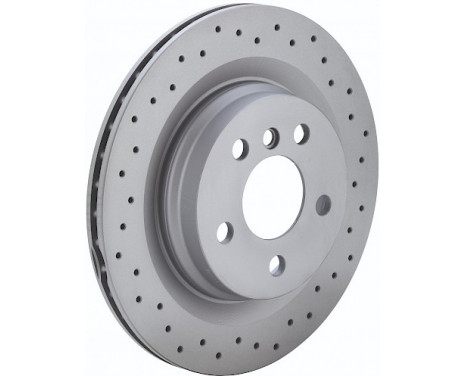

Brake Disc SPORT BRAKE DISC COAT Z 610.3706.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.3706.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 610.3706.52 Zimmermann, Image 2

Product number: 0847052

Manufacturer number: 610.3706.52

EAN: 4250238753605

€ 94,22

Incl. VAT
View product specifications
In stock
Delivery 20-11-2025
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

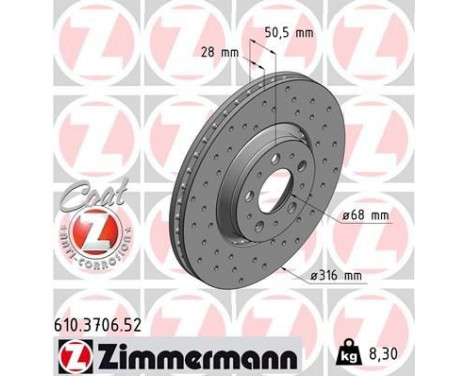

    Outer diameter [mm]316
    Fitting PositionFront Axle
    Rim Hole Number5
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Brake Disc TypeVentilated outside
    Perforated
    Centering Diameter [mm]68
    Hole Arrangement / Number10/5
    Inspection TagKBA 60872
    Guarantee2 years
    Height [mm]50
    Brake disc thickness (mm)28
    Minimum thickness (mm)25
    Weight [kg]8,32

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17634
    € 50,70
    ABE C3V030ABE-P
    ABE C3V030ABE
    AP 24965 V
    AP 24965
    ASHIKA 60-00-0354C
    BELACO BDS1836
    BLUE PRINT ADBP430123
    BORG & BECK BBD4389
    BOSCH 0 986 479 C85
    BOSCH 0 986 479 322
    € 52,17
    BRECO BS 8584
    BRECO BV 8584
    BREMBO 09.9755.11
    € 55,99
    BREMBO 09.9755.10
    BREMSI CD7426V
    COMLINE ADC1918V
    DENCKERMANN B130396
    EUROBRAKE 5815204851
    EUROBRAKE 5815314851
    FEBI BILSTEIN 43926
    € 45,30
    FERODO DDF1426C-1
    € 89,53
    FREMAX BD-6074
    GIRLING 6043391
    HELLA 8DD 355 128-191
    HELLA PAGID 8DD 355 128-191
    € 53,00
    JAPANPARTS DI-0354C
    JAPANPARTS DI0354JM
    JAPKO 600354C
    JURID 562606JC
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 360406089401
    MAXGEAR 19-2339
    MAXGEAR 19-2339SPORT
    MAXTECH 883433
    METZGER 6110521
    MEYLE 515 521 5024
    € 42,65
    MEYLE 583 521 5024/PD
    € 70,00
    MINTEX MDC1614
    MOTAQUIP LVBD1084Z
    NK 204851
    NK 314851
    OPTIMAL BS-8066HC
    PAGID 54266NC
    QUARO QD4778
    ROTINGER RT 20158-GL
    ROTINGER RT 20158-GL T3
    ROTINGER RT 20158-GL T6
    ROTINGER RT 20158
    ROTINGER RT 20158-GL T9
    ROTINGER RT 20158-GL T5
    SKF VKBD 80522 V1
    STELLOX 6020-4851V-SX
    SWAG 55 94 3926
    TEXTAR 92126603
    € 59,13
    TRW DF4339
    € 53,61
    VALEO 673068
    VALEO 197057
    ZIMMERMANN 610.3706.20
    € 60,80
    ZIMMERMANN 610.3706.52 (this product)

  • Applicability

    VOLVO
    S60 I
    S60 I (384) | 07.2000-04.2010 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2401ccm, 130pk, 96kw - D 5244 T2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    S60 I (384) | 07.2000-04.2010 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 D5 - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T5
    S60 I (384) | 07.2000-04.2010 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 265pk, 195kw - B 5234 T7
    S60 I (384) | 07.2000-04.2010 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    V70 Mk
    V70 Mk II (285) | 11.1999-12.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    V70 Mk II (285) | 11.1999-12.2008 2.3 - 2319ccm, 265pk, 195kw - B 5234 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.5 AWD - 2521ccm, 211pk, 155kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 T - 2521ccm, 209pk, 154kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 T AWD - 2521ccm, 209pk, 154kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5
    V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    XC90 I
    XC90 I (275) | 10.2002-12.2014 2.5 T AWD - 2521ccm, 209pk, 154kw - B 5254 T2
    XC90 I (275) | 10.2002-12.2014 2.5 T AWD - 2497ccm, 209pk, 154kw - B 5254 T9
    XC90 I (275) | 10.2002-12.2014 3.2 AWD - 3192ccm, 238pk, 175kw - B 6324 S
    XC90 I (275) | 10.2002-12.2014 3.2 AWD - 3192ccm, 243pk, 179kw - B 6324 S5
    XC90 I (275) | 10.2002-12.2014 D3 / D5 - 2400ccm, 163pk, 120kw - D 5244 T5
    XC90 I (275) | 10.2002-12.2014 D5 AWD - 2401ccm, 163pk, 120kw - D 5244 T
    XC90 I (275) | 10.2002-12.2014 D5 AWD - 2400ccm, 200pk, 147kw - D 5244 T18
    XC90 I (275) | 10.2002-12.2014 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    XC90 I (275) | 10.2002-12.2014 D5 AWD - 2400ccm, 163pk, 120kw - D 5244 T5
    XC90 I (275) | 10.2002-12.2014 T6 AWD - 2922ccm, 272pk, 200kw - B 6294 T
    XC90 I (275) | 10.2002-12.2014 V8 AWD - 4414ccm, 316pk, 232kw - B 8444 S

  • Original part numbers

    3142 3325 VOLVO
    3063 6074 4 VOLVO
    3073 6406 VOLVO
    3073 6406 7 VOLVO
    3063 6074 VOLVO
    3063 6074 3 VOLVO
    30736406 VOLVO ASIA
    31423325 VOLVO ASIA

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
