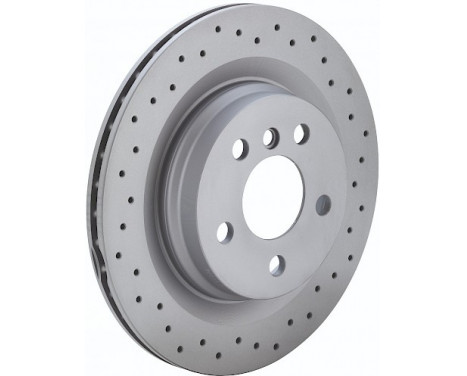

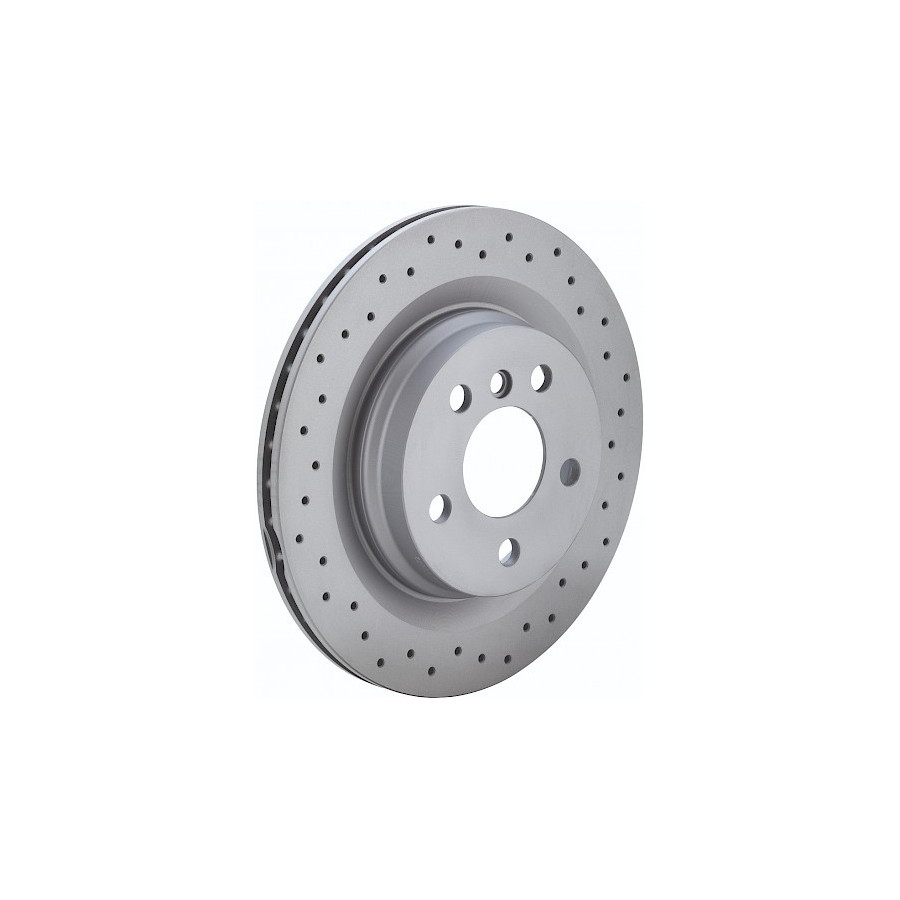

Brake Disc SPORT BRAKE DISC COAT Z 610.3716.52 Zimmermann
Product number: 0847055
Manufacturer number: 610.3716.52
EAN: 4250238758990
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

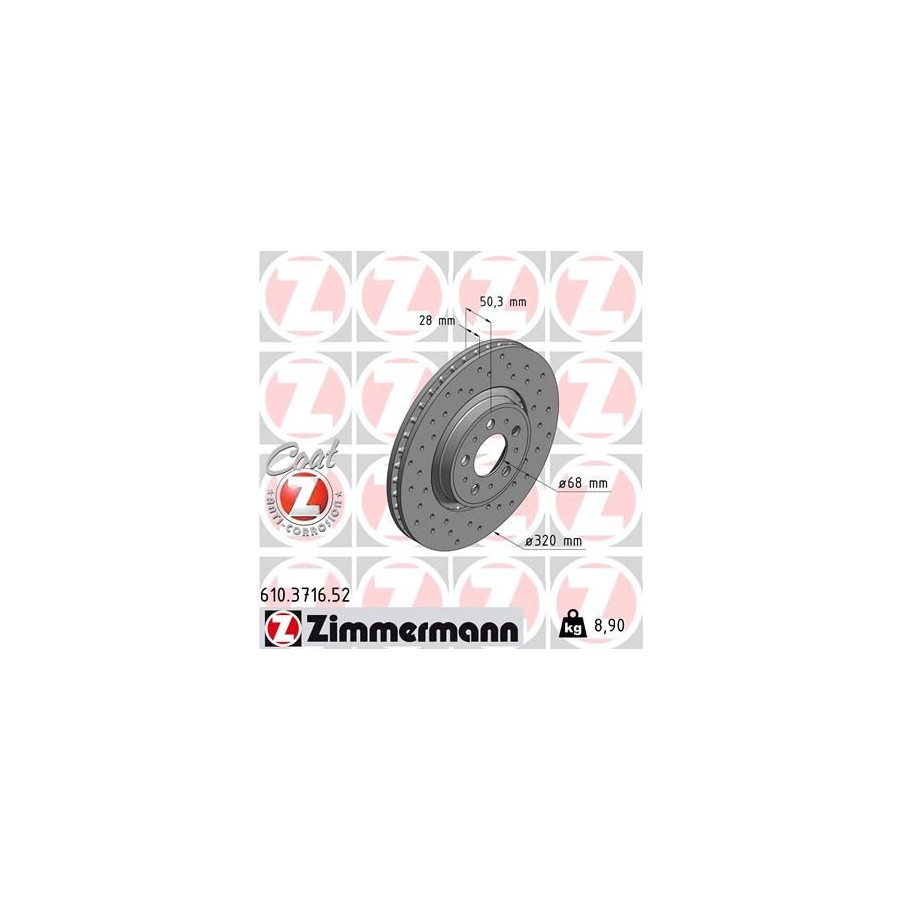

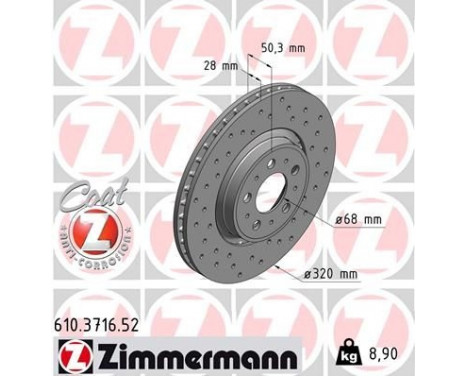

Outer diameter [mm] 320 Fitting Position Front Axle Rim Hole Number 5 Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 108 Brake Disc Type Ventilated outside Perforated Centering Diameter [mm] 68 Hole Arrangement / Number 10/5 Inspection Tag KBA 60872 Guarantee 2 years Height [mm] 50 Brake disc thickness (mm) 28 Minimum thickness (mm) 25 Weight [kg] 8,9 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17837 AP 25181 V AP 25181 ATE 24.0128-0184.1 BLUE PRINT ADF124370 BORG & BECK BBD5955S BRECO BV 8791 BRECO BS 8791 BREMBO 09.A757.11 BREMBO 09.A757.10 BREMSI CD7898V COMLINE ADC1925V DENCKERMANN B130626 DJ PARTS BD2992 DON PCD16192 EUROBRAKE 5815314862 EUROBRAKE 5815204862 FEBI BILSTEIN 43967 FERODO DDF1898C-1 FTE 9071361 FTE BS7726 GALFER B1.G228-0184.1 GIRLING 6047311 HELLA 8DD 355 117-851 Manufacturer Manufacturer number Price HELLA PAGID 8DD 355 117-851 JURID 562604JC-1 JURID 562604JC MAXGEAR 19-2250 MAXGEAR 19-2250SPORT METZGER 6110764 MEYLE 515 521 0033/PD MINTEX MDC1939 MOTAQUIP LVBD1818 NK 204862 NK 314862 OPTIMAL BS-8976HC ROTINGER RT 21015 ROTINGER RT 21015-GL T5 ROTINGER RT 21015-GL T6 ROTINGER RT 21015-GL T9 ROTINGER RT 21015-GL T3 ROTINGER RT 21015-GL SKF VKBD 80873 V1 SWAG 55 94 3967 TEXTAR 92178203 TRW DF4731 ZIMMERMANN 610.3716.20 ZIMMERMANN 610.3716.52 (this product) -
Applicability
VOLVO S60 I S60 I (384) | 07.2000-04.2010 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5 S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 170pk, 125kw - B 5244 S S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2 S60 I (384) | 07.2000-04.2010 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2 S60 I (384) | 07.2000-04.2010 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2 S60 I (384) | 07.2000-04.2010 2.4 D - 2401ccm, 130pk, 96kw - D 5244 T2 S60 I (384) | 07.2000-04.2010 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7 S60 I (384) | 07.2000-04.2010 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3 S60 I (384) | 07.2000-04.2010 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3 S60 I (384) | 07.2000-04.2010 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2 S60 I (384) | 07.2000-04.2010 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2 S60 I (384) | 07.2000-04.2010 D5 - 2400ccm, 163pk, 120kw - D 5244 T, D 5244 T5 S60 I (384) | 07.2000-04.2010 D5 - 2401ccm, 185pk, 136kw - D 5244 T4 S60 I (384) | 07.2000-04.2010 R 2,5 T AWD - 2521ccm, 300pk, 221kw - B 5254 T4 S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 250pk, 184kw - B 5234 T3 S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 265pk, 195kw - B 5234 T7 S60 I (384) | 07.2000-04.2010 T5 - 2401ccm, 260pk, 191kw - B 5244 T5 S80 I S80 I (184) | 05.1998-02.2008 2.0 - 1984ccm, 163pk, 120kw - B 5204 T4 S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 226pk, 166kw - B 5204 T3 S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5 S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2 S80 I (184) | 05.1998-02.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG2 S80 I (184) | 05.1998-02.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG S80 I (184) | 05.1998-02.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2 S80 I (184) | 05.1998-02.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3 S80 I (184) | 05.1998-02.2008 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2 S80 I (184) | 05.1998-02.2008 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2 S80 I (184) | 05.1998-02.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 200pk, 147kw - B 6294 S S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 204pk, 150kw - B 6304 S3 S80 I (184) | 05.1998-02.2008 3.0 - 2922ccm, 196pk, 144kw - B 6294 S2 S80 I (184) | 05.1998-02.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T S80 I (184) | 05.1998-02.2008 T5 AWD - 2435ccm, 200pk, 147kw - B 5244 T3 S80 I (184) | 05.1998-02.2008 T6 - 2783ccm, 272pk, 200kw - B 6284 T S80 I (184) | 05.1998-02.2008 T6 - 2922ccm, 272pk, 200kw - B 6294 T V70 Mk V70 Mk II (285) | 11.1999-12.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5 V70 Mk II (285) | 11.1999-12.2008 2.3 - 2319ccm, 265pk, 195kw - B 5234 T7 V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2 V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2 V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2 V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2 V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7 V70 Mk II (285) | 11.1999-12.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3 V70 Mk II (285) | 11.1999-12.2008 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3 V70 Mk II (285) | 11.1999-12.2008 2.5 AWD - 2521ccm, 211pk, 155kw - B 5254 T2 V70 Mk II (285) | 11.1999-12.2008 2.5 T - 2521ccm, 209pk, 154kw - B 5254 T2 V70 Mk II (285) | 11.1999-12.2008 2.5 T AWD - 2521ccm, 209pk, 154kw - B 5254 T2 V70 Mk II (285) | 11.1999-12.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5 V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 185pk, 136kw - D 5244 T4 V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5 V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4 V70 Mk II (285) | 11.1999-12.2008 T5 - 2319ccm, 250pk, 184kw - B 5234 T3 V70 Mk II (285) | 11.1999-12.2008 T5 - 2401ccm, 260pk, 191kw - B 5244 T5 XC70 I XC70 I Cross Country (295) | 10.1997-08.2007 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4 XC70 I Cross Country (295) | 10.1997-08.2007 D5 XC AWD - 2401ccm, 163pk, 120kw - D 5244 T -
Original part numbers
9 475 266 VOLVO 9475266 VOLVO -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
