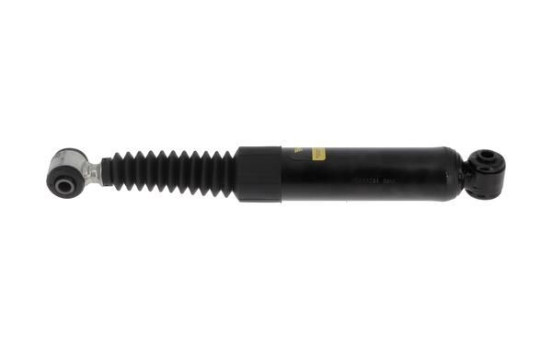

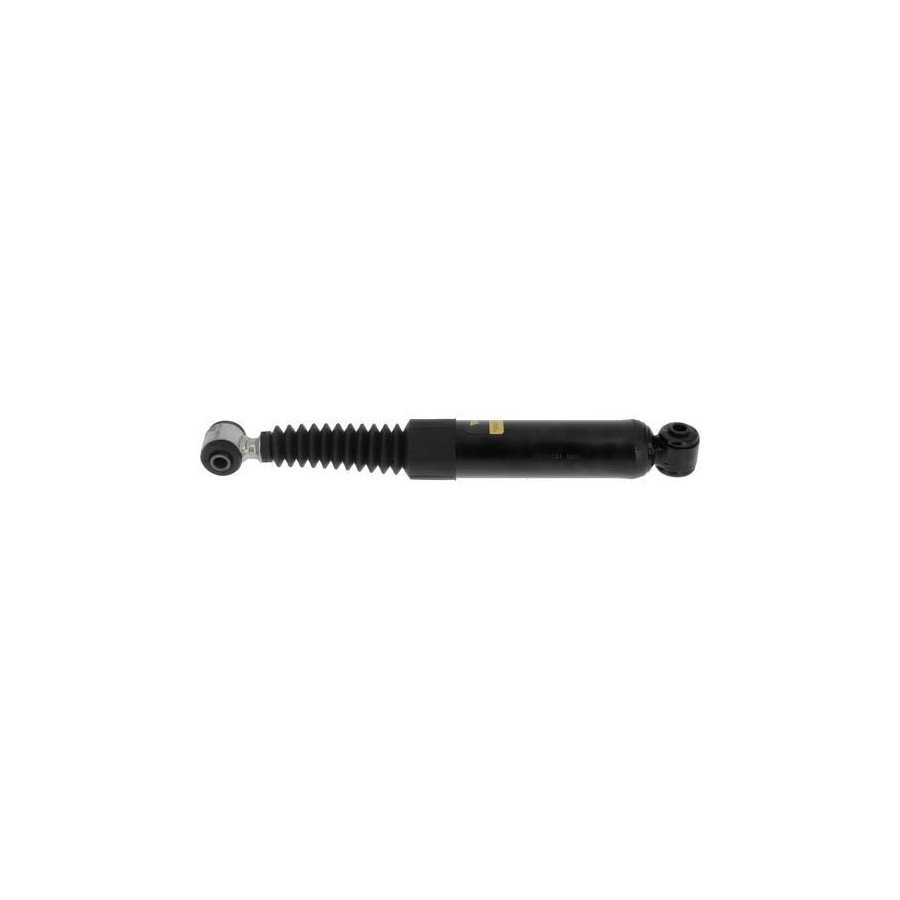

Shock Absorber MONROE ORIGINAL (Gas Technology) G2247

Shock Absorber MONROE ORIGINAL (Gas Technology) G2247

Product number: 1317337

Manufacturer number: G2247

EAN: 5412096759109

Winprice
RRP: € 105,25

€ 67,29

Incl. VAT
View product specifications
In stock
Delivery Tomorrow
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Quality car parts
  • checkmark EU Delivery: 2-3 days
  • checkmark Ask our experts for advice

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Shock Absorber TypeGas Pressure
    Length 1 [mm]291
    Length 2 [mm]398
    Packaging length [cm]45
    Packaging width [cm]5,1
    Packaging height [cm]5,5
    Shock Absorber SystemDouble End Pipe
    Shock Absorber DesignTelescopic Shock Absorber
    Guarantee2 years
    5-year warranty with accessories when replaced in pairs
    Shock Absorber Mounting TypeTop eye
    Bottom eye
    Weight [kg]1,900

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    ASHIKA MA-00130
    ASHIKA MA-00622
    BOGE 32-N77-A
    DACO 560622
    DACO 530603
    DENCKERMANN DSF185G
    EGT 383434EGT
    EUROREPAR 1623315480
    GABRIEL 69497
    GH GH-303771
    GSP 32111380
    JAPANPARTS MM-00622
    € 36,32
    JAPANPARTS MM-00130
    € 27,90
    JAPKO MJ00130
    JAPKO MJ00622
    LORO 232-02-149
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 351972070000
    MONROE G2247 (this product)
    MONROE G2247
    € 67,29
    OCAP 82256RU
    OPTIMAL A-68740G
    Oyodo 20A9159-OYO
    RECORD FRANCE 004567
    RECORD FRANCE 334567
    RED-LINE 39CI065
    RIDEX 854S0337
    SACHS 312 725
    € 62,82
    SNR SA95911.05
    SRLine S011476G
    STARK SKSA-0130864
    SYNCRONIX SYNC 1600

  • Applicability

    CITROEN
    C8
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 - 1997ccm, 136pk, 100kw - RFN (EW10J4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi - 1997ccm, 120pk, 88kw - RHK (DW10UTED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi - 1997ccm, 107pk, 79kw - RHM (DW10ATED4), RHT (DW10ATED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi - 1997ccm, 110pk, 81kw - RHT (DW10ATED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi - 1997ccm, 109pk, 80kw - RHW (DW10ATED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4), RHD (DW10CTED4), RHD (DW10CB)
    C8 (EA_, EB_) | 07.2002-12.2012 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.2 - 2230ccm, 158pk, 116kw - 3FZ (EW12J4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.2 HDi - 2179ccm, 163pk, 120kw - 4HP (DW12BTED4), 4HR (DW12BTED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.2 HDi - 2179ccm, 170pk, 125kw - 4HT (DW12BTED4), 4HS (DW12BTED4)
    C8 (EA_, EB_) | 07.2002-12.2012 2.2 HDi - 2179ccm, 128pk, 94kw - 4HW (DW12TED4)
    C8 (EA_, EB_) | 07.2002-12.2012 3.0 V6 - 2946ccm, 204pk, 150kw - XFX (ES9J4S)
    C8 Van
    C8 Van (EA_, EB_) | 11.2003-12.2009 2.0 (EBRFNC, EBRFNE) - 1997ccm, 136pk, 100kw - RFN (EW10J4)
    C8 Van (EA_, EB_) | 11.2003-12.2009 HDi 110 (EBRHTB) - 1997ccm, 110pk, 81kw - RHT (DW10ATED4)
    FIAT
    ULYSSE
    ULYSSE (179_) | 08.2002-06.2011 2.0 (179BXA11, 179BXA1A) - 1997ccm, 136pk, 100kw - RFN (EW10J4)
    ULYSSE (179_) | 08.2002-06.2011 2.0 D Multijet - 1997ccm, 120pk, 88kw - RHK
    ULYSSE (179_) | 08.2002-06.2011 2.0 D Multijet - 1997ccm, 136pk, 100kw - RHR
    ULYSSE (179_) | 08.2002-06.2011 2.0 JTD - 1997ccm, 107pk, 79kw - RHM (DW10ATED4)
    ULYSSE (179_) | 08.2002-06.2011 2.2 D Multijet - 2179ccm, 170pk, 125kw - 4HT (DW12BTED4), 4HS
    ULYSSE (179_) | 08.2002-06.2011 2.2 JTD - 2179ccm, 163pk, 120kw - 4HP, 4HR
    ULYSSE (179_) | 08.2002-06.2011 2.2 JTD - 2179ccm, 128pk, 94kw - 4HW (DW12ATED4)
    ULYSSE (179_) | 08.2002-06.2011 3.0 - 2946ccm, 204pk, 150kw - XFW
    LANCIA
    PHEDRA
    PHEDRA (179_) | 09.2002-11.2010 2.0 (179AXA11, 179AXA1A) - 1997ccm, 136pk, 100kw - RFN (EW10J4)
    PHEDRA (179_) | 09.2002-11.2010 2.0 JTD (179.AXE1A) - 1997ccm, 107pk, 79kw - RHM (DW10ATED4)
    PHEDRA (179_) | 09.2002-11.2010 2.2 D Multijet (179.AXM1B, 179.AXP11, 179.BXM1B,... - 2179ccm, 170pk, 125kw - 4HS, 4HT
    PEUGEOT
    807
    807 (EB_) | 06.2002-06.2010 2.0 - 1997ccm, 136pk, 100kw - RFN (EW10J4)
    807 (EB_) | 06.2002-06.2010 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
    807 (EB_) | 06.2002-06.2010 2.0 HDi - 1997ccm, 163pk, 120kw - RHH (DW10CTED4)
    807 (EB_) | 06.2002-06.2010 2.0 HDi - 1997ccm, 120pk, 88kw - RHK (DW10UTED4)
    807 (EB_) | 06.2002-06.2010 2.0 HDI - 1997ccm, 136pk, 100kw - RHR (DW10BTED4), RHD (DW10CTED4), RHR (DW10CB)
    807 (EB_) | 06.2002-06.2010 2.0 HDi - 1997ccm, 109pk, 80kw - RHW (DW10ATED4)
    807 (EB_) | 06.2002-06.2010 2.0 HDi - 1997ccm, 107pk, 79kw - RHW (DW10ATED4), RHM (DW10ATED4), RHT (DW10ATED4)
    807 (EB_) | 06.2002-06.2010 2.2 - 2230ccm, 158pk, 116kw - 3FZ (EW12J4)
    807 (EB_) | 06.2002-06.2010 2.2 HDi - 2179ccm, 170pk, 125kw - 4HT (DW12BTED4), 4HS (DW12BTED4)
    807 (EB_) | 06.2002-06.2010 2.2 HDi - 2179ccm, 128pk, 94kw - 4HW (DW12TED4)
    807 (EB_) | 06.2002-06.2010 2.2 HDi - 2179ccm, 136pk, 100kw - 4HW (DW12TED4)
    807 (EB_) | 06.2002-06.2010 3.0 V6 - 2946ccm, 204pk, 150kw - XFX (ES9J4S)
    807 Van
    807 Van (EB_) | 04.2004-05.2006 2.0 HDi (EBRHTBF, EBRHWBF) - 1997ccm, 109pk, 80kw - RHW (DW10ATED4), RHT (DW10ATED4)

  • Original part numbers

    5206AE CITROËN
    5206AR CITROËN
    5206Z3 CITROËN
    1401266180 FIAT
    1490901080 FIAT
    1495575080 FIAT
    1498473087 FIAT
    1401266180 LANCIA
    1490901080 LANCIA
    1495575080 LANCIA
    1498473087 LANCIA
    5206AC PEUGEOT
    5206AQ PEUGEOT
    5206Z4 PEUGEOT

  • Manufacturer

    Monroe

    Monroe Shocks and Struts, one of the most respected shock absorbers and feathers for passenger vehicles. The company, founded in 1916 in the town of Monroe by engineer August F. Meyer, began its production with tire pumps for the very first car owners.

    After the company came to Europe in 1964, the company began to focus more on innovations in the automotive industry. This resulted in the first gas-filled shock absorber in 1982 under the name Gas-Matic. In 1999, the Reflex shock absorbers and since 2003 the Quick-Strut range. In order to provide the automotive industry with equivalent replacement shock absorbers for each car, Monroe has been producing the OESpectrum range since 2011. Fully equivalent shock absorbers for all imaginable car models.

    Due to Monroe's innovation rank, the car industry quickly adopted new technologies introduced by Monroe. Whether your car is young or old, it's likely that the technique used for shock absorbers and springs is ultimately developed by Monroe. This is exactly why many fitters and service points rely on Monroe shock absorbers and springs.

    Monroe products distinguish themselves in the following areas:

    - Equipped with the latest original shock absorber technology
    - Developed to match the driving profile of the original shock absorbers and springs
    - Limited lifetime warranty
    - Very good rust-proof coating

    At the moment we have the following Monroe products in our range:

    - Shock absorbers
    - springs
    - Veerpootlagers & veerpootrubbers
    - Connection rubbers
