ACV

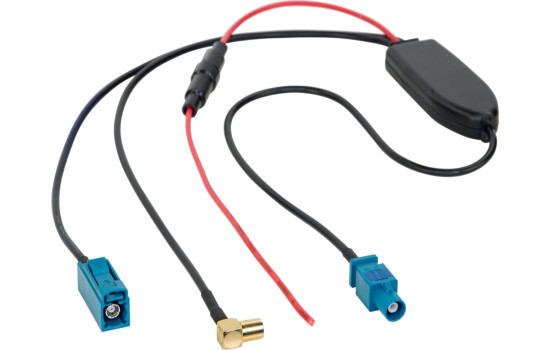

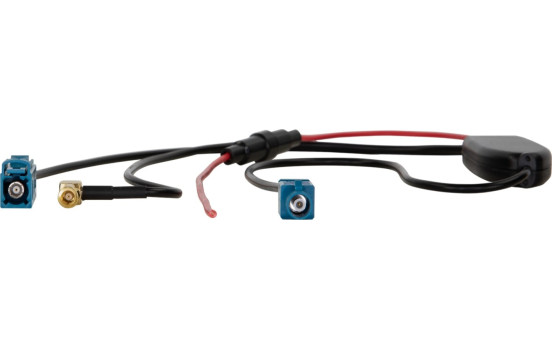

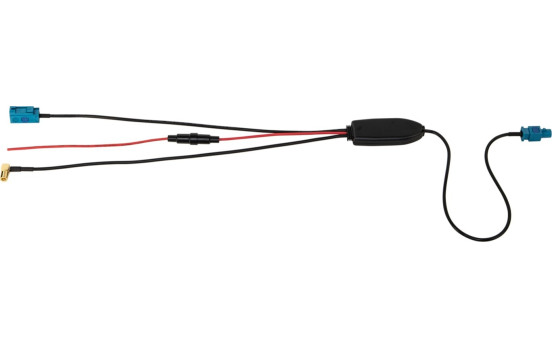

Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f)

Universally applicable

Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f) Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f), Image 2 Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f), Image 3
  • Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f)
  • Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f), Thumbnail 2
  • Antenna Splitter AM / FM / DAB+ Fakra(m)>Fakra(f)/SMB(f), Thumbnail 3

Product number: 1684666

Manufacturer number: 151000-40

EAN: 4026724025927

€ 65,99

Incl. VAT
View product specifications
In stock
Delivery Day after tomorrow
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Quality car parts
  • checkmark EU Delivery: 2-3 days
  • checkmark Ask our experts for advice

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

  • Specifications

    Connection AM/FM: Fakra Z(m) > Fakra Z(f)
    DAB+ connection: SMB(f)

    red: +12V antenna remote control

    In case of reception problems:

    Check antenna cable and antenna adapter for continuity.
    Check +12V antenna control

    Check vehicle for errors using LED lighting afterward
    Check vehicle for errors due to modified voltage converter/power adapter USB charging adapter
    Checking the vehicle for errors using retrofitted digital output stages

    Receiving modes:
    AM/FM
    DAB+

    Installation:
    Vehicle interior

    Dimensions:
    L = 6.96 cm / W = 2.49 cm / H = 1.04 cm

    Connection:
    AM/FM input: Fakra Z(m) / RG174 / L=30 cm
    DAB+ connection: SMB(f) / RG174 / L=30 cm
    AM/FM connection: Fakra Z(f) / RG174 / L=30 cm

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5 MHz - 108 MHz
    DAB/DAB+: 174 MHz - 240 MHz

    Reinforcement:
    AM/FM 10dB
    DAB+: 20dB

    Power supply:
    AM/FM
    DAB+: +12V external

    Power consumption:
    AM/FM
    DAB+: 28mA max.

    Fuse:
    500mA

    Optional:
    Antenna adapter SMB(m)>SMA(m) > Article: 1502-29

    Suitable for:
    AM
    FM
    DAB
    Guarantee2 years
