ACV

Roof antenna GSM/UMTS/LTE/5G GNSS (GPS/GLONASS) Shark II

Universally applicable

Roof antenna GSM/UMTS/LTE/5G GNSS (GPS/GLONASS) Shark II

Product number: 1684588

Manufacturer number: 15-7727098

EAN: 4026724025002

€ 132,99

Incl. VAT
View product specifications
In stock
Delivery Day after tomorrow
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Roof antenna GSM/UMTS/LTE GNSS(GPS/GLONASS/Galileo/Navstar)
    Design Shark II
    NB:
    NEW ITEM FOR 15-7727095
    CONNECTION AND ACCESSORIES CHANGED
    OPTIONAL ACCESSORIES LISTED BELOW
    Reception:
    GSM/UMTS/LTE/5G
    GNSS

    Assembly:
    Installation location: rear roof
    Bore round: 19 mm
    Square hole: 15mm x 15mm
    Tightening torque: 6.5 nm +/- 20%
    Dimensions:
    Antenna base: L = 11.7 cm / W = 7.6 cm / H = 6.2 cm

    Connection:

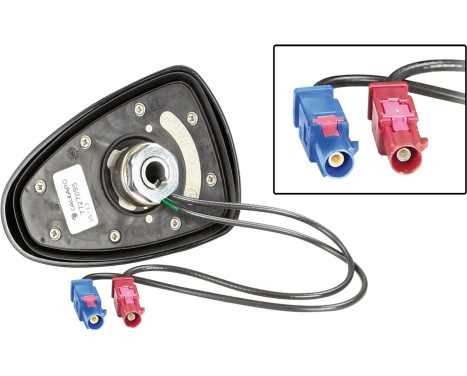

    GSM/UMTS/LTE: Fakra D(m) bordeaux RG174 / 290 mm
    GNSS connector: Fakra C(m) blue RG174 / 290 mm

    Reception range:
    2G GSM 698 - 960 Mhz / 1710 - 2160 Mhz
    3G UMTS 1700 - 2160 Mhz
    4G LTE 698 - 960 Mhz / 1710 - 2160 Mhz / 2490 -2690 Mhz
    5G 698 - 960 MHz / 2490 - 2690 MHz / 3400 - 3800 MHz
    GNSS 1559 - 1605MHz
    Extra:
    GSM:/UMTS/LTE/5G: 2 > 6 dBi peak / -2.5 > -1dBi average
    GNSS: 30dBi
    energy consumption
    GSM/UMTS/LTE/G5: 4W max. input
    Power supply:
    GNSS: 3V - 5V phantom power
    GNSS: 45mA max

    Energy consumption:
    GNSS: 45mA max
    Impedance:
    GSM/UMTS/LTE/5G: 50 ohm
    GNSS: 50 ohm
    standing wave ratio:
    GSM/UMTS/LTE: 2:1 / 2.5:1
    GNSS: 2:1
    sound rating:
    GNSS: 1.4db
    Polarization:
    GSM:/UMTS/LTE/5G: Linear-Vertical
    GNSS: Right-handed circular RHCP

    Options:
    GNSS
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
    GSM/UMTS/LTE
    Antenna cable extension Fakra(m) > Fakra(f) 500cm: 1524-500
    Antenna adapter Fakra D(m) > FME(f): 1520-60

    Suitable for:
    GSM UMTS LTE 5G
    Universal
    MaterialPlastic
    FootIncluding
    Length6 cm
    applicationSharkfin
    CableIncluding
    Guarantee2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    Day after tomorrow
