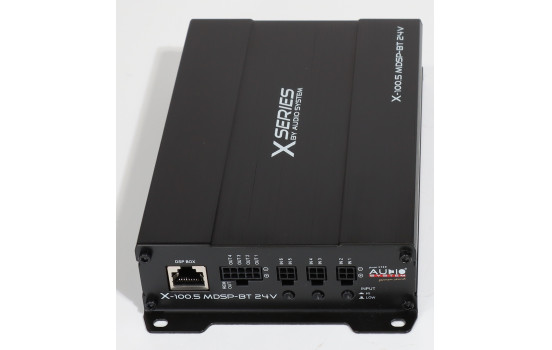

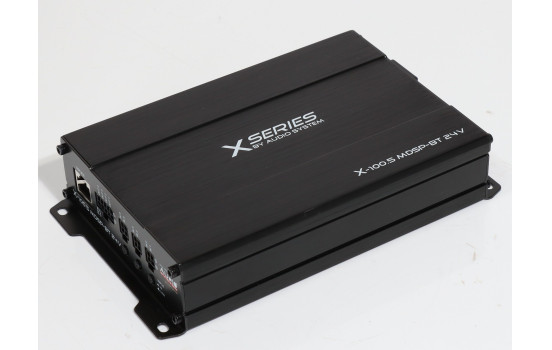

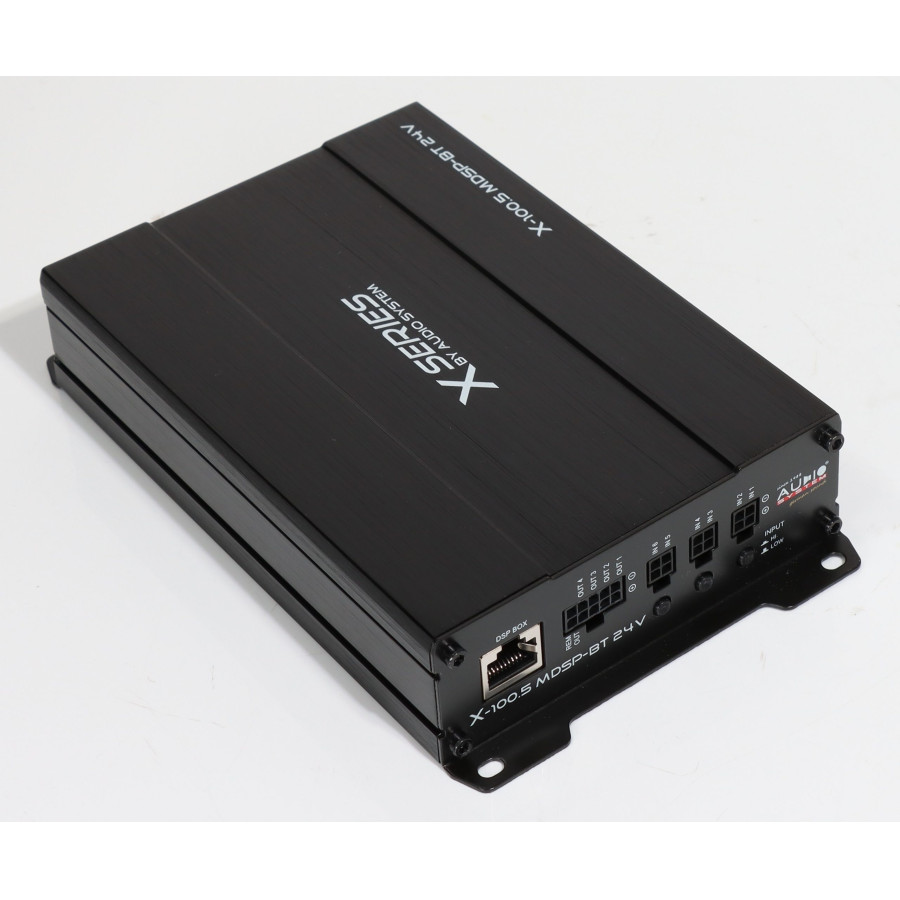

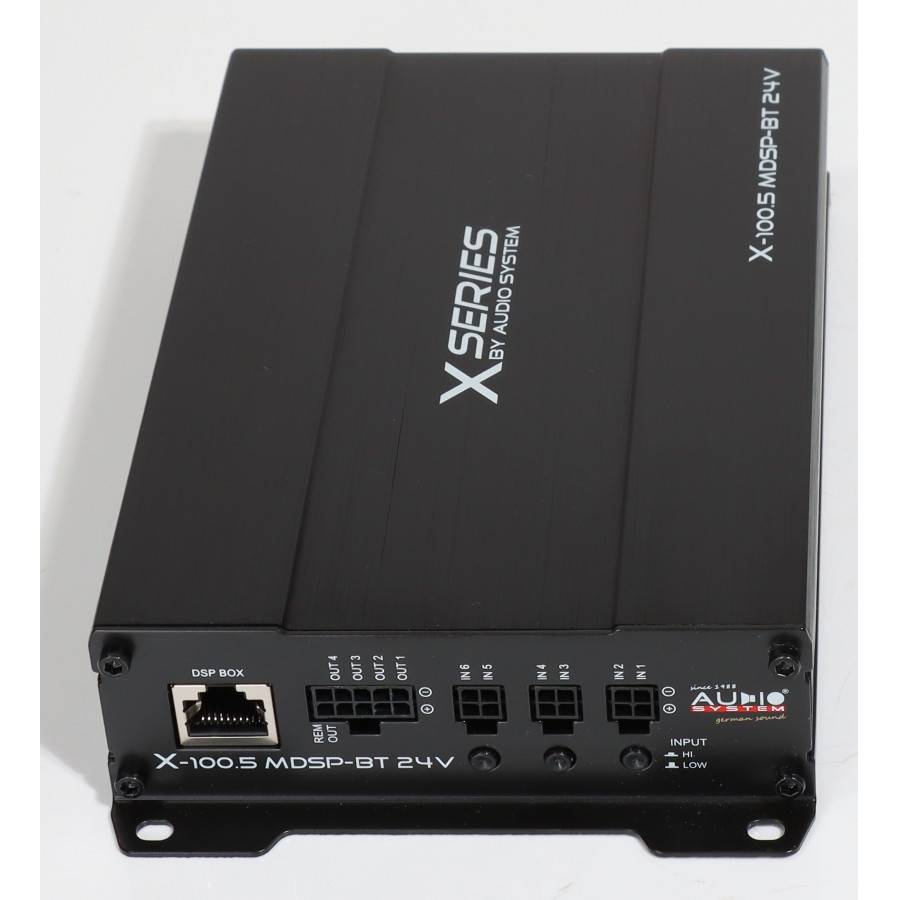

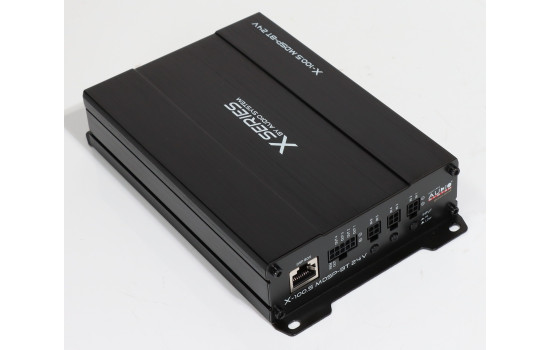

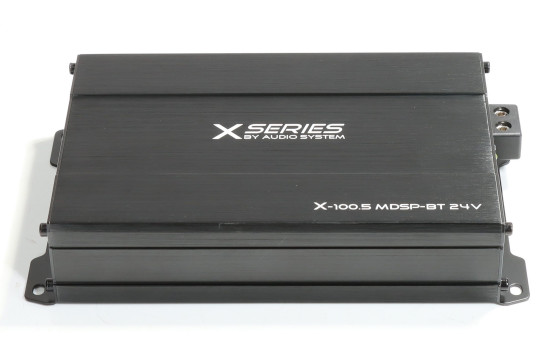

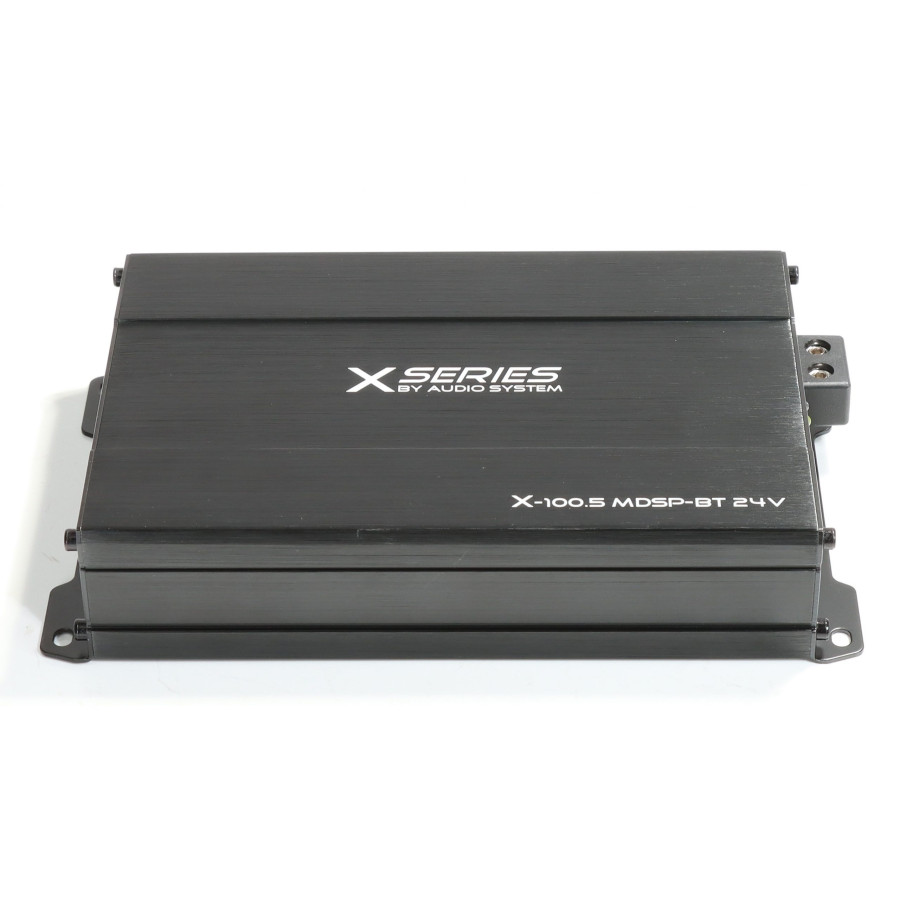

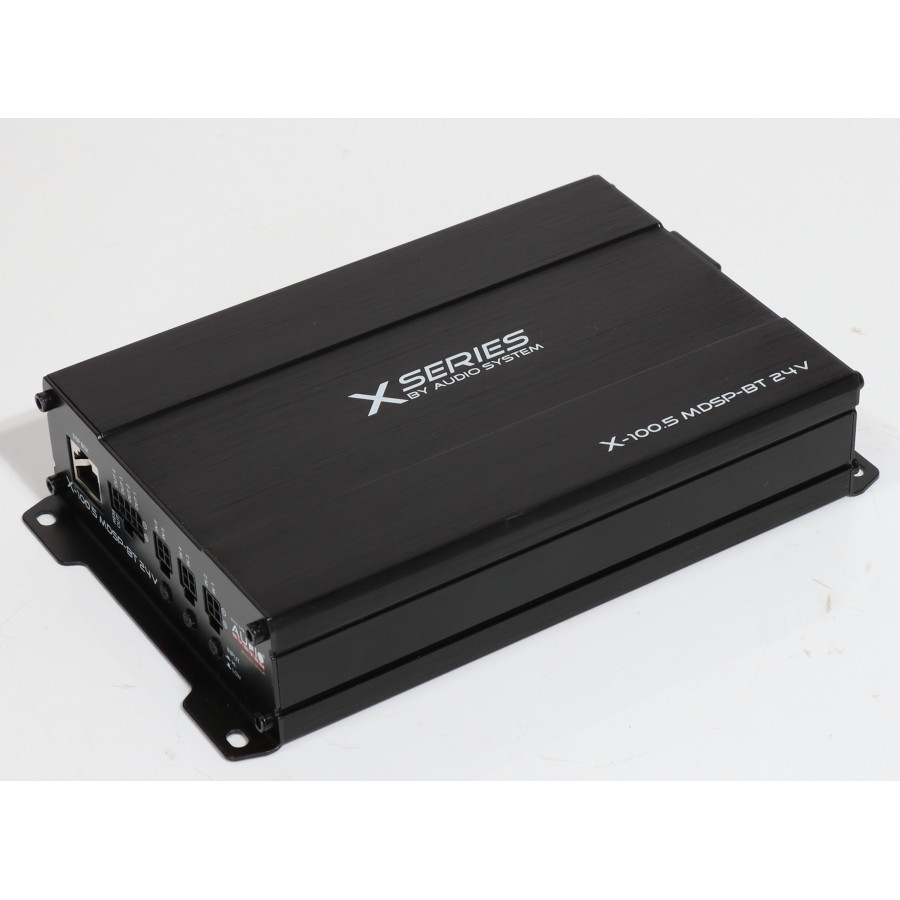

X-SERIES 5-channel amplifier with 9-channel DSP and BT 24 Volt

1. 5-channel amplifier with 9-channel DSP and BT
2. APP software adjustable via ANDROID-BT or iOS-BT
3. 9-channel SIGMA DSP processor from ANALOG DEVICES with automatic UPDATE via WLAN
4. 30x parametric EQs per channel
5. 8x presets up to 48 dB slope
6. 4x DSP-controlled RCA outputs (5 volts)
7. 6x RCA inputs (low level 0.5 to 4 volts)
8. 6x Molex high-level inputs (up to 12V) via BTL or SE signal detection with automatic switch-on
9. 1x remote output

Frequency range: 10-24000 Hz
Signal to noise ratio ADC: 107 dB and DAC: 112 dB
Start/stop possible up to 18 volts/5 sec.
Operating voltage 20-32 volts
Operating temperature from -40 °C to + 85 °C

• 4x 100 WRMS at 4 Ohms
• 4x 140 WRMS at 2 Ohms
• 1x 30 WRMS at 4 Ohms

113 x 38 x 163 mm

Suitable for:
5-Channel

---

Output	590 Watt
Number of channels	5
Guarantee	2 years
