CVBS Transporter/Camper multimode rearview camera white (5 viewing angles!)

Universal CVBS rear-view camera – Van/camper (white)
This rearview camera is a universal CVBS camera designed for use in vans and motorhomes. The housing design and mounting method allow for practical retrofit installation in vehicles in this segment.

Product overview
Product: Rearview camera (CVBS, universal)
Color: White
Design: Van/camper
Mounting type: Surface/surface mounting, teardrop shape
Optics: Glass lens
Settings: Multimode settings via push button
Design and practical benefits

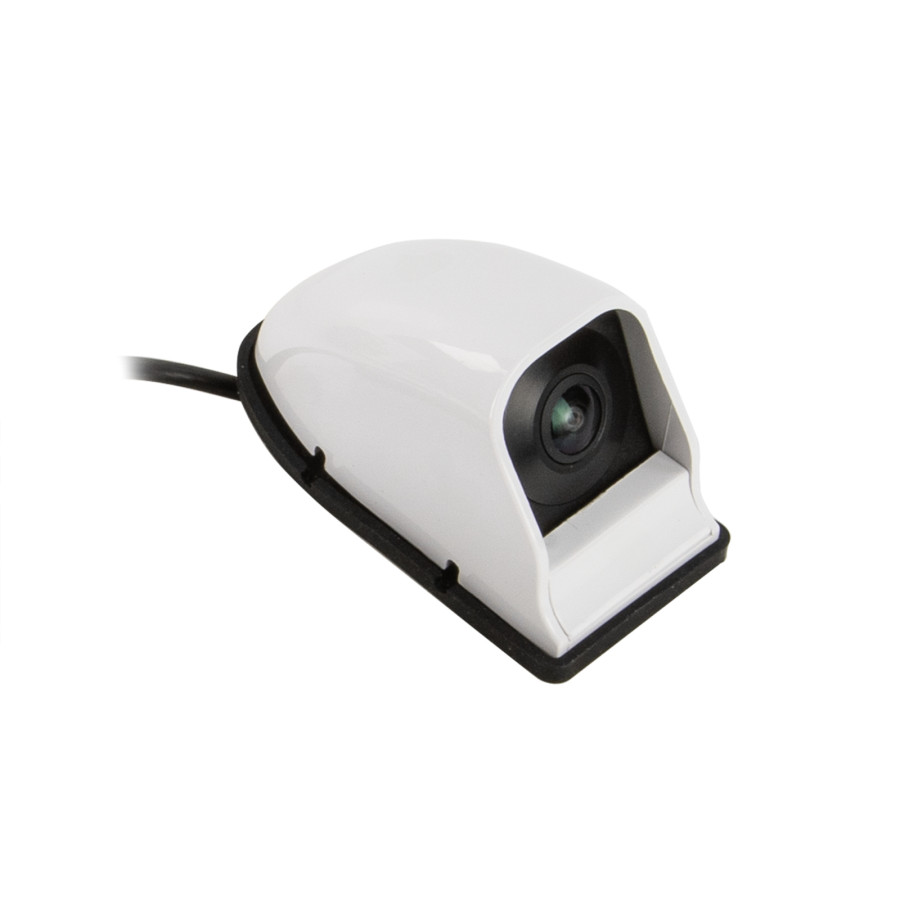

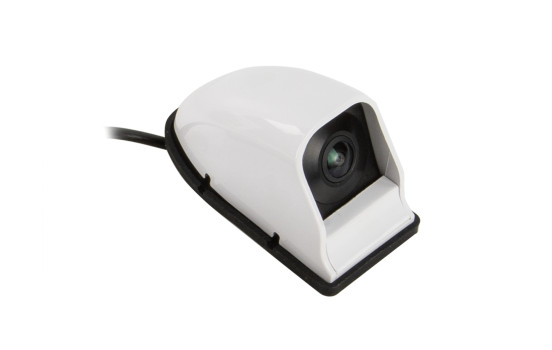

The surface-mount/surface mount in a teardrop-shaped housing is intended for external installation on vehicles. With the integrated push button, multimode settings can be performed directly on the camera, making it easier to adapt to various installation positions and requirements. The glass lens is a robust optical configuration for use in cars.

Typical applications
Retrofitting a rearview camera for vans
Retrofitting a rearview camera for motorhomes
Integration into systems with CVBS/composite video signal

Vehicle compatibility
Intended design
Design: transporter / camper

Technical data, signals, connections and CAN bus
Multimode
Multimode settings via button / with glass lens

Power supply
Camera operating voltage: +12 V
Camera power supply voltage: +12 V

Connections
Connection, red: +12 V / +24 V switched, loadable, fused
Connection, black: chassis earth direct / GND
RCA (m) yellow: video

Camera functions
Construction: plastic housing / metal
Color: white
Extras: teardrop shape / multimode settings via button / glass lens
Sensor type: 1/3 AHD
Imaging system: NTSC color
Effective pixels: 1080 x 720
Lens: F 2.8
Min. lux: 0.03 lux
Resolution: TV lines
Lens angle: diagonal 210°
Viewing angle: horizontal 150°, vertical 110° +5°
Dust and water resistant: IP67
Connection: 4-pin ACV system connector (male) Ø 5.2 mm
Operating voltage: +12 V DC
Supply voltage: +12 V
Current consumption: max. 60 mA
Operating temperature range: -20 °C to 70 °C
Dimensions (L / W / H): 84.2mm / 42mm / 46.9mm

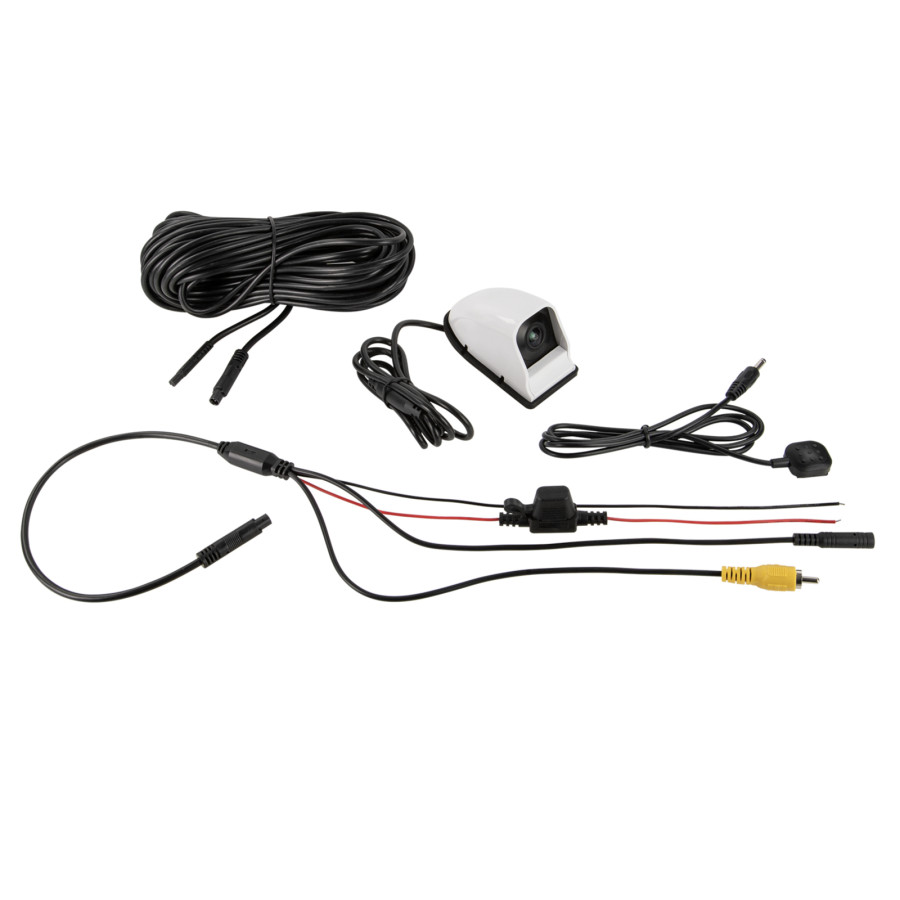

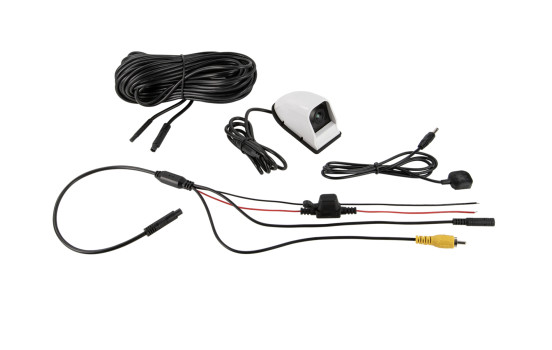

Cables and pipes
Camera cable, 1 m +/-: 4-pin acv system connector (m) Ø 5.2 mm
Extension cable, 6.5 m +/-: 4-pin ACV system connector (f) Ø 10 mm / 4-pin ACV system connector (m) Ø 5.2 mm
Power cable, red, 3 m +/- continuous wired: connection to camera / connection of reversing light to monitor
Grounding cable / GND, black, 3 m +/- continuously wired: connection of chassis ground / GND to camera / connection of chassis ground / GND directly to monitor
Connection cable, 20 cm +/-: 4-pin ACV system connector (f) Ø 10 mm
Connection cable, 20 cm +/-: red: power supply
Connection cable, 20 cm +/-: black: earth / GND
Connection cable, 20 cm +/-: RCA (m) yellow: video
Connection cable, 20 cm +/-: jack: multimode button

Installation accessories
Camera connection with interfaces: electronic NO relay 2V–12V / 1.5A max. > Item: 40-AD-REMOTE
Camera connection with reversing light: voltage stabilizer reversing camera reversing signal > Article: 771000-6100

Optional accessories
Camera cable extension for ACV camera, 5 m > Item: 771000-6305
Camera cable extension for ACV camera, 10 m > Item: 771000-6310
Camera cable extension for ACV camera, 15 m > Item: 771000-6315

Installation instructions
Assembly
Mounting type: add-on, teardrop-shaped
Before the installation
Before installation, check the viewing angle and alignment of the camera at the installation location using a test monitor.

Installation accessories
Camera connection to interfaces: electronic NO relay 2 V–12 V / max. 1.5 A. > Item: 40-AD-REMOTE
Camera connection to reversing light: voltage stabilizer reversing camera reversing signal > Article: 771000-6100

Important notes
Operation
Note: ACV cameras are suitable for continuous use.
Before the installation
Before installation, check the viewing angle and alignment of the camera at the installation location using a test monitor.

Power supply
Camera operating voltage: +12 V
Camera power supply voltage: +12 V

Suitable for:
Universal Various models Various years

---

application	Universal
Guarantee	2 years
