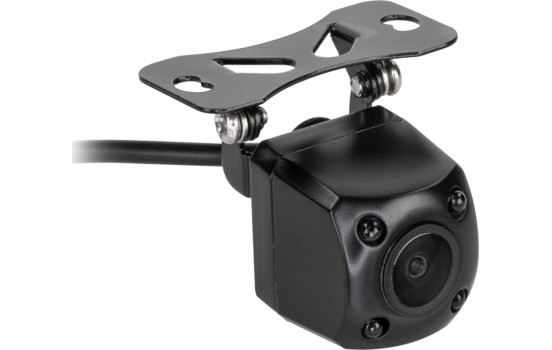

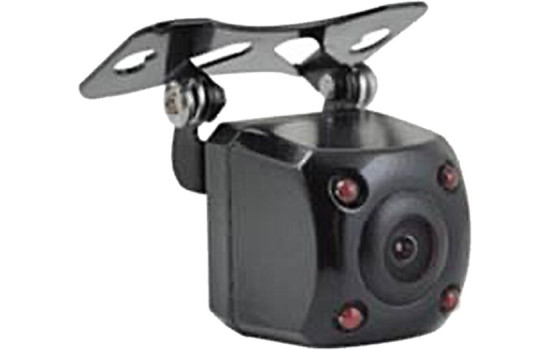

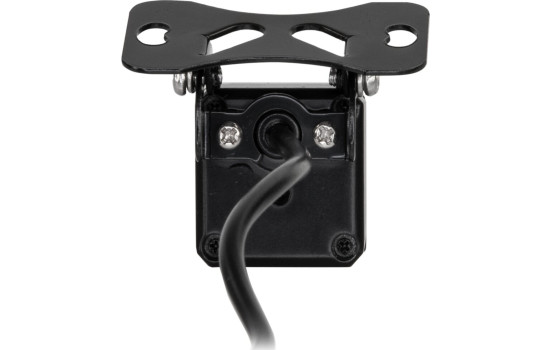

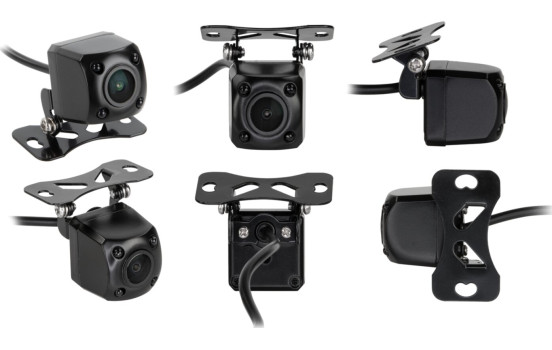

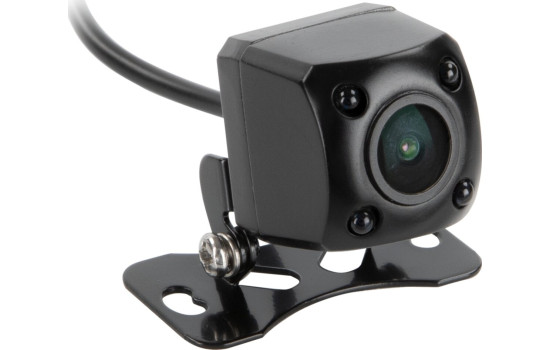

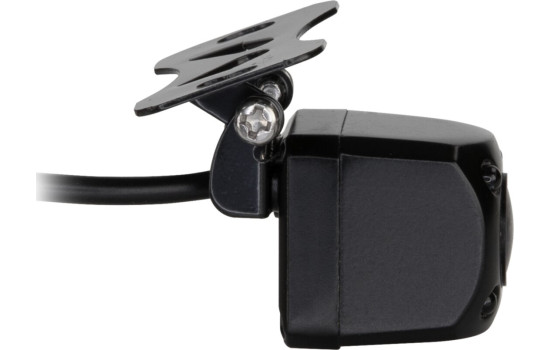

Mini reversing camera universal black NTSC with image lines, mirror function and night vision function
Universally applicable
Product number: 1688412
Manufacturer number: 771000-6701
EAN: 4026724339819
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Mini reversing camera universal (square) base
with image lines and mirror function
Note:
The camera must not be connected without the voltage converter from the cable set.
All Acv cameras are suitable for continuous use.
Camera features:
Construction: plastic / metal
Color: black
Extras: image lines, mirror function via jumpers and night vision function
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 592
Lens: 1.9 mm / F 2.0
Min. Lux: 0 lux with active night vision function
Resolution: 700 TV lines
Viewing angle: 170° + 5°
Viewing angle: horizontal 115°, vertical 80°+5°
Dust and waterproof: IP68
Connection: 4 pin mini connector 5.2 mm
Supply voltage: 12 V DC + 10%
Power consumption: 200mA with active night vision function
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 85 ° C
Dimensions: L/W/H - 28.3mm/23.4mm/23.4mm
Connection cable to the camera:
1 meter cable with 4-pin mini connector 5.2 mm

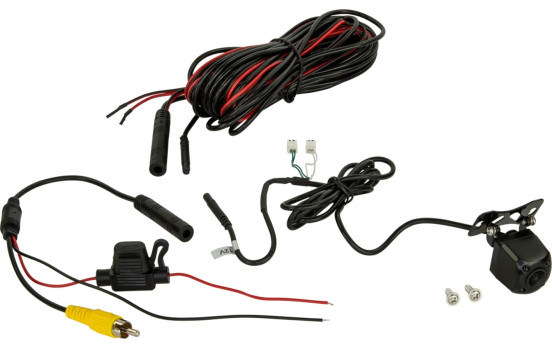

Cable set:
1 meter cable with 4-pin mini plug including 2 jumpers
6.5 meter extension including 3 meter power cable for connection to the reversing light
and via cabling to the connection cable on the screen/interface 4-pin mini connector 10 mm and plug 5.2 mm
0.2 meter power connection cable including fuse and video connection cable (RCA)
Optional accessories:
771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 extension 15 meters
Suitable for:
Universal Various models Various years
application Universal Guarantee 2 years -
