Rear view camera van/camper, teardrop-shaped, white
Universally applicable
Product number: 1688416
Manufacturer number: 771000-6709
EAN: 4026724342512
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

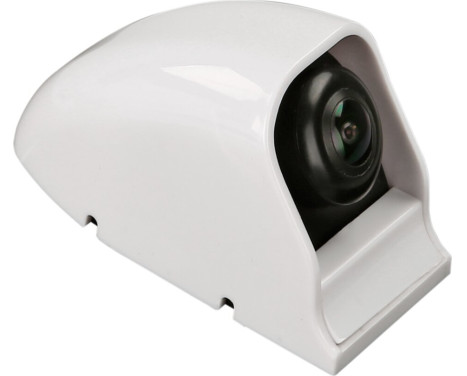

Universal rear view camera
Design: Transporter / Camper
Mounting type: extension
Glass lens
NB:
All ACV cameras are suitable for connection of +12V continuous operation
Connection:
red +12V switched load stable (fused)
black earth/GND body direct
Camera product features:
Construction: Plastic housing / Metal
color: white
Extras: teardrop shape
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 960 x 480
Lens: F 2.8
Min.lux: 0.3 lux
Resolution: 600 TV lines CVBS D1
Viewing angle: 120° (diagonal)
Viewing angle: horizontal 150° vertical 110° + 5
Dust and water resistant: IP68
Connection: 4-pin mini plug 5.2 mm
Supply voltage: +12 Volt DC + 10
Current consumption: 60mA max.
Operating temperature range: -20°C - 70°C
Dimensions (with holder): L / W / H / 84.2mm / 42mm / 46.9mm

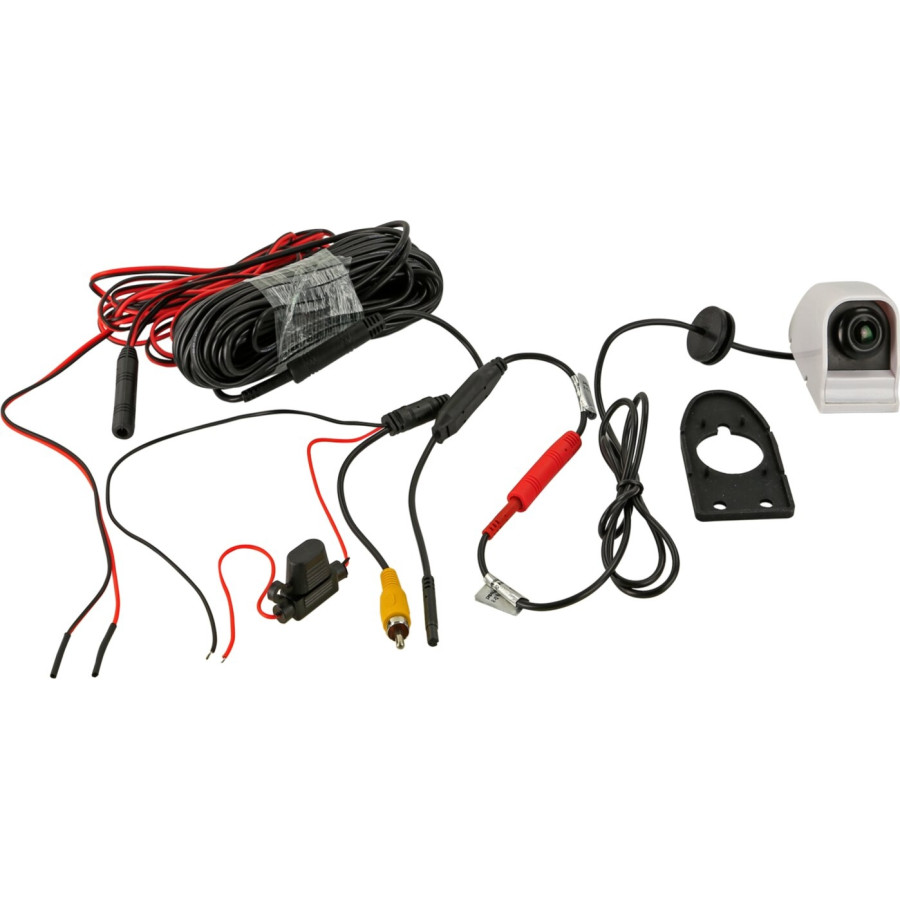

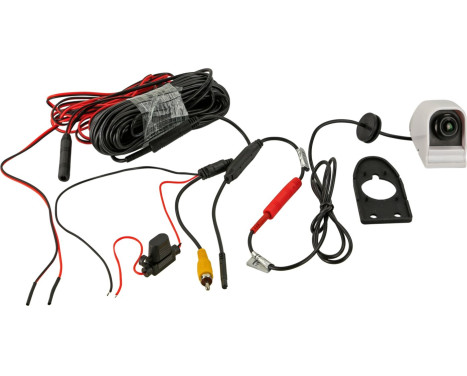

Connection cable to the camera:
3 meter cable with 8-pin mini plug 7mm incl. 1 jumper.
Adapter cable 8-pin mini plug > 4-pin mini plug
Cable set:
3 meter cable with 4-pole mini plug incl. 1 jumper
15 meter extension incl. 3 meter power cable for connection to reversing light and feed-through to connection cable on terminal box
4-pin mini jack 10 mm and plug 5.2 mm
0.2 meter power cable incl. fuse and video connection cable (RCA)
Installation accessories:
Camera connection to interfaces > NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
Connection camera to reversing light > Voltage stabilizer reversing signal reversing camera: 771000-6100
Optional accessories:
Camera cable extension for acv camera 5m: 771000-6305
Camera cable extension for acv camera 10m: 771000-6310
Camera cable extension for acv camera 15m: 771000-6315
Suitable for:
Universal Various models Various years
application Universal Guarantee 2 years -
Applicability
Universally applicable
-
