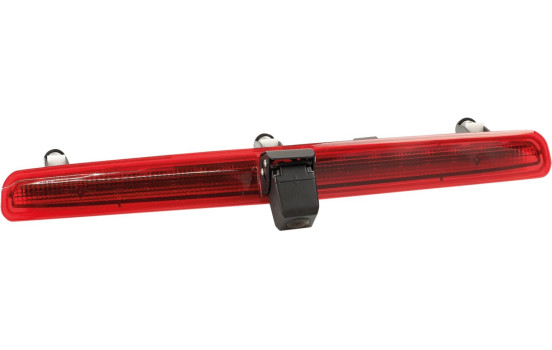

Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function

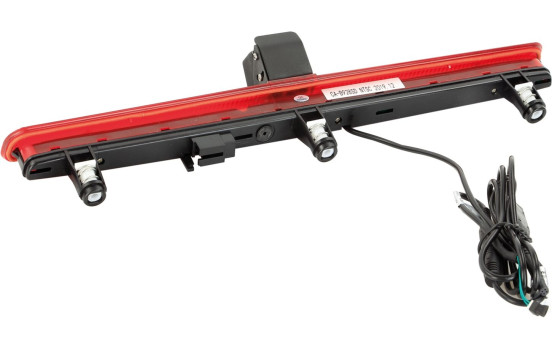

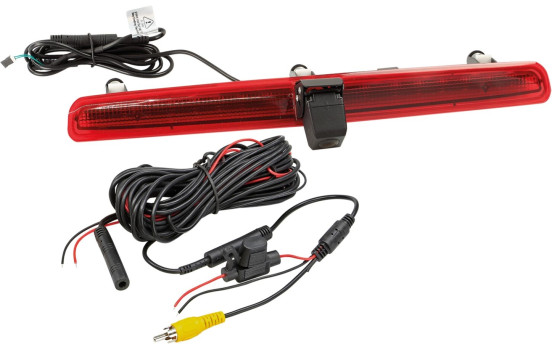

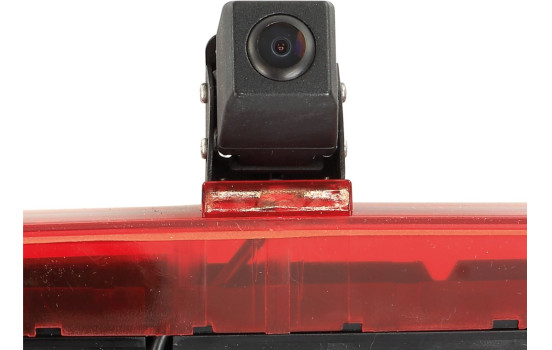

Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Image 2 Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Image 3 Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Image 4
  • Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function
  • Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Thumbnail 2
  • Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Thumbnail 3
  • Reversing camera 3rd brake light VW T5 2003-2015 with orientation lines, night vision function, Thumbnail 4

Product number: 1688377

Manufacturer number: 771000-6070

EAN: 4026724339956

€ 166,99

Incl. VAT
View product specifications
In stock
Delivery 05-05-2026
Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Quality car parts
  • checkmark EU Delivery: 2-3 days
  • checkmark Ask our experts for advice

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Reversing camera Volkswagen T5 Transporter with tailgate -> 2015 to replace the 3rd brake light with orientation lines, night vision function and 20 ° adjustable viewing angle


    Product features camera:

    • Structure: plastic
    • Color: black/red
    • Extras: orientation lines and night vision function, viewing angle adjustable by 20°
    • Sensor type: 1/3" CMOS
    • Image system: NTSC color
    • Effective pixels: 762 x 504
    • Lens: 1.9mm / F 2.0
    • Min.Lux: 0 lux with night vision function
    • Resolution: 480 TV lines
    • Viewing angle: 170 °
    • Viewing angle: horizontal 150° vertical 90° + 5°
    • Protected against dust and water: IP67
    • Connection: 4-pin mini plug 5.2 mm
    • Supply voltage: 12Volt + 10%
    • Power consumption: 150mA with night vision function enabled
    • Operating temperature range: -30°C - 75°C
    • Storage temperature: -40 ° C - 80 ° C
    • Dimensions: see OEM brake light
    • Connection cable on the camera:
    • 1 meter cable with 4-pin mini plug 5.2 mm


    Cable set:
    1 meter cable with 4-pin mini plug incl. 1 jumper
    6.5 metre extension including 3 metre power cable for connection to the reversing light and through wiring to the connection cable on the end device
    4-pin mini jack 10mm and plug 5.2mm
    0.2 meter power cable including fuse and video connection cable (RCA)

    Optional accessories:
    771000-6305 extension 5 meters
    771000-6310 extension 10 meters
    771000-6315 extension 15 meters

    Suitable for:
    Volkswagen T5 Transporter 2003-2015

    applicationReady
    Guarantee2 years

  • Applicability

    VOLKSWAGEN
    TRANSPORTER /
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 1.9 TDI - 1896ccm, 105pk, 77kw - AXB
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 1.9 TDI - 1896ccm, 85pk, 63kw - AXC
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 1.9 TDI - 1896ccm, 84pk, 62kw - BRR
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 1.9 TDI - 1896ccm, 102pk, 75kw - BRS
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 - 1984ccm, 115pk, 85kw - AXA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 BiTDI - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 BiTDI 4motion - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 84pk, 62kw - CAAA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 102pk, 75kw - CAAB
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 114pk, 84kw - CAAD
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CAAE, CCHB
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI - 1968ccm, 116pk, 85kw - CSDA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 136pk, 100kw - CAAE, CCHB
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TSI - 1984ccm, 204pk, 150kw - CJKA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.0 TSI 4motion - 1984ccm, 204pk, 150kw - CJKA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.5 TDI - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.5 TDi - 2461ccm, 163pk, 120kw - BLJ
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.5 TDI - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 3.2 V6 4motion - 3189ccm, 235pk, 173kw - BDL, BKK, CFLA
    TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ) | 04.2003-08.2015 VR6 3.2 - 3189ccm, 235pk, 173kw - BDL, BKK, CFLA
    TRANSPORTER Mk
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 1.9 TDI - 1896ccm, 105pk, 77kw - AXB
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 1.9 TDI - 1896ccm, 85pk, 63kw - AXC
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 1.9 TDI - 1896ccm, 84pk, 62kw - BRR
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 1.9 TDI - 1896ccm, 102pk, 75kw - BRS
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 - 1984ccm, 115pk, 85kw - AXA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 BiTDI - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 BiTDI 4motion - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI - 1968ccm, 84pk, 62kw - CAAA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI - 1968ccm, 102pk, 75kw - CAAB
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI - 1968ccm, 114pk, 84kw - CAAD
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CAAE
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 136pk, 100kw - CAAE, CCHB
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.5 TDI - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.5 TDI - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 VR6 3.2 - 3189ccm, 235pk, 173kw - BDL, BKK
    TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, | 04.2003-08.2015 VR6 3.2 4motion - 3189ccm, 235pk, 173kw - BDL
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 1.9 TDI - 1896ccm, 105pk, 77kw - AXB
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 1.9 TDI - 1896ccm, 85pk, 63kw - AXC
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 1.9 TDI - 1896ccm, 84pk, 62kw - BRR
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 1.9 TDI - 1896ccm, 102pk, 75kw - BRS
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 - 1984ccm, 115pk, 85kw - AXA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 BiTDI - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 BiTDI 4motion - 1968ccm, 180pk, 132kw - CFCA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI - 1968ccm, 84pk, 62kw - CAAA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI - 1968ccm, 102pk, 75kw - CAAB
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI - 1968ccm, 114pk, 84kw - CAAD
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CAAE, CCHB
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 140pk, 103kw - CAAC, CCHA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TDI 4motion - 1968ccm, 136pk, 100kw - CAAE, CCHB
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TSI - 1984ccm, 204pk, 150kw - CJKA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.0 TSI 4motion - 1984ccm, 204pk, 150kw - CJKA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.5 TDI - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.5 TDI - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 130pk, 96kw - AXD, BNZ
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 2.5 TDI 4motion - 2461ccm, 174pk, 128kw - BPC, AXE
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 VR6 3.2 - 3189ccm, 235pk, 173kw - BDL, BKK, CFLA
    TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH) | 04.2003-08.2015 VR6 3.2 4motion - 3189ccm, 235pk, 173kw - BDL, BKK, CFLA
