Reversing camera for motorhomes/caravans Hella 3rd brake light red

Product description

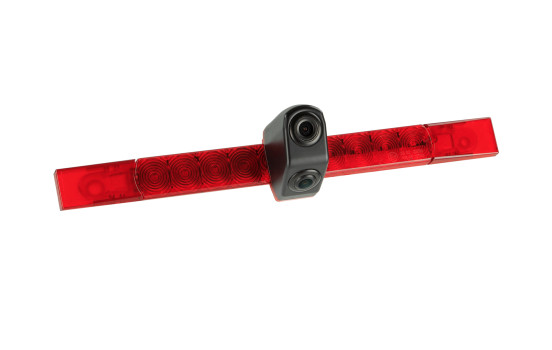

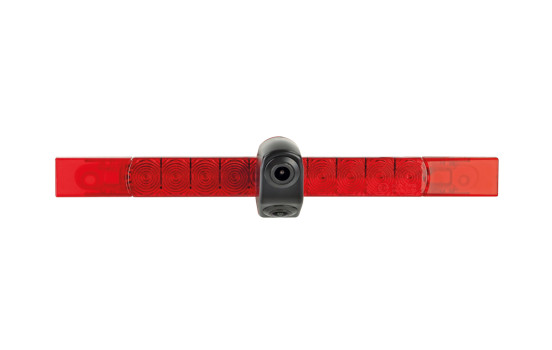

The Hella reversing camera for motorhomes and caravans is integrated into the third brake light and features innovative Dual-View technology with two camera lenses. This feature offers an extensive view of the area behind your vehicle, significantly increasing safety when reversing.

Advantages of the Hella reversing camera
Dual-View technology: two camera lenses offer an extensive view and minimize blind spots.
Integrated solution: the camera is integrated into the third brake light, enabling easy installation and an unobtrusive design.
Increased safety: improves visibility when reversing and reduces the risk of accidents.
Technical details
The camera is specifically designed for use in motorhomes and caravans and features a robust construction that can withstand the demands of daily use.

Suitability for vehicles
Suitable for caravans and motorhomes with Hella 2DA 343 106-201 third brake light.

To replace the original third brake light.

Color: red.

Technical specifications

Connections
Red: Remote camera +12V switched, protected by a load-stable fuse.
Yellow: Proximity camera +12V switched, protected by a load-stable fuse.
Black: Ground/GND directly on body.
White: Mass/GND directly on bodywork.
Black: body mass.
Red: trigger cable +12V switched camera 1.
Yellow cinch: camera 1.
Yellow: trigger cable +12V switched camera 2.
White cinch: camera 2.

Product features
Construction: plastic.
Color: black/red.
Extras: 2 camera lenses.
Sensor type: 1/3" CMOS.
Imaging system: NTSC color.
Effective pixels: 976 x 592.
Lens: 1.9 mm / F 2.0.
Min. lux: 0.1.
Resolution: 600 TV lines.
Camera 1 field of view: diagonal 170°, horizontal 115°, vertical 75° + 5°.
Camera 2 field of view: diagonal 95°, horizontal 48 + 5°, vertical 34 + 5°.
Dust and water resistant: IP68.
Connection: 7-pin plug.
Supply voltage: 12 volts + 10%.
Current consumption: 180 mA.
Operating temperature range: -30 °C to 75 °C.
Storage temperature: -40 °C to 80 °C.
Dimensions: see OEM brake light.

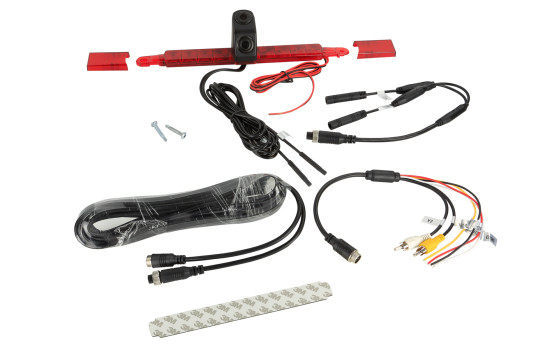

Connection cable
0.5 meter cable with 7-pin plug (m).

Cable set
10-meter 7-pin extension cable.
0.2 meter 7-pin connection cable.

Installation instructions
Camera connection to interfaces: electronic contact relay 2V-12V/1.5A max: 40-AD-REMOTE.
Camera connection to reversing light, reversing camera and voltage stabilizer for reversing signal: 771000-6100.

Suitable for:
Universal Various models Various years

---

application	Universal
Guarantee	2 years
