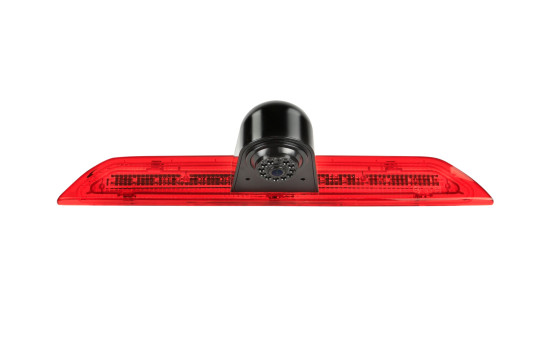

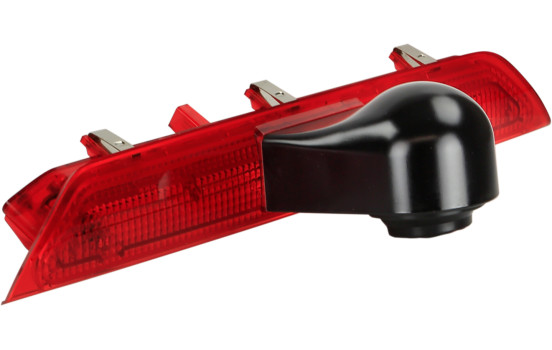

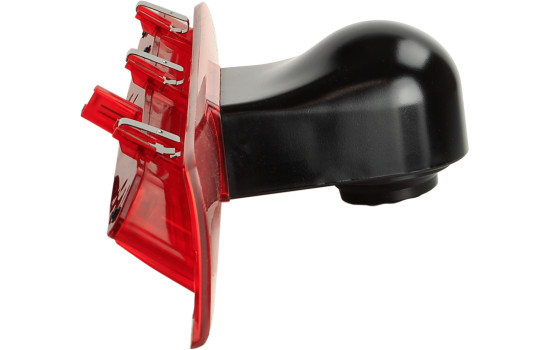

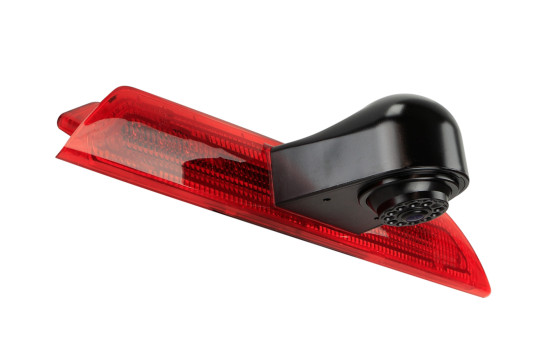

Reversing Camera Ford Transit 2014-2020
Product number: 1688366
Manufacturer number: 771000-6056
EAN: 4026724334791
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Rear view camera
Ford Transit (V363) 2014 - 2018
To replace the OEM 3rd brake light
With orientation lines and night vision function
20° adjustable viewing angle
Message:
All ACV cameras are suitable for connection of +12V continuous (switched voltage)
Connection:
red +12V switched load stable (fused)
black earth/GND body direct
Camera product features:
Material: Plastic
Color: black/red
Extras: Orientation lines via jumper and night vision function, viewing angle adjustable by 20
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 592
Lens: 1.9mm / F 2.0
Min.lux: 0 with active night vision function
Resolution: 600 TV lines
Viewing angle: 160° + 5
Viewing angle: horizontal 115° vertical 75° + 5°
Dust and water resistant: IP67
Connection: 4-pin mini plug 5.2 mm
Supply voltage: 12Volt + 10
Power consumption: 150mA with night vision function enabled
Operating temperature range: -30°C - 75°C
Storage temperature: -40°C - 80°C
Dimensions: see OEM brake light
Connection cable to the camera:
1 meter cable with 4-pin mini plug 5.2 mm
Cable set:
1 meter cable with 4-pin mini plug incl. 1 jumper
6.5 meter extension incl. 3 meter power cable for connection to reversing light
and the feed-through to the monitor connection cable
4-pin mini jack 10 mm and plug 5.2 mm
0.2 meter power cable incl. fuse and video connection cable (RCA)
Installation accessories:
Camera connection to interfaces via electronic relay 2V-12V/1.5A max: 40-AD-REMOTE
Connection camera to reversing light Reversing camera Voltage stabilizer Reversing signal: 771000-6100
Optional accessories:
771000-6305 Extension 5 meters
771000-6310 Extension 10 meters
771000-6315 Extension 15 meters
Suitable for:
Ford Transit 2014-2019
application Ready Guarantee 2 years -
Applicability
FORD TOURNEO CONNECT TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.0 EcoBoost - 998ccm, 100pk, 74kw - M2GA, M2GB, B3GA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 EcoBlue - 1499ccm, 75pk, 55kw - BEGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 EcoBlue - 1499ccm, 101pk, 74kw - Z2GA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 EcoBlue - 1499ccm, 120pk, 88kw - ZTGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 TDCi - 1499ccm, 75pk, 55kw - XUGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 TDCi - 1499ccm, 101pk, 74kw - XVGA, XVGB, XVGC, XXGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 TDCi - 1499ccm, 120pk, 88kw - XWGA, XWGB, XWGC TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.5 TDCi - 1499ccm, 95pk, 70kw - XXGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.6 EcoBoost - 1596ccm, 150pk, 110kw - JQGA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.6 TDCi - 1560ccm, 115pk, 85kw - T1GA TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.6 TDCi - 1560ccm, 95pk, 70kw - TZGA, TZGB TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | 09.2013-12.2022 1.6 TDCi - 1560ccm, 75pk, 55kw - UBGA TRANSIT CONNECT TRANSIT CONNECT MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 75pk, 55kw - BEGA TRANSIT CONNECT MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 101pk, 74kw - Z2GA TRANSIT CONNECT MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 120pk, 88kw - ZTGA TRANSIT CONNECT MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 75pk, 55kw - XUGA TRANSIT CONNECT MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 101pk, 74kw - XVGA, XVGB, XVGC, XXGA TRANSIT CONNECT MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 120pk, 88kw - XWGA, XWGB, XWGC TRANSIT CONNECT MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 115pk, 85kw - T1GA TRANSIT CONNECT MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 95pk, 70kw - TZGA, TZGB TRANSIT CONNECT MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 75pk, 55kw - UBGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.0 EcoBoost - 998ccm, 100pk, 74kw - M2GA, M2GB, B3GA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.0 Flexifuel - 998ccm, 100pk, 74kw - B3GB TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 75pk, 55kw - BEGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 101pk, 74kw - Z2GA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 EcoBlue - 1499ccm, 120pk, 88kw - ZTGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 75pk, 55kw - XUGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 101pk, 74kw - XVGA, XVGB, XVGC, XXGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 120pk, 88kw - XWGA, XWGB, XWGC TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.5 TDCi - 1499ccm, 95pk, 70kw - XXGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.6 EcoBoost - 1596ccm, 150pk, 110kw - JQGA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 115pk, 85kw - T1GA TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 95pk, 70kw - TZGA, TZGB TRANSIT CONNECT V408 Box Body/MPV | 09.2013-??? 1.6 TDCi - 1560ccm, 75pk, 55kw - UBGA -
