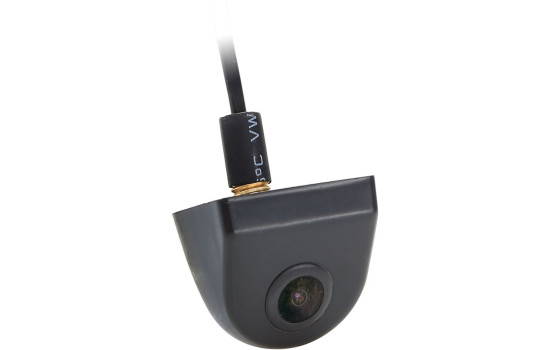

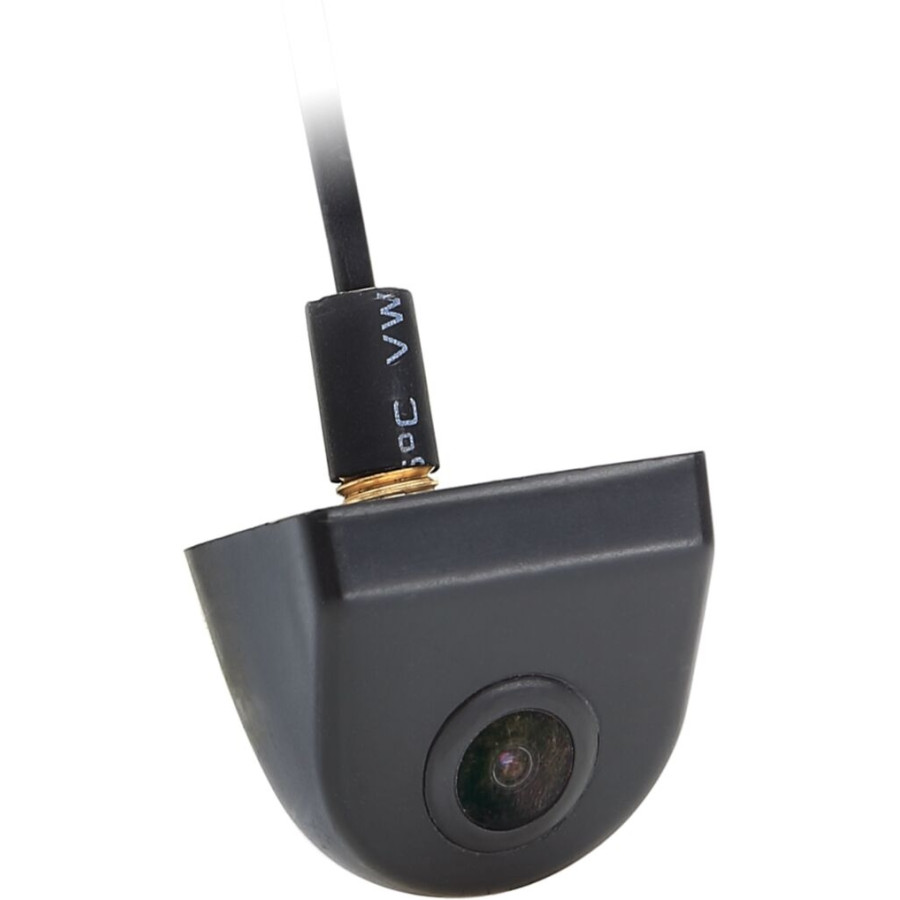

Reversing Camera mini black NTSC with image lines and mirror function

Camera mini black NTSC with image lines and mirror function incl. 6.5m cable with RCA connection

Mounting method: under-mounted / extension

With horizontal and vertical mirror function
Camera operating voltage: + 3V
Connection without voltage converter will damage the camera
Connection:
red + 12V switched load stable (fused)
black ground / GND body direct

Camera Product Features:
Construction: plastic with 8 mm threaded tube (cable guide)
Color black
Extras: Horizontal and vertical mirror function via jumpers
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 728 x 488
Lens: 1.9mm / F 2.0
Lux: 0.3
Resolution: 600 TV lines
Viewing angle: 170 °
Viewing angle: horizontal 103° vertical 78° + 5 °
Dust and waterproof: IP68
Connection: 4-pin mini plug 5.2 mm
Supply voltage: 12-24Volt DC + 10%
Current consumption: 200mA
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 85 ° C
Dimensions: L/W/H - 34.5mm/33mm/27.57mm

1 meter cable with 4-pole mini plug 5.2mm

Cable set:

1 meter cable with 4-pin mini plug incl. 2 jumpers

6.5 meter extension incl. 3 meter power cable for connection to reversing light
and the feed-through to the connection cable on the fan coil unit.
4-pin mini jack 10 mm and plug 5.2 mm

0.2 meter power cable incl. fuse and video connection cable (RCA)

Installation accessories:

Camera connection to interfaces NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
Connection camera to reversing light Reversing camera Voltage stabilizer Reversing signal: 771000-6100

Optional accessories:

771000-6305 Extension 5 meters
771000-6310 Extension 10 meters
771000-6315 Extension 15 meters


Suitable for:
Universal Various models Various years

---

application	Universal
Guarantee	2 years
