1-DIN Kit Audi A3 2003 > with compartment

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Audi A3 (Type 8P) 05/2003 - 05/2012
2/3 door
Audi A3 Sportback (type 8PA) 09/2004 - 10/2012
4/5 doors
Audi A3 (type 8P) 01/2008 - 03/2013
Convertible

Until autumn 2006 only for models with Symphony radio or RNS-E navigation!

Color: black

Remark:

CAN bus

Connection: ISO / Mini ISO plug
Connection: 40-pin Quadlock VAG connector
Connection: 2-channel / 4-channel OEM sound system > Cinch(m) front/rear

Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 1-DIN OEM device with 2 rotary knobs
Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 2-DIN OEM device
Vehicles with RNS-E 16:9 OEM navigation

Vehicles without Bosch BNS 5.0 monochrome OEM navigation*

Retrofit devices with preamplifier output power greater than 3V

Retrofit devices with preamplifier output power less than 3 V:
LFB Audi A3/A4/A6/R8/TT 40Pin Quadlock amplifier 2/4 channels > Item: 42sad006
LFB Audi A2/A3/A4/A6/TT ISO/Mini ISO Amp 2/4 Channel > Item: 42sad008

blue: +12V amplifier amplifier remote control

Compatible with all LFB Interface vehicles:

LFB Audi A1/A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 Channel > Part: 42sad002
LFB Audi A2/A3/A4/A6/TT ISO/Mini ISO amplifier 2/4 channel > Part: 42sad003

The following signals are included:

Re-imported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with LFB tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

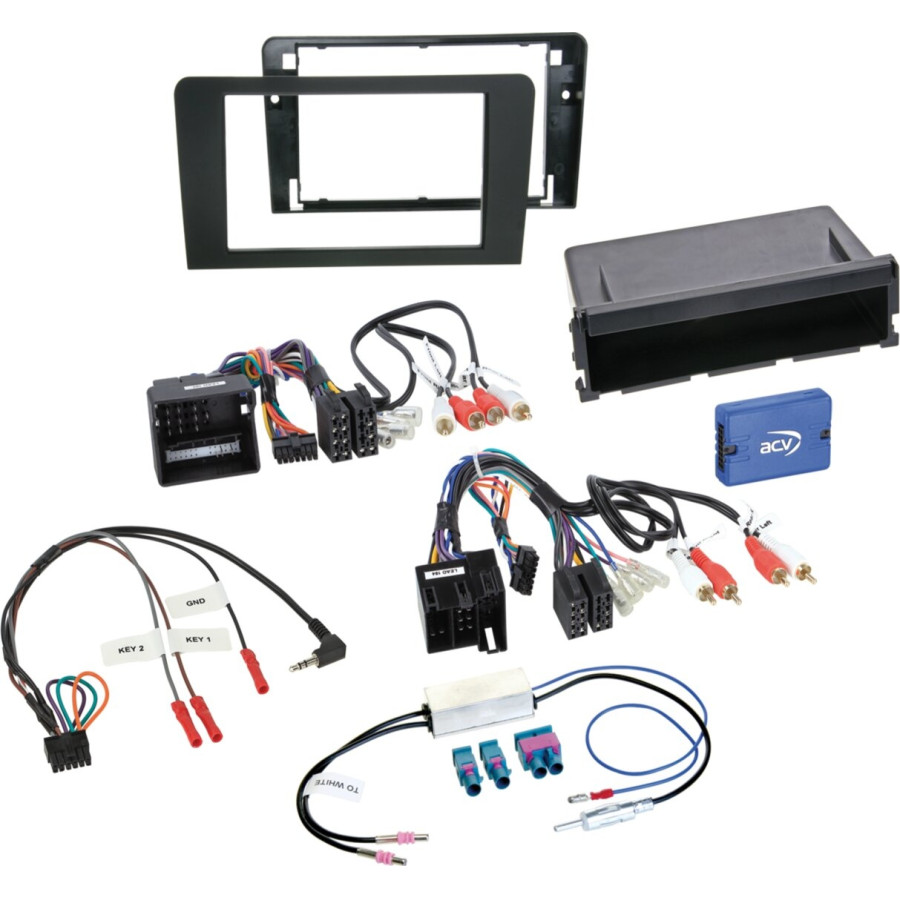

Scope of delivery:

2-DIN RB with compartment PRO Audi A 3 (8P / 8PA) black > Part: 281320-14-1-0
LFB Audi various vehicles ISO/40Pin Quadlock Amp > Part: 42sad00c-0
LFB cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Antenna adapter Fakra(m)(Set)>DIN(m) 12V Phantom: Article: 1524-70-0

Suitable for:
Audi A3 2003-2013

---

Colour	Black
application	Ready
Size	1-DIN
Guarantee	2 years
