1-DIN kit Mini Cooper (R50/R52/R53)

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

NB:
Radio in the vehicle on the left side
Adjustments are required for vehicles with aluminum trim strips (interior)
I Bus

Connection: 17-pin BMW plug
Connection: 40-pin Quadlock BMW plug
Vehicles with Business OEM device

Vehicles without OEM Professional Navigation*
Vehicles without OEM sound system**

Remove OEM add-on components > CD changer/TV tuner/telephone module

Compatible with all LFB Interface vehicles:

SWI Mini R50/R52/R53 17Pin IBus > Item: 42sbm003
SWI Mini 40Pin Quadlock IBus > Item: 42sbm004

Suitable for the following vehicles:

BMW Mini (R50/R53) 06/2001 - 11/2006***
BMW Mini (R52) 07/2004 - 08/2008

The following signals are provided:

SWI

17-pin BMW plug:

*Vehicles with Professional Navigation BMW extension 17 Pin(f) > 17 Pin(m)/antenna 6.5m > Article: 1020-21-6500-0
**Vehicles with sound system (no DSP/Harman Kardon) Adapter active system BMW 17 Pin > Article: 13-1020-50

40-pin BMW plug:

*Vehicles with Professional Navigation BMW Extension Quadlock(f) > Quadlock(m)/antenna 6.5m > Article: 1024-25-6500-0
**Vehicles with sound system (no DSP/Harman Kardon) SWI BMW Mini Quadlock/Amp > Item: 42sbm007
***Vehicles with Harman Kardon OEM sound system SWI BMW Mini (R53) 2001-2006 Amp Harman Kardon > Item: 42sbm011

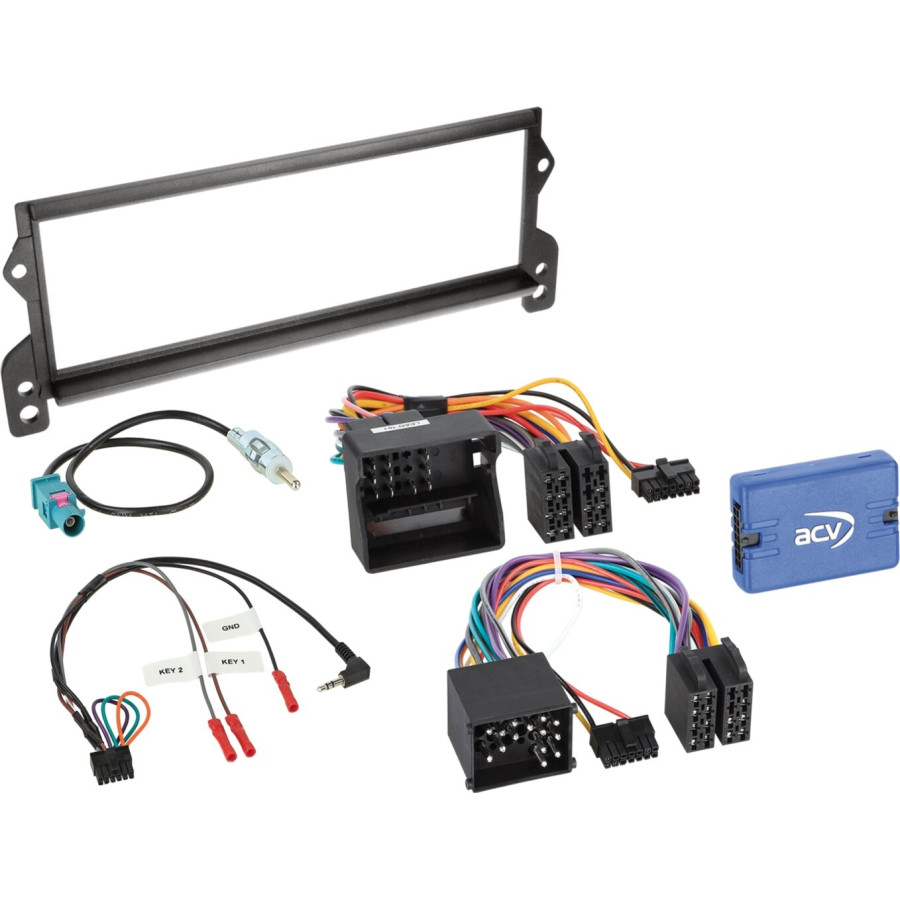

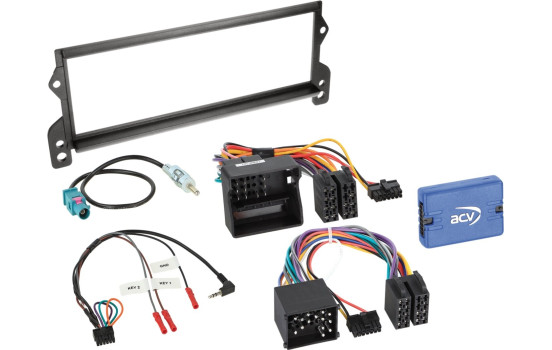

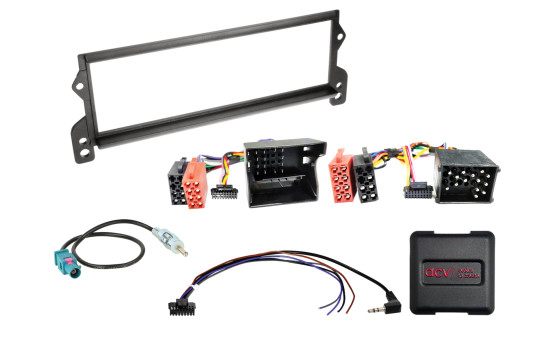

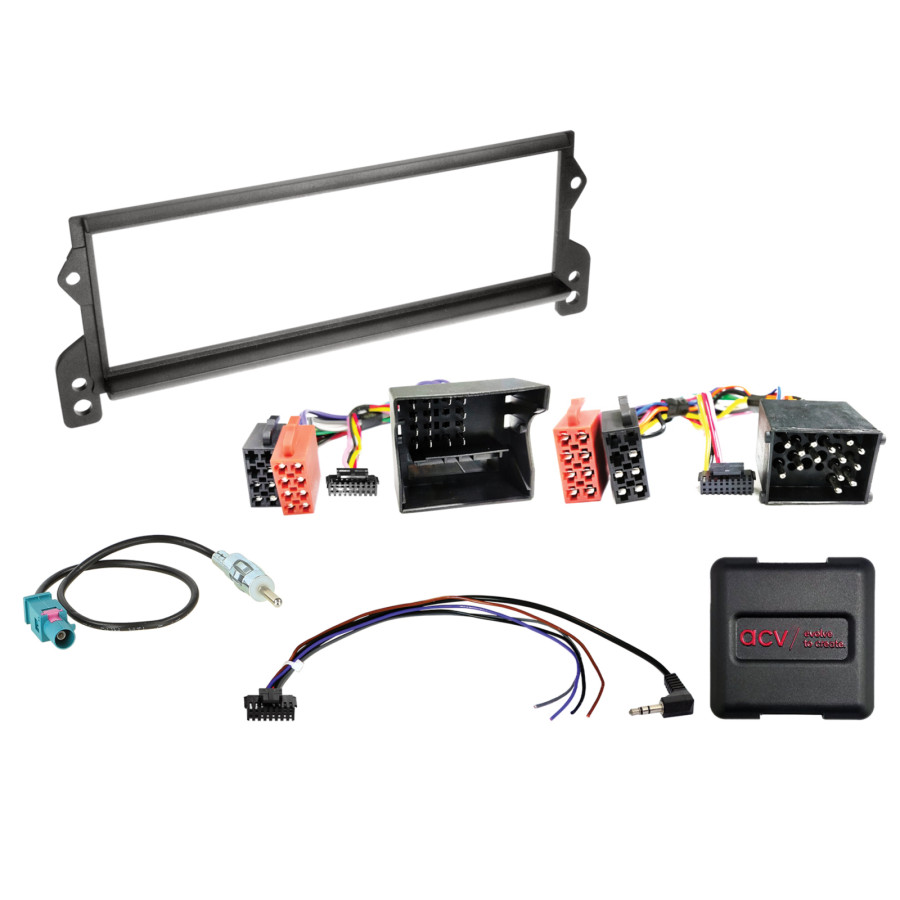

Scope of delivery:

1-DIN RB BMW Mini (R50 / R52 / R53) black loose > Part>: 281023-02-0
SWI BMW/Mini various vehicles 17Pin/Quadlock IBus > Part: 42sbm00c-0
SWI cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) passive: Article: 1524-01-0

Connection cable for the following radio manufacturers:

Alpine connection: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multi

Suitable for:
Mini Cooper 2001-2008 (R5-)

---

Colour	Black
application	Ready
Size	1-DIN
Guarantee	2 years
