2-DIN Kit Audi A4 2000 >2009

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Audi A4 B6 (8E) 10/2000 - 11/2004
Sedan
Audi A4 B6 (8E) 09/2001 - 11/2004
Avant
Audi A4 B6 (8H) 04/2002 - 01/2006
Convertible
(B6 with Symphony Radio and Navigation Plus)
Audi A4 B7 (8E) 11/2004 - 09/2007
Sedan
Audi A4 B7 (8E) 11/2004 - 03/2008
Avant
Audi A4 B7 (8H) 01/2006 - 02/2009
Convertible
(B7 with Chorus 2+/Concert 2+/BNS 5.0 and RNS-E)

Seat Exeo (3R/3RN) 03/2009 ->
Notch
Seat Exeo (3R/3RN) 06/2009 ->
Station wagon

Color: black

Audi adapter for steering wheel remote control

Retain the original steering wheel control functions when replacing the factory radio with a retrofit radio.

Depending on the vehicle equipment and the range of functions and software of the retrofitted device, individual operating functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and ensure they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel controls are working properly.

CAN bus

Connection: ISO / Mini ISO plug
Connection: 40-pin Quadlock VAG connector
Connection: 2-channel / 4-channel OEM sound system > Cinch(m) front/rear

Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 1-DIN OEM device with 2 rotary knobs
Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 2-DIN OEM device
Vehicles with RNS-E 16:9 OEM navigation

Vehicles without Bosch BNS 5.0 monochrome OEM navigation*

Retrofit devices with preamplifier output greater than 3V

Retrofit devices with preamplifier output power less than 3 V:
SWI Audi A3/A4/A6/R8/TT 40Pin Quadlock Amplifier 2/4 Channel > Item: 42sad006
SWI Audi A2/A3/A4/A6/TT ISO/Mini ISO amplifier 2/4-channel > Item: 42sad008

blue: +12V amplifier amplifier remote control

Compatible with all SWI vehicles:

SWI Audi A1/A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 Channel > Part: 42sad002
SWI Audi A2/A3/A4/A6/TT ISO/Mini ISO amplifier 2/4 channel > Part: 42sad003

The following signals are included:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

OEM Sound System 2 Channel / 4 Channel

*Vehicles with BNS 5.0 OEM Navigation SWI Audi/Seat/Skoda/VW various vehicles 40Pin Quadlock > Article: 42a-1324-001
Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasonic lead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with LFB tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

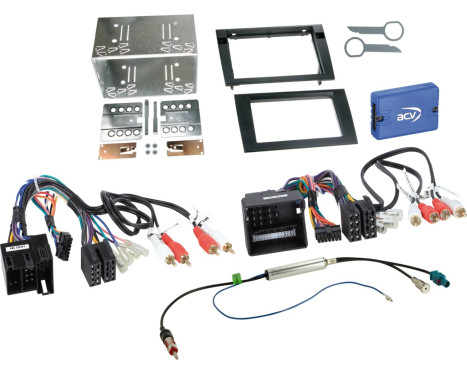

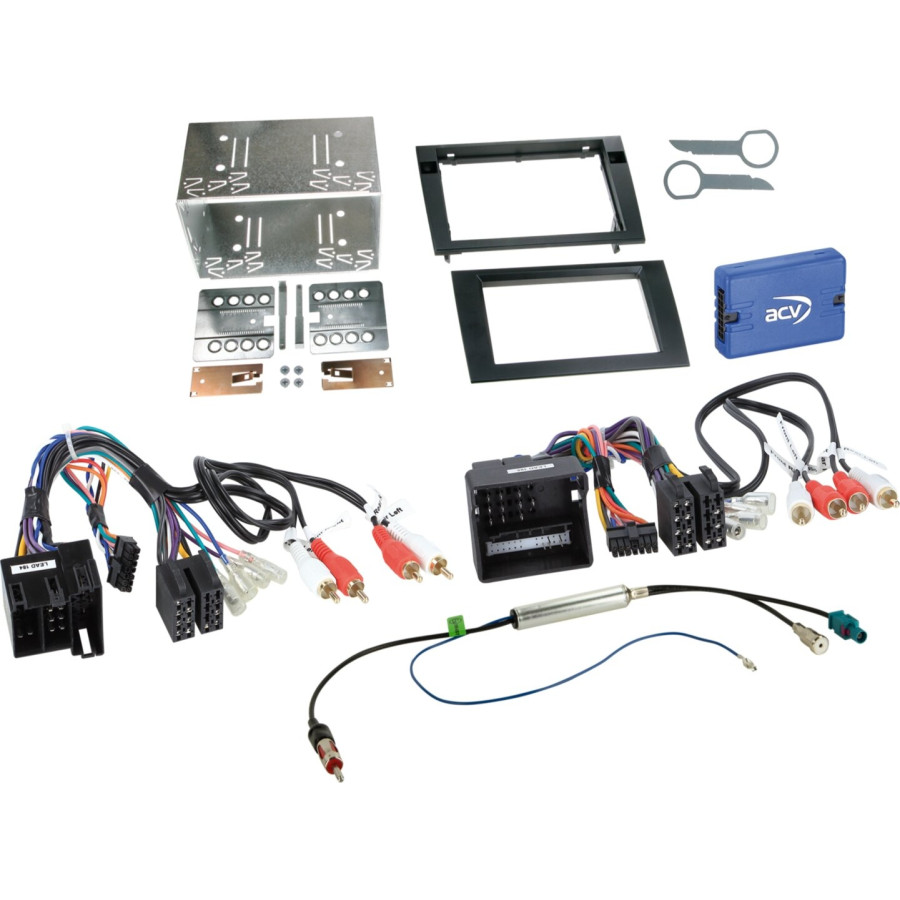

Scope of delivery:

2-DIN RB Audi A4 B6 / B7 2002 - 2009 black > Part: 281320-18-0
Antenna adapter ISO(f)/Fakra(m)>DIN(m) 12V Phantom ROKA > Part: 1524-26-1-0
SWI Audi various vehicles ISO/40Pin Quadlock Amp > Part: 42sad00c-0
SWI cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Release bracket Audi / Mercedes / Seat / Skoda / VW > Part: 181320-02-0

Suitable for:
Audi A4 2000-2009
Seat Exeo 2009-2013

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
