2-DIN Kit Audi TT(8J)

Many car manufacturers install their own vehicle-specific radios, which are visually matched to the center console.

That's why you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel control adapters, camera adapters and active system adapters are often also required.

Remark:

Radio panel with 2-DIN installation cutout

Suitable for the following vehicles:

Audi TT (8J) 04/2006 - 04/2010
Audi TT (8J) 08/2010 - 03/2014

Colour black

Optional:

Storage compartment for 2-DIN radio housings/1-DIN radio housings: 271000-05
2-DIN radio panel ISO universal/113mm x 183mm: 381320-00

Adapter for steering wheel controls Audi

Remark:

CAN bus

Connection: 40-pin Quadlock VAG connector
Connection: 2 channel / 4 channel OEM sound system > Cinch(m) front/rear

For unknown Audi connector variant > Article: 42sad00c with ISO/Mini ISO and 40 pin Quadlock wiring harness

Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 2-DIN OEM device
Vehicles with RNS-E 16:9 OEM navigation

Vehicles without Bosch BNS 5.0 monochrome OEM navigation*

Retrofit devices with preamplifier output power greater than 3V**

blue: +12V amplifier remote control

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may have incompatible features.

red: +12V ignition connection 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

OEM sound system 2 channel / 4 channel

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarion lead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasonic lead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

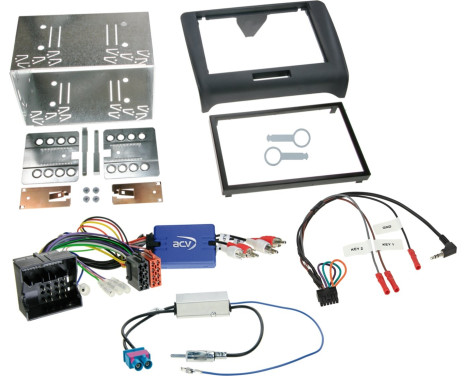

Scope of supply:

2-DIN radio panel Audi TT(8J) 04/2006-03/2014 black> Article: 381320-19-1
SWI Audi A1/A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 channel > Item: 42sad002-0
SWI cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Antenna adapter Fakra(m)(double)>DIN(m) 12V Phantom > Article: 1524-77-0
Release bracket VW / Audi / Seat / Skoda > Article: 181320-01-0

Suitable for:
Audi TT 2006-2014

---

Colour	Black
application	Installation frame
Size	2-DIN
Guarantee	2 years
