2-DIN Kit Ford C-Max / Kuga

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Remark:

Vehicles without OEM navigation with integrated climate control

Modification of the workshop tool panel necessary for some Ford vehicles

Suitable for the following vehicles:

Ford C-MAX (DXA) 11/2010 - 05/2015***
Ford C-MAX (DXA) 06/2015 - 12/2019***
Ford Kuga (DM2) 03/2013 - 01/2017**/***
Ford Kuga (DM2) 01/2017 - 12/2019*/**/***

Color: black

Installation cutout for radio display: 172 mm x 98.5 mm

*Vehicles without OEM touchscreen

Remark:

CAN bus

Connection: 24-pin Ford connector
Connection: AMP display connector > OEM display
Connection: OEM display connection > Interface
Connection: OEM AUX > Cinch(m) red/white

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display*
Vehicles with CD player under the monitor
Vehicles with SYNC > SYNC function not supported
Vehicles with OEM navigation > Interface function not compatible in some cases

Disable SYNC functions and BT before installation
SYNC emergency call function is deactivated with BT function

Avoid interference with the vehicle settings on the display:

Turn off the retrofit device
Press the voice dial button for up to 2 seconds to access the settings menu
Only perform settings as described in the BDA

In case of malfunctions in the setting mode:

Reset after CAN bus standstill

Display connection may need to be extended

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse gear signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

PDC rear supported
Supported alert tones
Vehicle settings supported

*Vehicles without OEM display LFB Ford various vehicles 24pin without **Vehicles without OEM touchscreen
***Display connection may need to be extended
***Vehicles with small display and 2 setting buttons on the right side: Date setting not supported

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasonic lead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with LFB tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

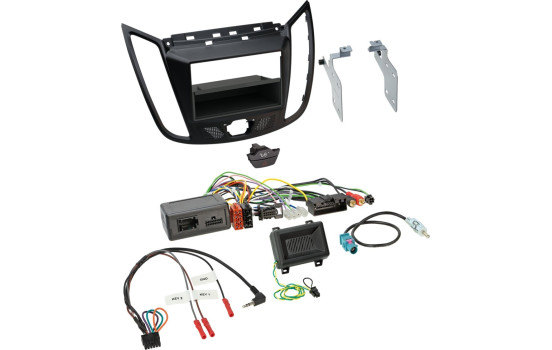

Scope of delivery:

2-DIN radio panel Ford C-MAX 2010-2019/Kuga 2013-2019 > Article: 381114-22-4
LFB Ford various vehicles 24pin/display connector > Part: 42sfo008-0
LFB cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) passive > Article: 1524-01-0
Ford alarm/central locking switch > Article: 261114-02-0

Suitable for:
Ford C-MAX 2011-2019
Ford Kuga 2013-2019

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
