2-DIN kit Mercedes Sprinter (W906) / Volkswagen Crafter

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Mercedes
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018

Volkswagen CRAFTER
Volkswagen Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
Volkswagen Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Color: black

Remark:

CAN bus

Connection: 40 pin Quadlock Mercedes plug

For unknown Mercedes connector variant > Article: 42smc00c with ISO and 40-pin Quadlock wiring harness

Vehicles with 2-DIN Audio 20 OEM device
Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Navigation

Mercedes vehicles without radio preparation
Mercedes vehicles without 1-DIN OEM device

Vehicles with Audio 50 APS Comand NTG2/ NTG2.5 OEM navigation:
Time setting not supported > Encode vehicles to Audio 20 OEM device if possible

Mercedes vehicles with Harman Kardon OEM sound system*/**

The following signals are provided:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

*Vehicles with Harman Kardon OEM sound system > Item: 13-1190-53
**Vehicles with Harman Kardon OEM sound system > Item: 13-1190-52

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasonic lead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

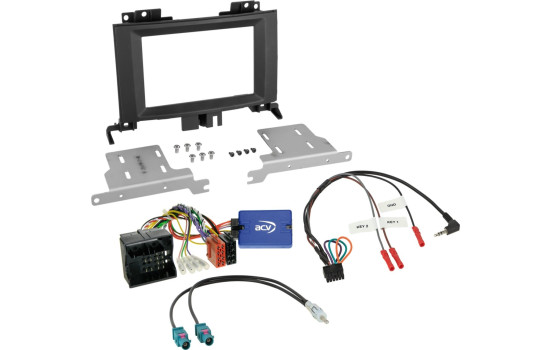

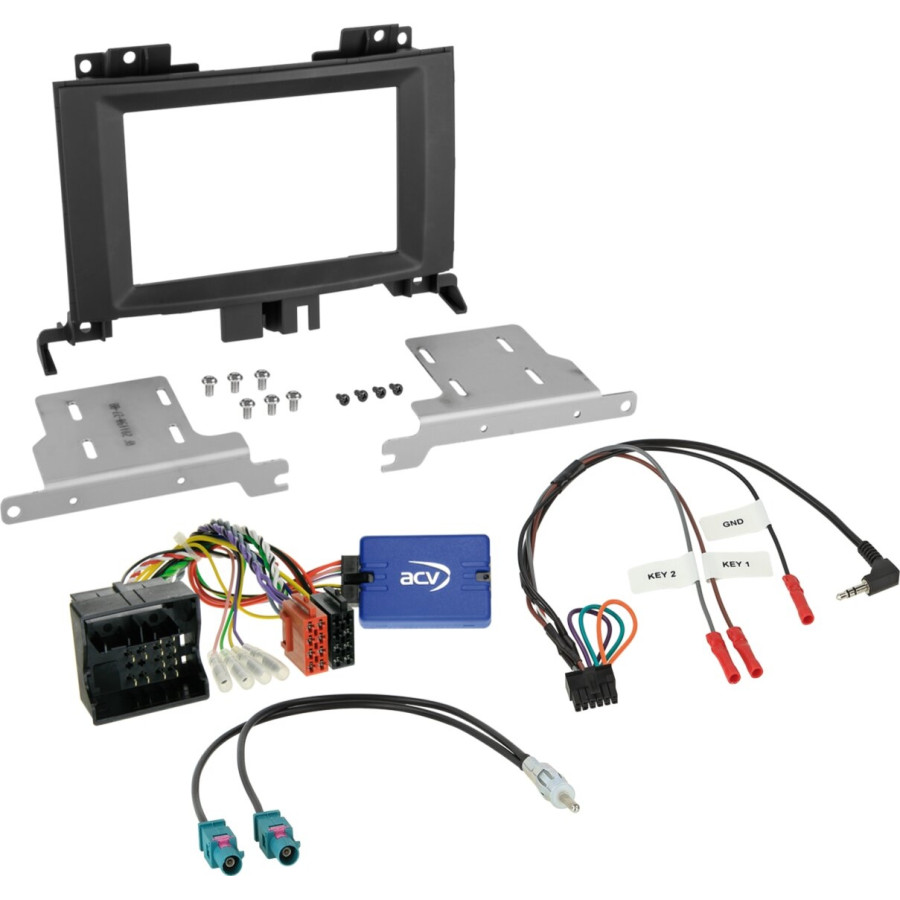

Scope of delivery:

2-DIN radio panel Mercedes Sprinter (W906)/VW Crafter I > Article: 381190-27-3
SWI Mercedes various vehicles/Smart 40Pin Quadlock > Article: 42smc001-0
SWI cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Adapter antenna Fakra(m)(2x)>DIN(m) > Article: 1524-19-0

Suitable for:
Volkswagen Crafter 2006-2016
Mercedes Benz Sprinter 2006-2018 (906)

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
