2-DIN kit Opel Astra 2010>2018

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Remark:

Vehicles with steering wheel remote control

CAN bus

Connection: 48-pin Opel connector
Connection: OEM antenna Fakra Z(m) > DIN(m)
Connection: Steering wheel remote control > 42ctmultilead3

Vehicles with CD300 / CD400 OEM device
Vehicles with monochrome OEM display

Vehicles without IntelliLink OEM navigation**
Vehicles without OEM color display**

Dip switch to activate OEM screen
Dip switch for Pioneer/Sony settings

Dip switch 1 on > Pioneer / 1 off > Sony
Dip switch 2 on > Vehicles with 2-line display / 2 > off Vehicles with 4-line display

Suitable for the following vehicles:

Opel Astra J (PJ) 12/2009 - 06/2012
Opel Astra J (PJ) 06/2011 - 08/2018

Color: pearl black

The following signals are provided:

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal
yellow/black: GND phone signal mute

Total output load capacity: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

Supported Vehicle Settings
Supported alert tones
PDC rear supported

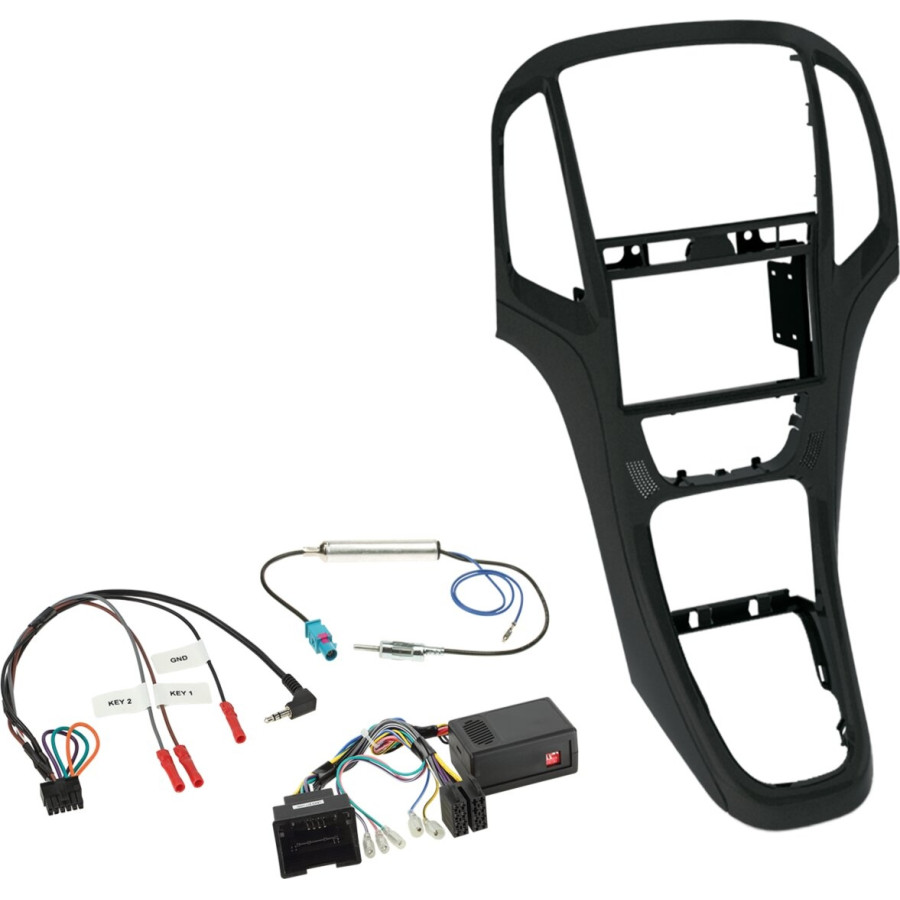

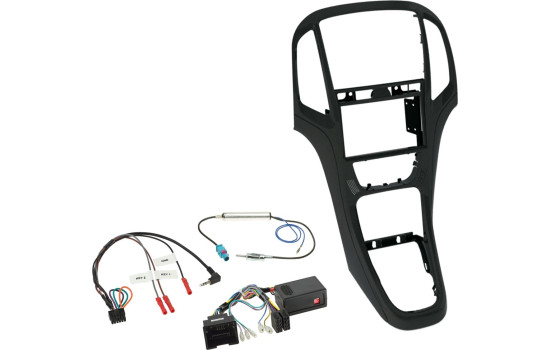

Scope of delivery:

2-DIN radio housing Opel Astra J 2009-2018 pearl black > Part: 381230-23-2
LFB Chevrolet/Opel various vehicles 48Pin Opel > Part: 42hvx01-0
LFB cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) 12V Phantom > Article: 1524-03-0

Optional:

Storage compartment for 2-DIN radio housings screw mounting > Item: 271000-07
INBAY® storage compartment for 2-DIN radio housings screw mounting > Article: 241000-07-1

Suitable for:
Opel Astra 2010-2018

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
