2-DIN Kit Opel Corsa D piano-black

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Opel Corsa D (SD) 10/2006 - 10/2014
2/3 door / 4/5 door
(CATCH ME - CATCH ME Now - Color Edition - Color Line - Color Race - Color Stripes - Cosmo - Edition - Edition 111 years - ENERGY - INNOVATION - INNOVATION 110 years - Limited Edition - NAVI - OPC - OPC-Nürburgring Edition)

Color: Piano lacquer/black

Remark:

CAN bus

Connection: 40-pin Quadlock Opel plug

Vehicles with OEM device CD30 / CD30 MP3 / CDC40 / CD50 / CD70 / DVD90

Loose cable connection:
red: +12V ignition current terminal 15 fuse box fused
black: ground terminal 31

Vehicle settings supported (see BDA)

Vehicles with interface failure after a long period of use:

1: Connect OEM device
2: Establish CAN bus standstill
3: Alternative CAN bus branch: 32-pin OEM display plug Can High / Can Low > Pin 20 / Pin 23
4: Alternative CAN bus branch: Comfort CAN to climate control system

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

Supported Vehicle Settings

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

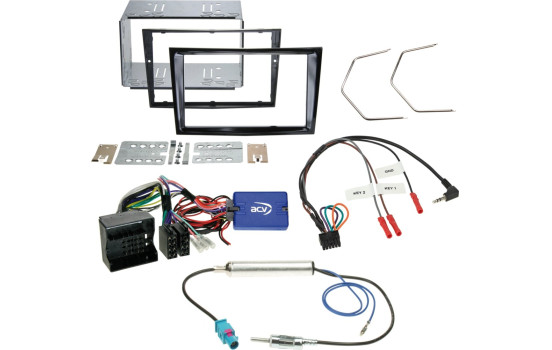

Scope of delivery:

2-DIN RB Opel Astra / Corsa D / Zafira piano black > Art.: 381230-24-3
SWI Opel Corsa D 2008-2014 40Pin Quadlock/support voltage > Part: 42svx003-0
SWI cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) 12V Phantom > Part: 1524-03-0
Unlocking bracket Opel 1 1/2 ISO > Article: 181230-01-0

Suitable for:
Opel Corsa 2007-2014

---

Colour	Black
application	Ready
Size	2-DIN
Guarantee	2 years
