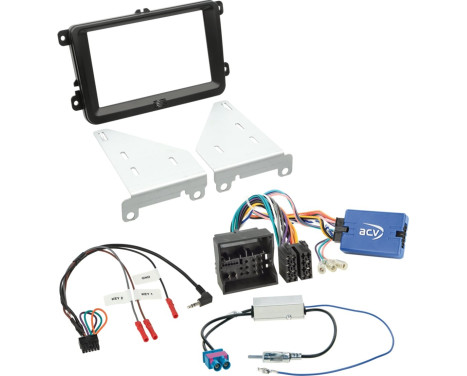

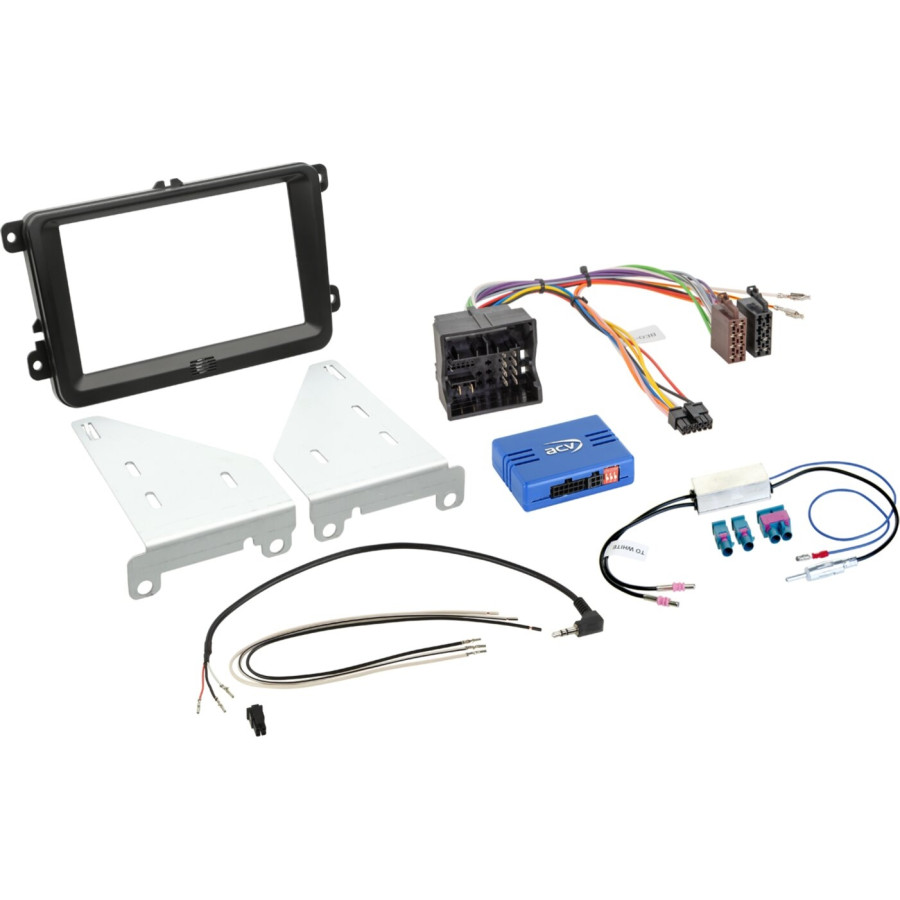

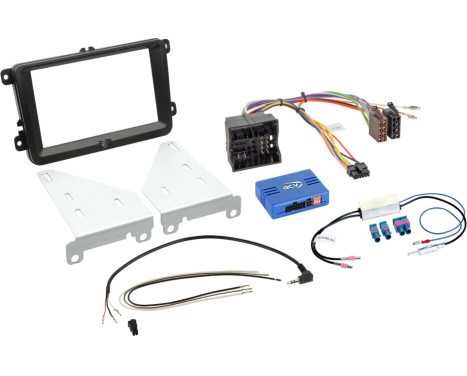

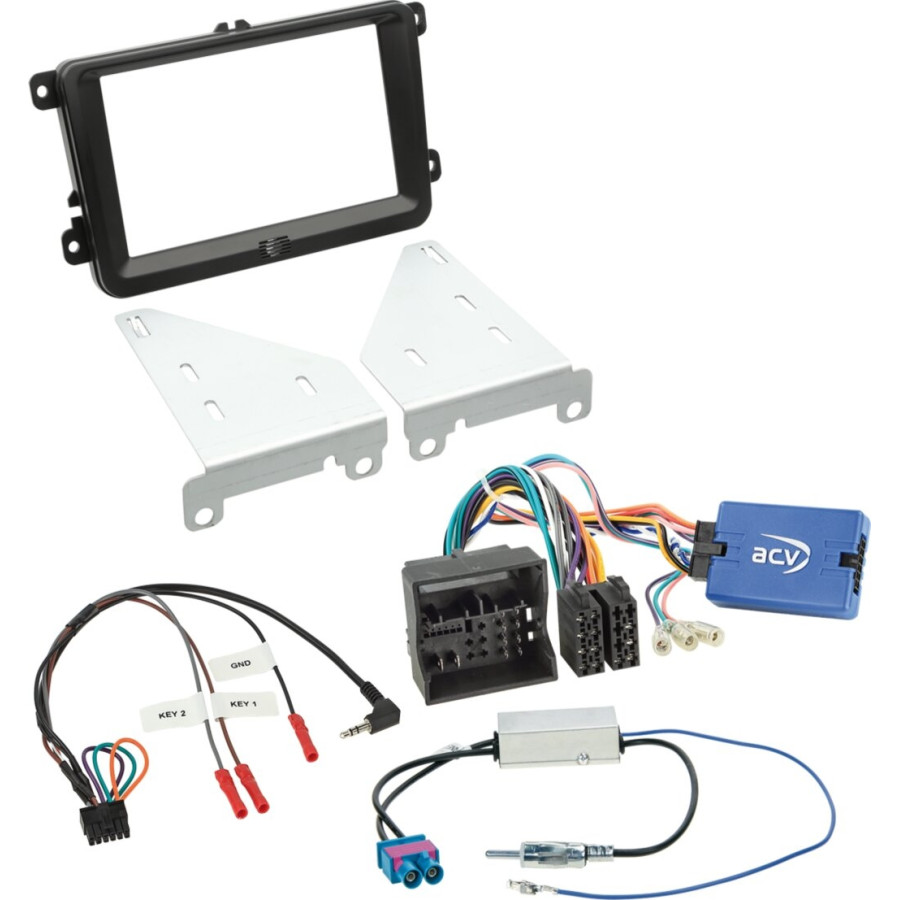

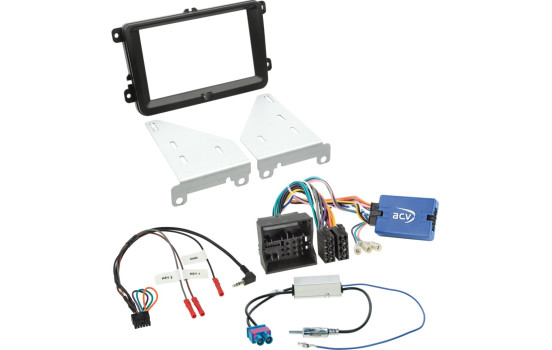

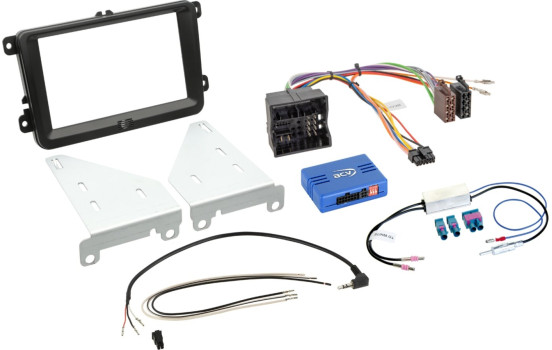

2-DIN Kit Volkswagen - Seat - Skoda black
ACV premium quality
Many car manufacturers install their own vehicle-specific radios, which are optically adapted to the center console. Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio. In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.
Seat
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04/2009 - 11/2012
Seat Toledo (NH) 03/2013 - 05/2015
Skoda
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009*
Skoda Octavia (1Z) 01/2009 - 03/2013**
Skoda Rapid (NH) 10/2012 - 04/2015***
Skoda Rapid (NH) 04/2015 - 05/2017***
Skoda Rapid (NH) 05/2017 - 02/2019***
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Praktik (5J) 09/2006 - 04/2010
Skoda Praktik (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013****
Skoda Superb (3T) 06/2013 - 05/2015****
Skoda Yeti (5L) 08/2009 - 10/2013*****
Skoda Yeti (5L) 10/2013 - 07/2017*****
VW
VW Amarok (2H) 07/2010 - 08/2016
VW Amarok (2H) 09/2016 - 07/2020
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caddy IV (DU) 06/2015 - 09/2020
VW Caravelle (7H) 09/2009 - 05/2015
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW EOS (1F) 05/2006 - 10/2010
VW EOS (1F) 10/2010 - 04/2015
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta V (1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 09/2009 - 05/2015
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW Sharan II (7N) 07/2015 - 10/2021
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran I (1T) 01/2003 - 09/2006
VW Touran I (1T) 11/2006- 04/2010
VW Touran I (1T) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015
VW T6 (7HC) 07/2015 - 08/2019******
Color: black
Radio display installation recess: 172 mm x 98.5 mm
*Vehicles with Amundsen / Columbus / Nexus OEM navigation system
**Vehicles with Bolero / Swing OEM device > Skoda OEM navigation panel Part number: depending on equipment
***Skoda OEM panel > Skoda part number: 5JA858 415 9B9
****Vehicles with Amundsen / Columbus OEM navigation
****Vehicles with Bolero / Swing OEM interior > Skoda OEM navigation panel Part number: 3TO8580691QB
*****Skoda OEM cover > Skoda part number: 5L0858069L1 QB
******OEM Center Device Cover Adjustment with Workshop Tools
Remark:
CAN bus
Connection: 52-pin Quadlock VAG connector
MAN / Seat / Skoda / VW vehicles with MIB-PQ platform
Vehicle settings not supported
E-Call not supported
Vehicles with E-Call:
E-Call maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock > Article: 1424-28
Vehicles with reversing camera:
Reversing camera adapter OEM VW various vehicles MIB-PQ > Item: 771324-1037
The following signals are provided:
Re-importing vehicles or vehicles with different software may be incompatible in features.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal
Total output load: 100 mA max.
Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.
Steering wheel remote control
Skoda Citigo (AA) 05/2017 - 06/2019*
Skoda Citigo iv (AA) 01/202 - 08/2021*
VW Amarok (2H) 09/2016 - 07/2020**
VW T6 (7HC) 07/2015 - 08/2019***
VW UP! (AA) 07/2016 - 12/2020****
*Vehicles with LG Anatel L169SK2 OEM device.
**Vehicles with OEM device including CD drive
***Vehicles without Composition Audio MIB Entry OEM device with AUX/SD/USB in front
***Vehicles with Composition Audio MIB Entry OEM device with Front AUX/SD/USB > Item: 42a-1324-001
****Vehicles without OEM sound system
| Colour | Black |
| application | Ready |
| Type | 2-DIN |
| Guarantee | 2 years |
| SEAT |
|
||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKODA |
|
||||||||||||||||||||||||||||||||||
| VOLKSWAGEN |
|
