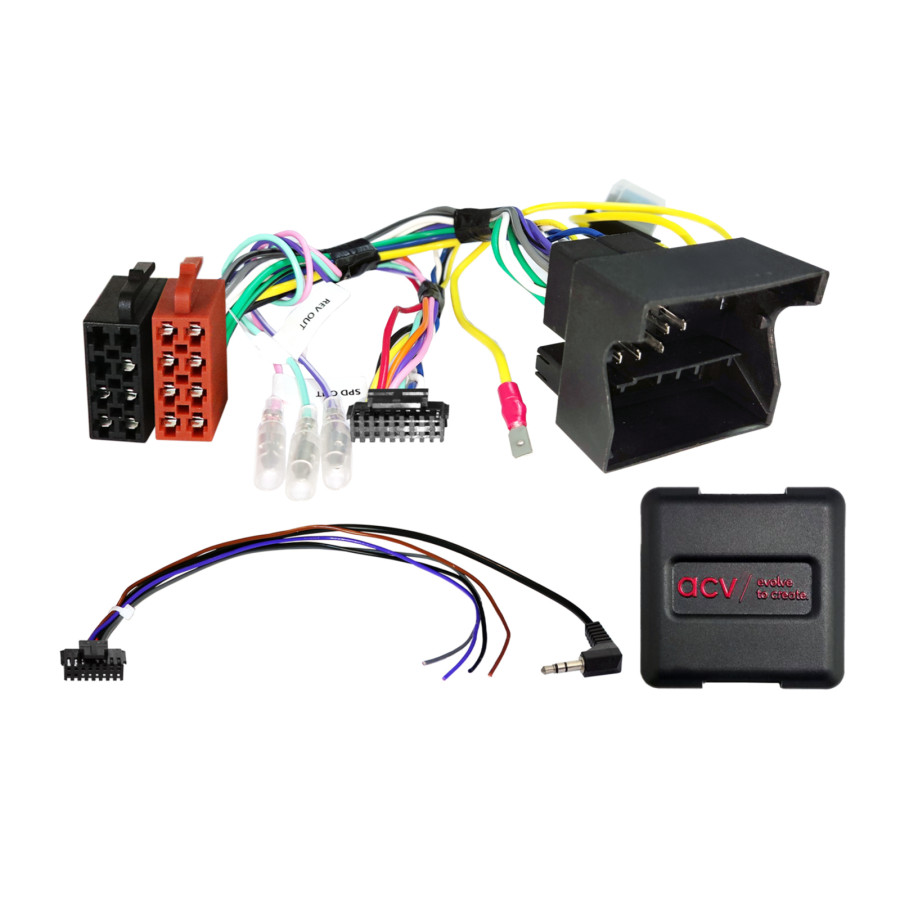

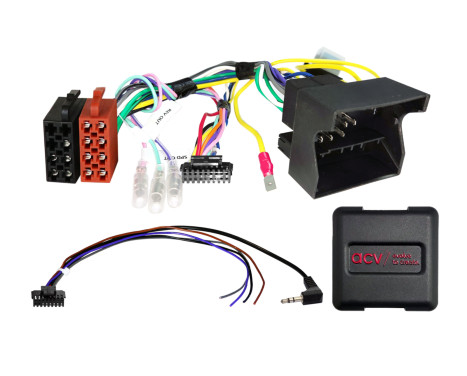

SWI BMW/Mini Vehicles 40Pin Quadlock Multilead CAN Bus (42sbm005)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 40-pin Quadlock BMW connector
Connection: +12V continuous current yellow clamp 30 battery fused

Vehicles with Business Professional OEM device

Vehicles without iDrive
Vehicles without OEM MOST sound system*

PDC / warning sounds not supported**

Suitable for the following vehicles:

BMW 1 Series (E81/E82/E87/E88) 03/2004 - 10/2013*
BMW 3 Series (E90/E91/E92/E93) 03/2005 - 10/2013*
BMW 5 Series (E60/E61) 07/2003 - 07/2010*
BMW 6 Series (E63/E64) 09/2004 - 11/2010
BMW 7 Series (E65/E66) 08/2001 - 11/2008
BMW Z4 (E89) 05/2009 - 08/2016
BMW X1 (E84) 10/2009 - 06/2015
BMW X5 (E70) 03/2007 - 09/2013*
BMW X6 (E71/E72) 05/2008 - 06/2014*

BMW Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015***

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with OEM MOST sound system LFB BMW 1 Series/3 Series/5 Series/X5/X6 Quadlock Multilead MOST Amp > Article: 42xbm012
*Optional active system adapter BMW MOST>Cinch > Article: 13-1024-51
**Vehicles with PDC rear LFB BMW/Mini various vehicles 40-pole Quadlock/PDC > Article: 42a-1024-009
**Optional warning tone interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo > Item: can-pdc
***OEM speedometer display not supported

Suitable for:
BMW 1 Series 2004-2013 (E8-)
BMW 3 Series 2006-2013 (E9-)
BMW 5 Series 2004-2010 (E6-)
BMW 6 Series 2003-2010 (E3-)
BMW 6 Series 2003-2010 (E6-)
BMW 7 Series 2001-2008 (E6-)
Mini Cooper 2006-2013
BMW Z4 2009 2016 (E8-)
BMW X1 2009-2020 (E8-)
BMW X5 2007-2013 (E7-)
BMW X6 2008-2014 (E7-)

---

Guarantee

2 years
